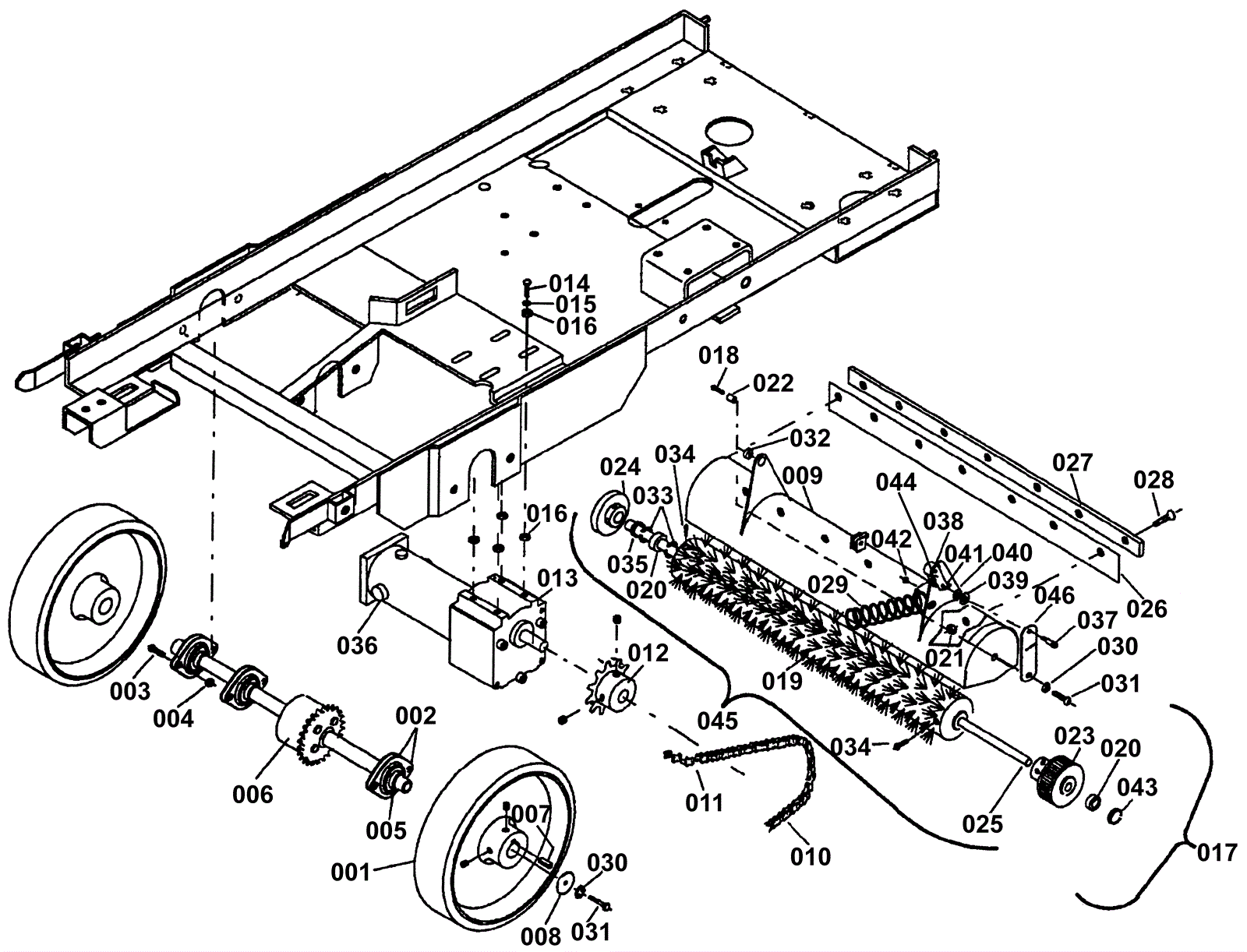

VOYAGER 2 Drive and Brush Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-0396 Wheel 10 x 2 1/2 bore $272.80 2 usually ships 1-5 days
002 173-0397 Bearing flangette (pkg of 2) $34.32 3 usually ships 1-5 days
003 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $0.99 4 ships same day
004 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
005 173-0398 Bearing 1 inch bore $72.74 3 usually ships 1-5 days
006 173-0399 Differntial $407.81 1 usually ships 1-5 days
007 173-0518 Key 1/4 x 1/4 x 2 1/2 $2.11 2 usually ships 1-5 days
008 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
009 173-0519 Brush housing $328.90 1 usually ships 1-5 days
010 173-0520 Chain $17.49 1 usually ships 1-5 days
011 173-1065 Master link #40 1/2 chain $6.55 1 usually ships 1-5 days
012 173-0521 Sprocket 11 tooth $14.41 1 usually ships 1-5 days
013 173-0522 Motor assembly $1,507.00 1 usually ships 1-5 days
014 999-1143 Bolt 5/16-24 x 3/4 hex head stainless steel $1.01 4 ships same day
015 999-0548 Washer 5/16 external star lock stainless steel $0.99 4 ships same day
016 173-2483 Washer 1/4ID x 3/4OD plated $0.99 8 usually ships 1-5 days
017 173-0523 Housing assembly $1,276.00 1 usually ships 1-5 days
018 173-0524 Screw 3/8-16 x 3/4 button head machine $4.96 2 usually ships 1-5 days
019 173-0525 Brush (OBSOLETE) $244.20 1 usually ships 14-22 days
020 173-2030 Shielded bearing (OBSOLETE) $58.30 2 usually ships 14-22 days
021 173-2472 Nut 10-32 with star washer $0.99 7 usually ships 1-5 days
022 173-0526 Spacer $25.08 2 usually ships 1-5 days
023 173-0527 Brush pulley $100.65 1 usually ships 1-5 days
024 173-0528 Brush core cover $18.81 1 usually ships 1-5 days
025 173-0529 Brush drive axle $138.60 1 usually ships 14-22 days
026 173-0530 Splash guard $92.40 1 usually ships 1-5 days
027 173-0531 Splash guard retainer $43.01 1 usually ships 1-5 days
028 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 7 ships same day
029 173-0532 Extension spring $53.54 1 usually ships 14-22 days
030 999-0017 Washer 1/4 external star lock $0.99 4 ships same day
031 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 4 ships same day
032 173-2337 1/2 cylinder bearing $6.16 2 usually ships 14-22 days
033 173-1059 Snap ring $1.98 2 usually ships 14-22 days
034 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 8 ships same day
035 173-0533 Tolerance ring $11.88 1 ships same day
036 173-0534 Brush set $69.44 1 usually ships 14-22 days
037 999-0552 Bolt 5/16-18 x 1 1/2 hex head stainless steel $1.45 1 ships same day
038 173-0536 Pulley assembly $211.20 1 usually ships 1-5 days
040 999-1007 Washer 3/8 x 1/16 flat nylon $0.99 1 ships same day
041 173-2178 Compression spring $5.20 1 usually ships 14-22 days
042 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
043 173-2263 Internal snap ring 1-1/8 $2.97 1 usually ships 14-22 days
044 999-1053 Washer 5/16 internal star lock stainless steel $0.99 1 ships same day
045 173-0537 Brush assembly $643.50 1 usually ships 1-5 days
046 173-0538 Pulley plate $38.39 1 usually ships 1-5 days
