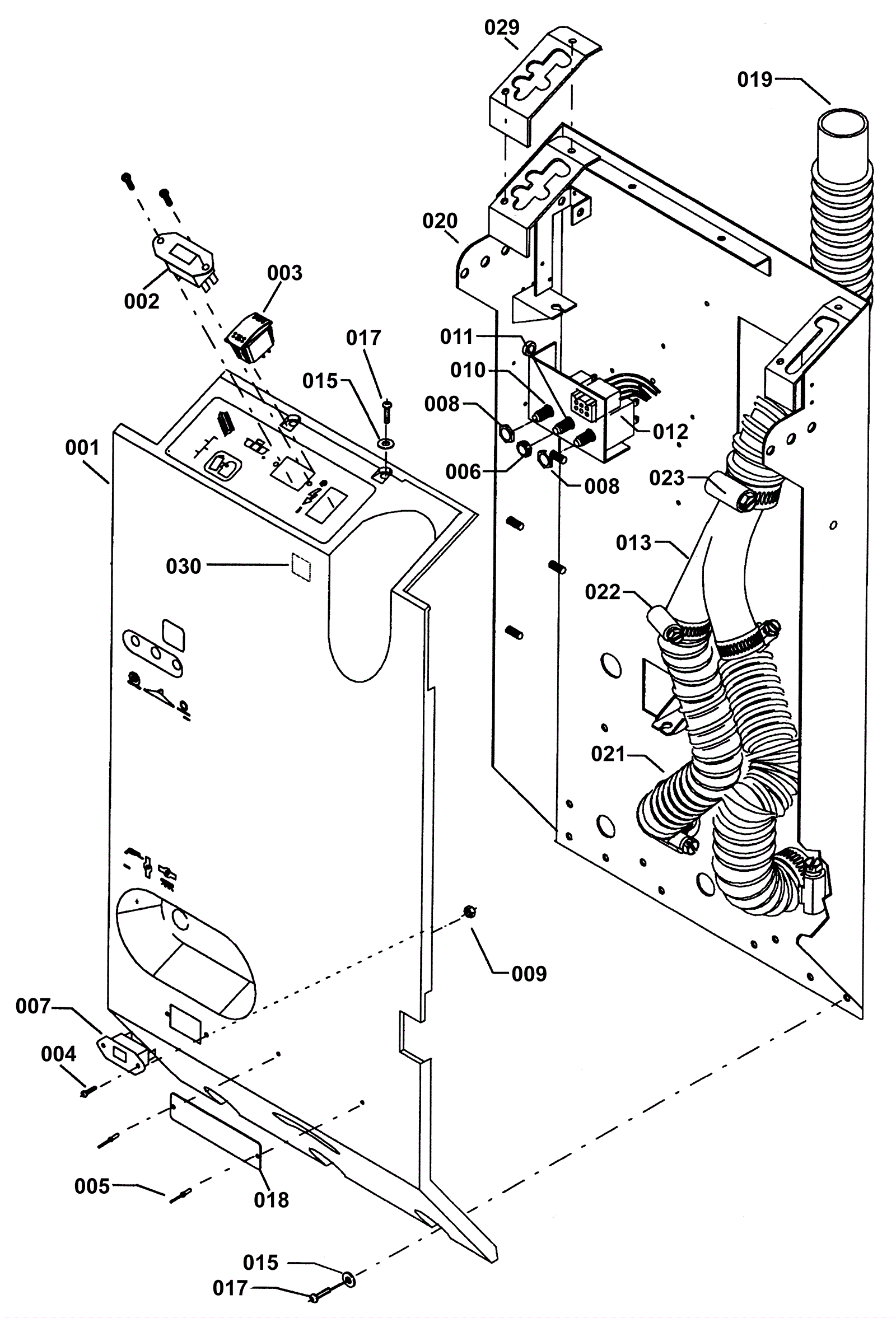

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
173-0387
|
Rear cover |
1 |
|
|
002 |
173-1159
|
36V battery charge meter |
1 |
|
|
003 |
189-0319
|
2 position rocker switch |
2 |
|
|
004 |
999-0447
|
Screw 6-32 x 1/2 pan head phillips zinc plated |
2 |
|
|
005 |
173-2046
|
Rivet |
1 |
|
|
006 |
173-3892
|
Nut 7/16-28 panel (OBSOLETE) |
1 |
|
|
007 |
173-1900
|
DC hour meter |
2 |
|
|
008 |
173-5074
|
Nut 3/8-27 dress panel |
2 |
|
|
009 |
173-2522
|
Nut 6-32 with star washer |
1 |
|
|
010 |
173-0388
|
Breaker 16 amp |
1 |
|
|
011 |
173-1795
|
breaker |
1 |
|
|
012 |
189-4092
|
15amp circuit breaker |
1 |
|
|
013 |
173-0389
|
Y fitting modified adapter |
1 |
|
|
014 |
173-0412
|
Squeegee strap latch |
1 |
|
|
015 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
017 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
4 |
|
|
018 |
173-2710
|
Data decal plate |
1 |
|
|
019 |
173-0390
|
Hose vac |
1 |
|
|
020 |
173-0391
|
Rear frame |
1 |
|
|
021 |
173-0392
|
Hose |
2 |
|
|
022 |
997-2000
|
Hose clamp |
4 |
|
|
023 |
997-2007
|
Hose clamp |
1 |
|
|
026 |
173-0419
|
Clevis pin (OBSOLETE) |
1 |
|
|
028 |
173-0393
|
Handle adjustment tube |
1 |
|
|
029 |
173-0394
|
Adjustment plate kit |
1 |
|
|
030 |
173-1282
|
For safety decal |
1 |
|
|
N/S |
173-1529
|
Windsor service card (OBSOLETE) |
1 |
|
|
N/S |
173-1530
|
Service card band |
1 |
|
|
