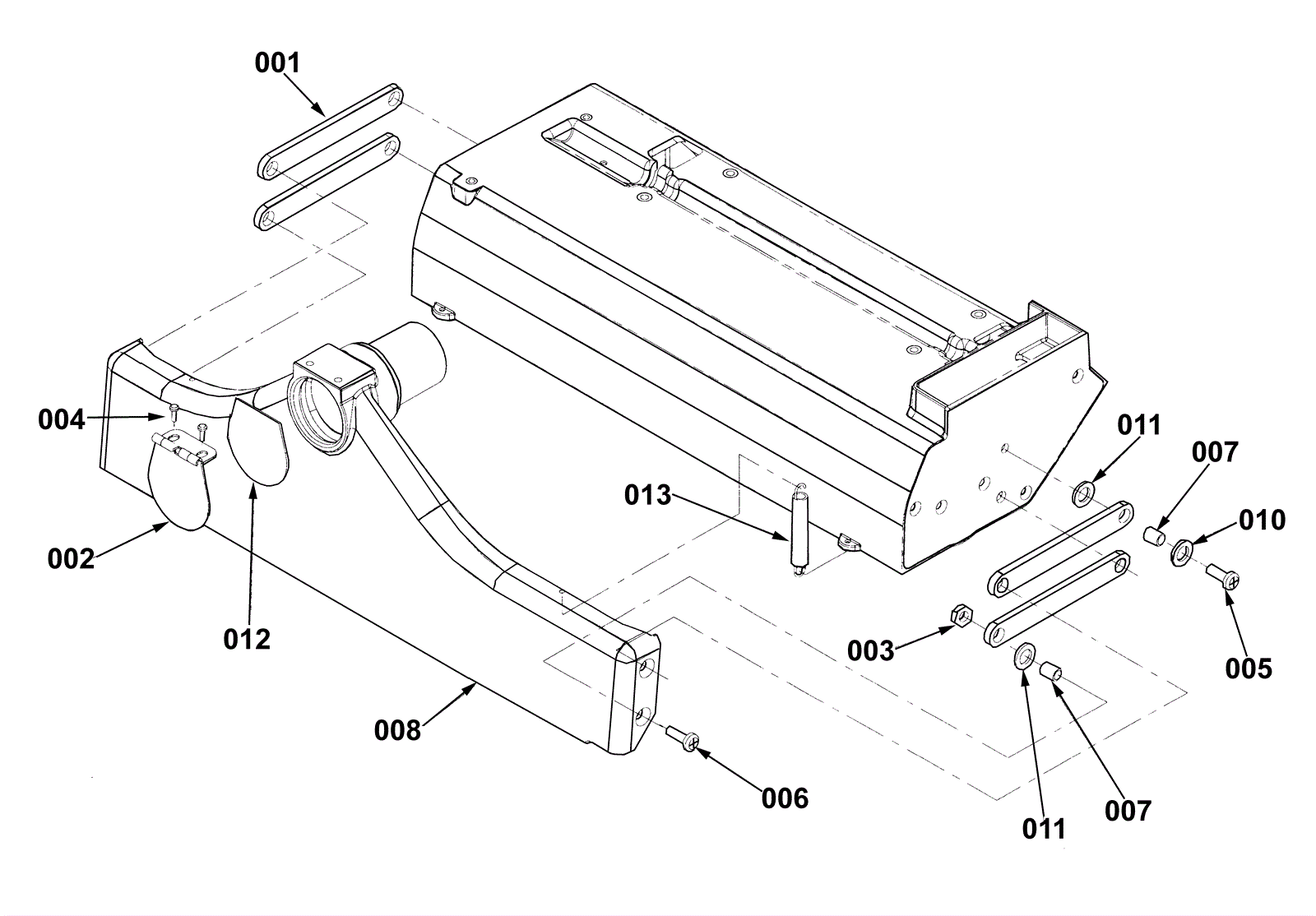

CLIPPER CLP12 Vacuum Shoe Assembly

#PartDescription ReqNotesAvailability
001 173-2137 Parallel arm 4 usually ships 14-20 days
002 189-4204 Accessory port cover 1 usually ships 13-20 days
003 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4 usually ships 11-14 days
004 173-2549 Bolt 10-32 x 3/8 hex head thread rolling with star washer 2 usually ships 14-20 days
005 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated 4 usually ships 11-14 days
006 999-1345 Screw 1/4-20 x 1 flat head phillips stainless steel 4 usually ships 11-14 days
007 189-4140 Spacer 8 usually ships 13-20 days
008 173-2254 18 inch vacuum shoe 1 usually ships 14-20 days
010 999-0123 Washer 1/4 SAE flat zinc plated 4 usually ships 11-14 days
011 999-1053 Washer 5/16 internal star lock stainless steel 8 usually ships 11-14 days
012 189-4141 Accessory port gasket 1 usually ships 13-20 days
013 173-2255 Extension spring 2 usually ships 14-20 days
