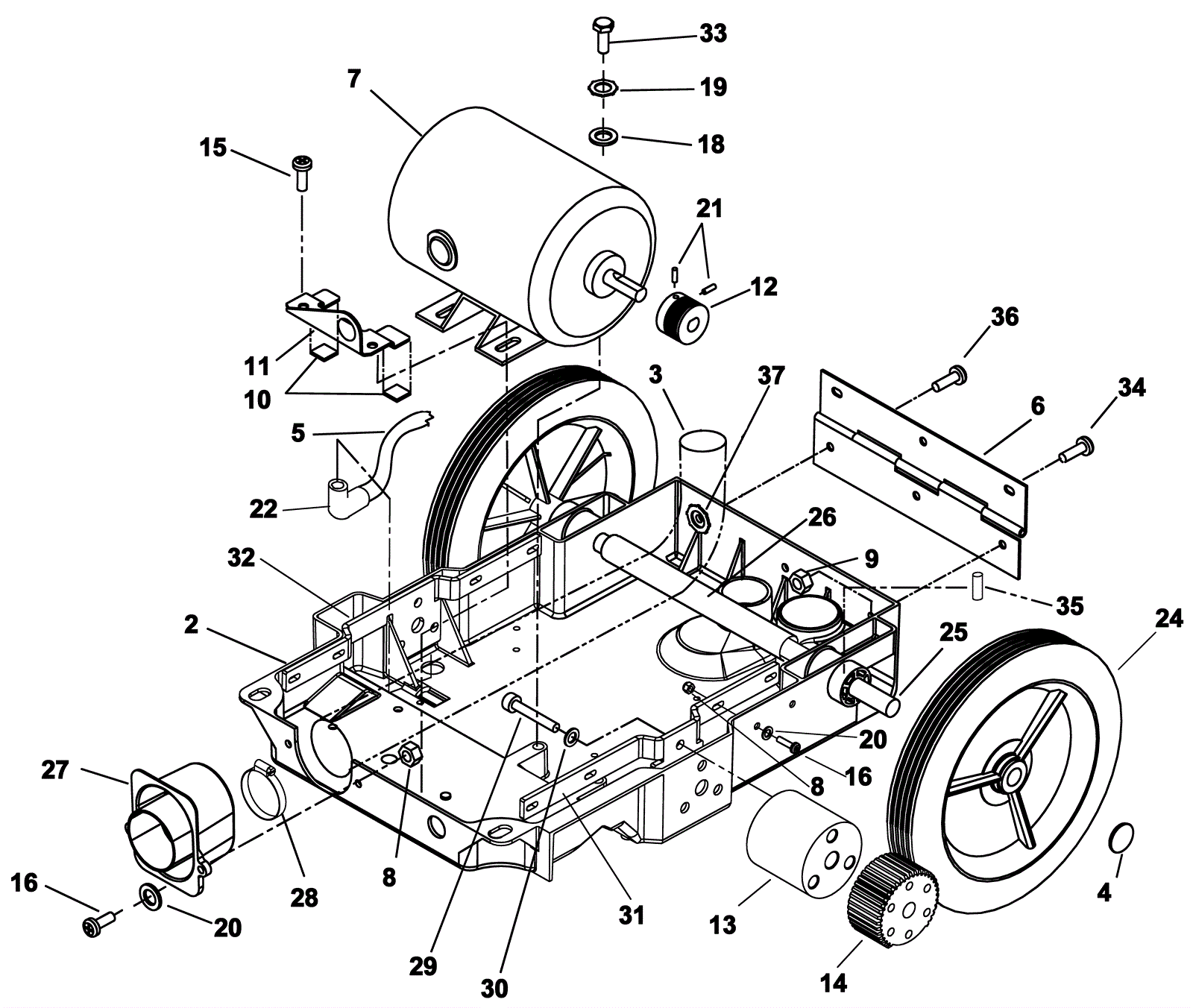

CLIPPER CLP12 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
002 173-2143 Frame $249.00 1 usually ships 1-5 days
003 189-4175 Vacuum hose 1 1/2 x 15 1/2 inch $135.38 1 usually ships 11-24 days
004 173-2064 Axle cap $4.50 2 usually ships 7-19 days
005 173-2180 Main harness $220.00 1 usually ships 7-19 days
006 173-2192 Hinge $117.00 1 usually ships 7-19 days
007 189-4148 120V brush motor assembly $441.00 1 usually ships 7-19 days
008 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 10 ships same day
009 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
010 173-2194 Foam tape $3.60 2 usually ships 7-19 days
011 173-2195 Clamping plate $20.60 1 usually ships 1-5 days
012 173-2196 Pulley $77.00 1 usually ships 7-19 days
013 173-2197 Handle pivot spacer $129.00 2 usually ships 7-19 days
014 173-2198 40 tooth gear $66.50 2 usually ships 7-19 days
015 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel $1.28 2 ships same day
016 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 10 ships same day
018 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
019 999-0017 Washer 1/4 external star lock $0.99 2 ships same day
020 999-0998 Washer #10 flat stainless steel $0.99 10 ships same day
021 999-0944 Screw 10-32 x 1/4 cup point socket set alloy plain finish $0.99 2 ships same day
022 173-2199 90 degree strain relief $1.54 1 usually ships 1-5 days
024 273-4000 10 inch gray wheel $120.02 2 usually ships 7-19 days
025 173-2200 Axle $46.90 1 usually ships 1-5 days
026 173-2201 Heat shrink $9.45 10 usually ships 1-5 days
027 189-4247 Frame and tank seal $172.03 1 usually ships 11-24 days
028 273-5693 Hose clamp $2.58 1 ships same day
029 173-2552 Bolt 5/16-18 x 3 1/2 plated socket cap $5.20 6 ships same day
030 999-0028 Washer 5/16 split lock plain finish $0.99 6 ships same day
031 173-2204 Right handle support bracket $97.00 1 usually ships 1-5 days
032 173-2205 Left handle support bracket $105.00 1 usually ships 1-5 days
033 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
034 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated $0.99 2 ships same day
035 173-2206 Roll pin $1.43 1 usually ships 7-19 days
036 999-0298 Bolt 1/4-20 x 1 1/4 hex head stainless steel $0.99 1 ships same day
037 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 3 ships same day
