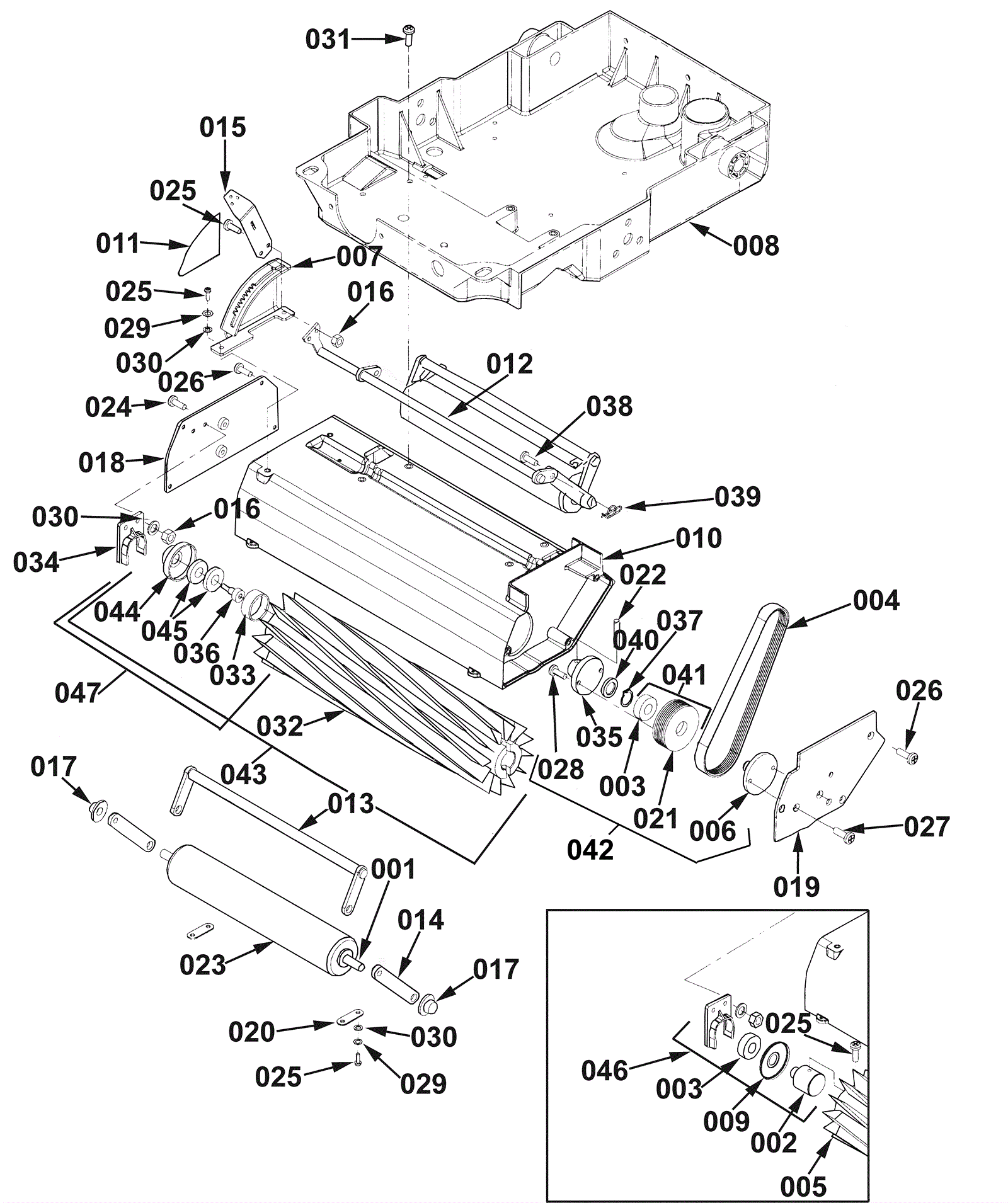

CLIPPER CLP12 Brush Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-2061 Roller axle $34.90 1 usually ships 7-19 days
002 189-4220 Brush bearing adapter $121.02 1 usually ships 11-24 days
003 173-2030 Shielded bearing $53.00 2 usually ships 7-19 days
004 173-2139 Belt $67.01 1 usually ships 7-19 days
006 189-4222 Pulley bracket $166.03 1 usually ships 11-24 days
007 173-2142 Brush height bracket $28.30 1 usually ships 7-19 days
008 173-2143 Frame $249.00 1 usually ships 1-5 days
009 189-4152 Threaded guard $30.42 1 usually ships 11-24 days
010 173-2145 Brush housing (18 inch) (OBSOLETE) $178.03 1 usually ships 7-19 days
011 173-6407 Brush height decal $55.50 1 usually ships 7-19 days
012 173-2147 Brush height linkage assembly $90.18 1 usually ships 7-19 days
013 173-2148 Roller support linkage assembly $51.00 1 usually ships 7-19 days
014 173-2149 Front roller link $30.60 2 usually ships 7-19 days
015 173-2150 Height adjustment lever $30.60 1 usually ships 7-19 days
016 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 4 ships same day
017 173-2535 Nut 3/8 push $0.90 2 ships same day
018 173-2151 Right brush housing plate $78.50 1 usually ships 7-19 days
019 173-2152 Left brush housing plate $85.50 1 usually ships 7-19 days
020 173-2153 Axle retainer plate $37.00 2 usually ships 7-19 days
021 173-2154 Pulley $117.00 1 usually ships 1-5 days
022 173-2880 Roll pin $2.42 1 usually ships 7-19 days
023 173-2155 Brush roller $68.01 1 usually ships 7-19 days
024 999-0087 Screw 10-32 x 5/8 flat head slotted zinc plated $0.99 2 ships same day
025 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 8 ships same day
026 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel $0.99 7 ships same day
027 999-0417 Screw 10-24 x 3/4 flat head slotted zinc plated $0.99 2 ships same day
028 999-0322 Screw 10-24 x 1/2 socket head alloy plain finish $0.99 2 ships same day
029 999-0311 Washer #10 external star lock zinc plated $0.99 4 ships same day
030 999-0998 Washer #10 flat stainless steel $0.99 6 ships same day
032 173-2843 18 inch brush $154.03 1 (After SN 1000090717) usually ships 7-19 days
033 173-5220 Tolerance ring 7/8 inch $2.15 1 (After SN 1000090717) ships same day
034 189-4155 Bearing clip $7.80 1 ships same day
035 189-4234 Brush driver $3.36 1 usually ships 11-24 days
036 999-1392 Bolt 3/8 x 3/8 shoulder stainless steel $12.45 1 (After SN 1000090717) ships same day
037 173-1059 Snap ring $1.80 1 usually ships 7-19 days
038 173-2158 Clevis pin (OBSOLETE) $5.00 2 usually ships 7-19 days
039 173-1130 Cotter ring $2.20 2 usually ships 7-19 days
040 189-4238 Spacer $2.16 1 usually ships 1-5 days
041 189-4239 Brush pulley assembly $220.07 1 (includes 003, 021) usually ships 11-24 days
042 189-4156 Brush driver assembly $844.40 1 (includes 003, 006, 021, 028, and 035) ships same day
043 173-2162 Brush assembly $266.53 1 (includes 032, 033, 036, 044, and 045) usually ships 7-19 days
044 173-5223 Brush bearing adapter $34.70 1 ships same day
045 173-5224 Bearing $37.80 2 usually ships 7-19 days
046 173-4099 Brush bearing assembly kit $160.03 1 (includes 002, 003, 009) (Before SN 1000090717) ships same day
047 173-4152 Brush bearing kit $122.00 1 (includes 033, 036, 044 and 045) (After SN 1000090717) ships same day
