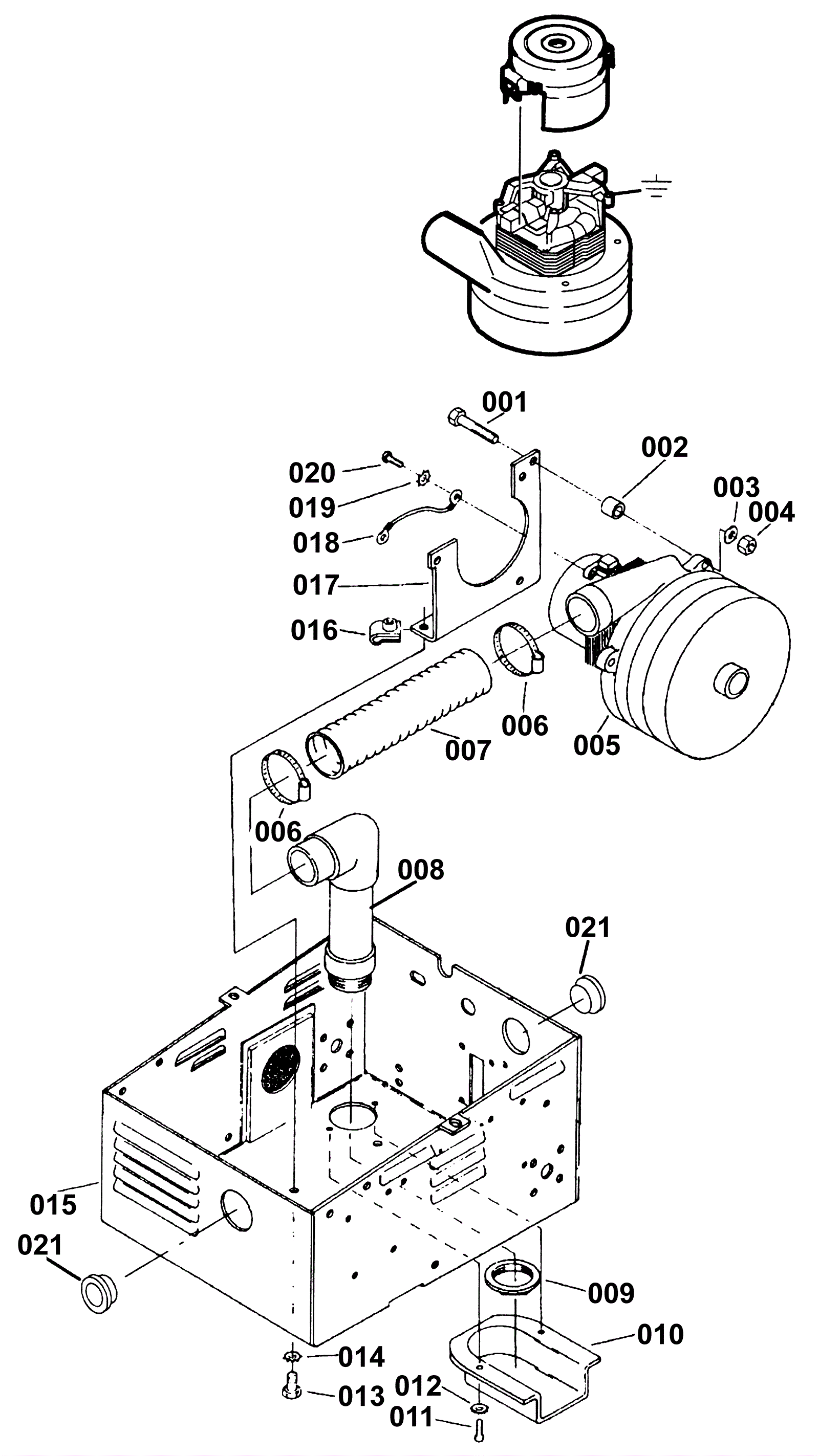

ADMIRAL PLUS Vacuum Motor Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-2525 Bolt 1/4-20 x 1 1/4 hex head plated $0.99 usually ships 1-5 days
002 173-2117 Spacer $1.98 usually ships 1-5 days
003 999-0123 Washer 1/4 SAE flat zinc plated $0.99 ships same day
004 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 ships same day
005a 991-1204 120V 3 stage vacuum motor tangential with snout $193.14 ships same day
005b 173-2526 Vacuum Motor 100V $766.70 usually ships 1-5 days
006 997-2007 Hose clamp $2.07 ships same day
007 173-2118 UL vacuum exhaust hose (12 inches) $23.54 usually ships 7-19 days
008 173-2119 Vacuum exhaust muffler assembly $70.95 usually ships 1-5 days
009 173-2527 Nut 1 1/2 nickel plated thread flange $10.84 usually ships 1-5 days
010 173-2120 Vacuum exhaust deflector $30.56 usually ships 1-5 days
011 173-2508 Screw 10-32 x 3/8 pan head thread rolling $0.99 usually ships 1-5 days
012 999-0998 Washer #10 flat stainless steel $0.99 ships same day
013 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 ships same day
014 999-0017 Washer 1/4 external star lock $0.99 ships same day
015 173-2121 Main frame (OBSOLETE) $251.39 usually ships 1-5 days
016 173-2528 Nut 1/4-20 captive J $10.47 usually ships 1-5 days
017 173-2122 Vacuum motor bracket (OBSOLETE) $48.93 usually ships 1-5 days
018 173-2123 Ground wire $17.27 usually ships 1-5 days
019 999-0311 Washer #10 external star lock zinc plated $0.99 ships same day
020 999-1212 Screw 10-32 x 1/2 hex head stainless steel $0.99 ships same day
021 173-2110 1.63 snap bushing $25.63 usually ships 7-19 days
