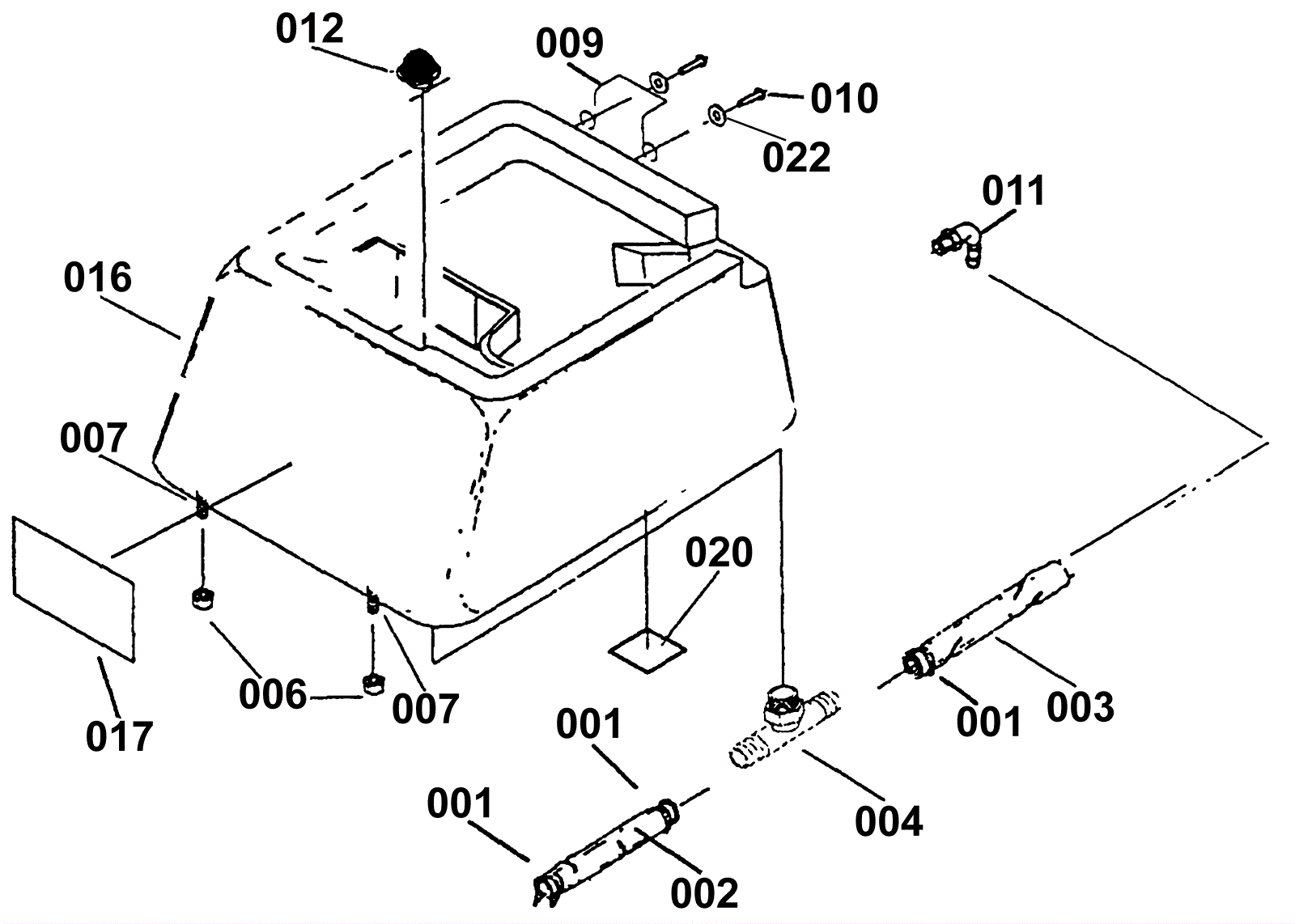

ADMIRAL PLUS Solution Tank Assembly

#PartDescription ReqNotesAvailability
001 173-1821 Hose clamp usually ships 14-20 days
002 173-2111 Hose 3/8 x 10 inches wirebound usually ships 1-5 days
003 173-2112 Drain with solution level hose usually ships 1-5 days
004 173-2113 Hosebarb usually ships 14-20 days
006 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS usually ships 11-14 days
007 999-0706 Screw 1/4-20 x 1 cup point socket set alloy plain finish usually ships 11-14 days
009 173-2114 Hose retainer (OBSOLETE) usually ships 14-20 days
011 173-1072 Hosebarb 3/8 x 1/2 inch usually ships 14-20 days
012 189-4181 3/8 inch mesh strainer usually ships 13-20 days
016 173-2115 Solution tank (OBSOLETE) usually ships 1-5 days
017 173-2116 Main label (OBSOLETE) usually ships 1-5 days
020a 173-2074 Wiring diagram label (OBSOLETE) usually ships 1-5 days
020b 173-2075 Wiring diagram label (OBSOLETE) usually ships 1-5 days
022 999-0123 Washer 1/4 SAE flat zinc plated usually ships 11-14 days
