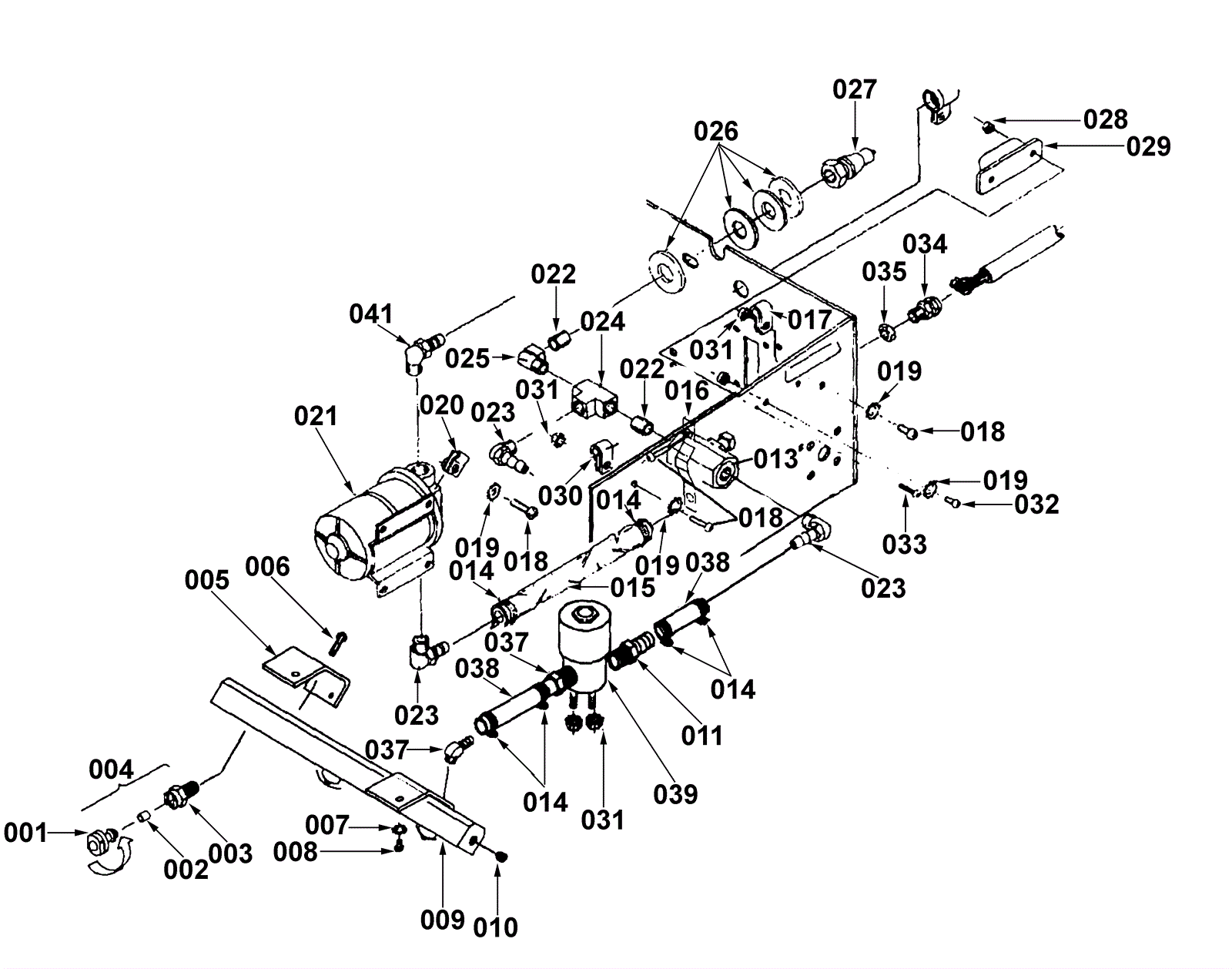

ADMIRAL PLUS Pump Repair/Manifold - Valve

#PartDescriptionPriceReqNotesAvailability
001 173-0098 Jet $34.32 usually ships 7-19 days
002 173-2085 Mini-quick jet seal $9.90 usually ships 7-19 days
003 173-2086 Mini-quick jet body with seal $38.36 usually ships 7-19 days
004 173-2087 Spray jet assembly $71.50 ships same day
005 173-2088 Manifold bracket (OBSOLETE) $13.78 usually ships 7-19 days
006 173-2454 Screw 10-3/4 polyfast $1.40 ships same day
007 999-0017 Washer 1/4 external star lock $0.99 ships same day
008 999-0323 Screw 1/4-20 x 1/2 pan head slotted zinc plated $0.99 ships same day
009 173-2089 Manifold (OBSOLETE) $94.60 ships same day
010 173-2090 1/8 plug (OBSOLETE) $6.49 usually ships 7-19 days
011 173-2091 Hosebarb $7.32 usually ships 7-19 days
013 173-2092 Ball valve $41.69 usually ships 7-19 days
014 173-1821 Hose clamp $6.39 ships same day
015 173-2093 3/8 rubber hose 14 inches $28.48 usually ships 1-5 days
016 173-3048 valve mounting bracket $23.98 usually ships 1-5 days
017 173-2094 P clamp $1.40 usually ships 1-5 days
018 999-0413 Screw 10-32 x 1/2 pan head slotted zinc plated $2.20 ships same day
019 999-0311 Washer #10 external star lock zinc plated $0.99 ships same day
020 173-2520 Nut 10-32 captive jam (OBSOLETE) $6.49 usually ships 7-19 days
021 173-2095 Pump $500.50 usually ships 7-19 days
022 189-4213 1/4 inch nipple $10.95 ships same day
023 173-2096 Hosebarb $28.95 usually ships 7-19 days
024 173-2097 1/4 FPT tee $16.39 usually ships 1-5 days
025 173-2098 Street elbow 1/4 $10.62 usually ships 7-19 days
027 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) $10.94 ships same day
028 173-2522 Nut 6-32 with star washer $0.99 usually ships 1-5 days
029 173-1888 Terminal block $55.55 usually ships 7-19 days
030 173-2099 P clamp (OBSOLETE) $1.39 usually ships 7-19 days
031 173-2472 Nut 10-32 with star washer $0.99 usually ships 1-5 days
032 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated $0.99 ships same day
033 173-2523 Screw 6-32 x 3/4 nylon black (OBSOLETE) $0.99 usually ships 1-5 days
034 173-2078 strain relief (OBSOLETE) $17.12 usually ships 1-5 days
035 999-9009 Nut M22 x 1.5 hex plain finish $10.60 usually ships 7-19 days
037 173-1937 1/2 hosebarb $25.74 usually ships 7-19 days
038 173-2101 rubber hose 3/8 x 6.26 inches $0.99 usually ships 7-19 days
039 173-2102 115V solenoid valve assembly $383.90 usually ships 7-19 days
041 173-2103 Hosebarb $32.89 usually ships 7-19 days
