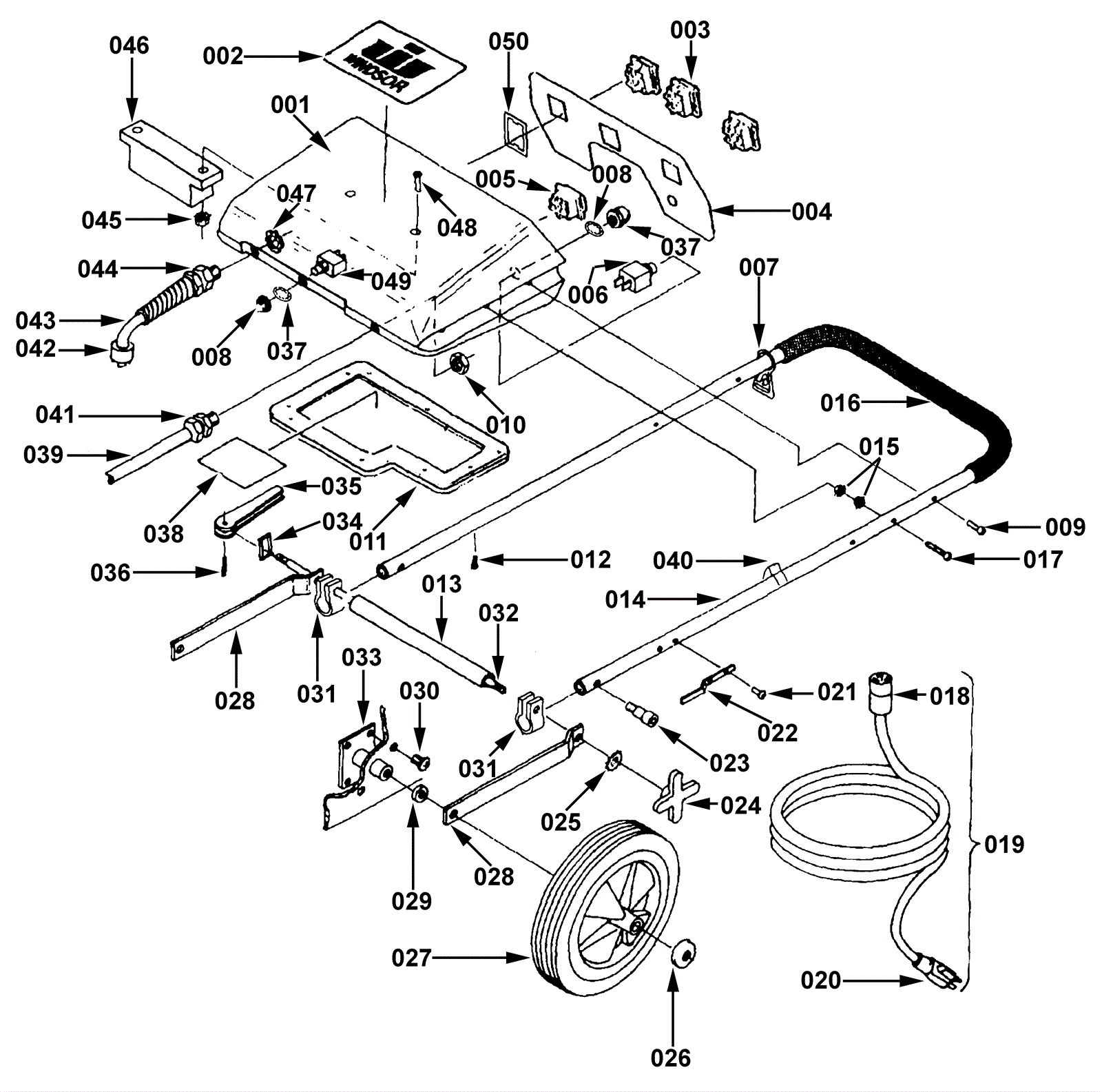

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
173-2047
|
panel (OBSOLETE) |
|
|
|
002 |
173-2048
|
windsor label |
|
|
|
003 |
173-2028
|
Rocker switch, on/off |
|
|
|
004a |
173-2049
|
rocker label (OBSOLETE) |
|
|
|
004b |
173-2050
|
japan switch wiring label (OBSOLETE) |
|
|
|
005 |
173-2051
|
Switch (OBSOLETE) |
|
|
|
006a |
173-2052
|
6A circuit breaker |
|
|
|
006b |
173-2053
|
6amp circuit breaker |
|
|
|
008 |
189-0312
|
3/8 inch circuit breaker boot |
|
|
|
009 |
999-0359
|
Screw 10-32 x 1 1/4 pan head phillips zinc plated |
|
|
|
010 |
999-9009
|
Nut M22 x 1.5 hex plain finish |
|
|
|
011 |
173-2055
|
panel access plate |
|
|
|
012 |
173-2512
|
Screw 6-32 x 1/2 nylon pan head machine (OBSOLETE) |
|
|
|
013 |
173-2056
|
Sleeve |
|
|
|
014 |
173-2057
|
ADP with grip handle |
|
|
|
015 |
173-2472
|
Nut 10-32 with star washer |
|
|
|
016 |
173-1043
|
Handle x 9.5 inch Grip |
|
|
|
017 |
999-1631
|
Screw 10-32 x 1 1/2 pan head phillips stainless steel |
|
|
|
018 |
173-2058
|
cord end |
|
|
|
019 |
173-2059
|
14/3 extension cord 50 foot twist lock (yellow) |
|
|
|
020 |
173-2060
|
cord end |
|
|
|
022 |
173-2062
|
Cord hook |
|
|
|
023 |
999-1056
|
Bolt 5/16-18 x 1 shoulder stainless steel |
|
|
|
024 |
173-1736
|
Knob |
|
|
|
025 |
999-1053
|
Washer 5/16 internal star lock stainless steel |
|
|
|
026 |
173-2064
|
Axle cap |
|
|
|
027 |
273-4000
|
10 inch gray wheel |
|
|
|
028 |
173-2066
|
ADM 8G handle arm |
|
|
|
029 |
173-2067
|
ADM wheel spacer (OBSOLETE) |
|
|
|
030 |
173-2517
|
Screw 1/4-20 x 5/16 pan head machine |
|
|
|
031 |
173-2068
|
Handle adjustment locking clamp |
|
|
|
032 |
173-2069
|
Handle adjustment locking rod |
|
|
|
033 |
173-2070
|
Wheel axle assembly |
|
|
|
034 |
173-2071
|
Handle lever adjustment clip |
|
|
|
035 |
173-2072
|
Handle clamp lever |
|
|
|
036 |
173-2073
|
Roll pin |
|
|
|
037 |
173-2518
|
Washer 1/8 interlock |
|
|
|
038a |
173-2074
|
Wiring diagram label (OBSOLETE) |
|
|
|
038b |
173-2075
|
Wiring diagram label (OBSOLETE) |
|
|
|
039 |
173-2076
|
Wre assembly |
|
|
|
040 |
173-2077
|
Power cord clip |
|
|
|
041 |
173-2078
|
strain relief (OBSOLETE) |
|
|
|
042 |
173-2079
|
cord end |
|
|
|
043 |
N/A
|
Not available |
|
(Twist lock pigtail cord) |
|
044 |
173-2081
|
Strain relief |
|
|
|
046 |
173-4885
|
Terminal block 115v |
|
|
|
047 |
173-2478
|
Nut 1/2 conduit nickel plated thread (OBSOLETE) |
|
|
|
048 |
173-2519
|
Screw 8-32 x 1 flat head nylon machine (OBSOLETE) |
|
|
|
049 |
189-4092
|
15amp circuit breaker |
|
|
|
050 |
173-2084
|
Switch retaining clip |
|
|
|
