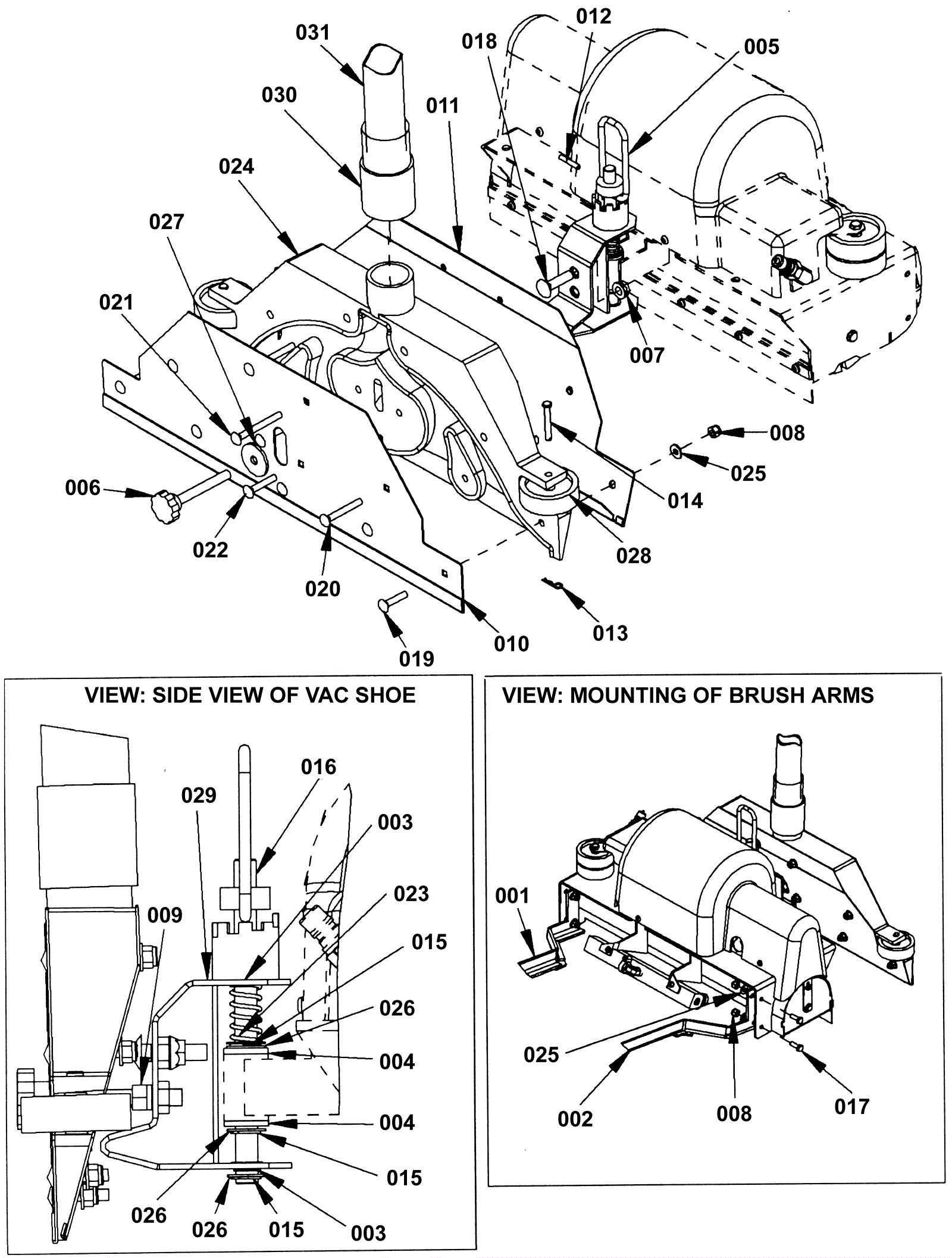

FASTBREAK20 U19506 Vacuum Shoe Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-2336 Brush housing arm (right) Call for price 1 usually ships 1-5 days
002 173-2336 Brush housing arm (right) Call for price 1 usually ships 1-5 days
003 173-2337 1/2 cylinder bearing Call for price 2 usually ships 14-20 days
004 173-1987 Deck bushing Call for price 2 usually ships 14-20 days
005 173-2338 Height adjustment collar (OBSOLETE) Call for price 1 usually ships 1-5 days
006 173-2339 Knob Call for price 1 usually ships 14-20 days
007 999-0488 Nut 3/8-16 flange lock serrated zinc plated Call for price 1 usually ships 11-14 days
008 999-0152 Nut 1/4-20 nylon insert lock zinc plated Call for price 15 usually ships 11-14 days
009 999-0188 Nut 3/8-16 nylon insert lock zinc plated Call for price 1 usually ships 11-14 days
010 173-2340 Vacuum plate Call for price 1 usually ships 14-20 days
011 173-2341 Vacuum trap plate Call for price 1 usually ships 14-20 days
012 173-5205 Pin (OBSOLETE) Call for price 1 usually ships 14-20 days
013 173-1053 Cotter hair pin Call for price 2 usually ships 1-5 days
014 173-3433 Clevis pin Call for price 2 usually ships 1-5 days
015 173-3486 Snap ring Call for price 3 usually ships 14-20 days
016 173-2343 Vacuum pivot rod Call for price 1 usually ships 1-5 days
017 999-0200 Bolt 1/2-13 x 1 1/4 hex head Call for price 4 usually ships 14-19 days
018 999-0209 Screw 3/8-16 x 1 1/2 carriage head grade 5 zinc Call for price 1 usually ships 11-14 days
019 173-2580 Screw 1/4-20 x 1 1/4 carriage (OBSOLETE) Call for price 5 usually ships 14-20 days
020 999-0605 Screw 1/4-20 x 2 carriage head stainless steel Call for price 2 usually ships 11-14 days
021 999-0606 Screw 1/4-20 x 2 1/2 carriage head stainless steel Call for price 2 usually ships 11-14 days
022 999-0604 Screw 1/4-20 x 1 1/2 carriage head stainless steel Call for price 2 usually ships 11-14 days
023 173-2344 Compression spring (OBSOLETE) Call for price 1 usually ships 14-20 days
024 173-2345 Vacuum shoe insert Call for price 1 usually ships 1-5 days
025 999-0123 Washer 1/4 SAE flat zinc plated Call for price 15 usually ships 11-14 days
026 173-2581 Washer flat Call for price 4 usually ships 14-20 days
027 173-2582 Washer 25/64 x 1 1/2 flat Call for price 4 usually ships 1-5 days
028 173-2265 Vacuum shoe wheel Call for price 2 usually ships 14-20 days
029 173-2347 Vacuum shoe weldment bracket Call for price 1 usually ships 1-5 days
030 173-2318 Vacuum hose cuff Call for price 1 usually ships 14-20 days
031 173-2348 Vacuum hose Call for price 1 usually ships 14-20 days
