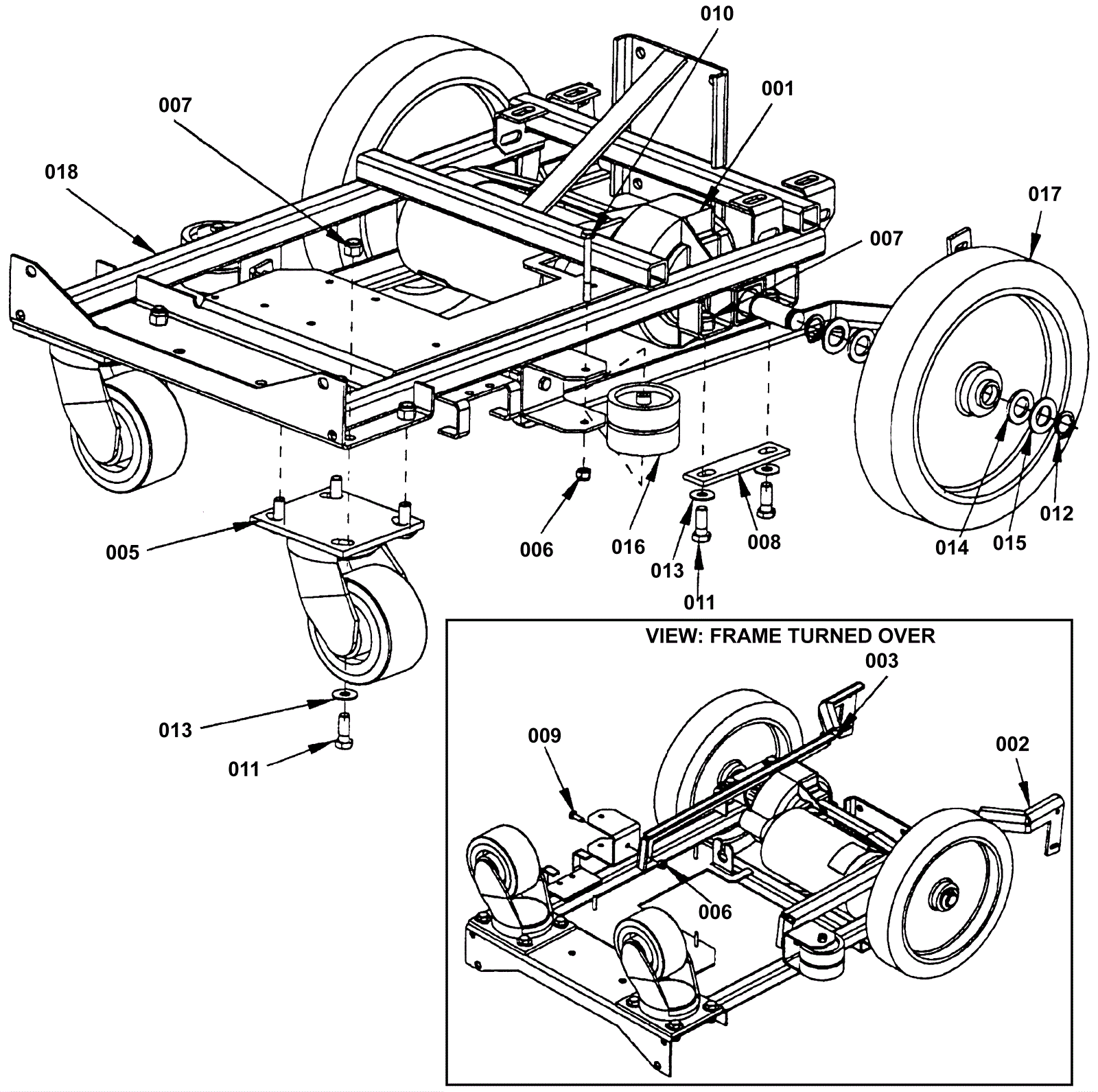

FASTBREAK20 U19506 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-2282 Transaxle Call for price 1 usually ships 14-20 days
002 173-2336 Brush housing arm (right) Call for price 1 usually ships 1-5 days
003 173-2283 Brush housing arm (left) Call for price 1 usually ships 1-5 days
005a 991-2006 Caster wheel assembly (red) Call for price 2 usually ships 14-22 days
005b 991-2008 4 inch caster wheel with bearings (red) Call for price 2 Can install if swivel is ok usually ships 14-22 days
006 999-0152 Nut 1/4-20 nylon insert lock zinc plated Call for price 4 usually ships 11-14 days
007 999-0188 Nut 3/8-16 nylon insert lock zinc plated Call for price 12 usually ships 11-14 days
008 173-1694 Drive axle plate Call for price 2 usually ships 1-5 days
009 999-0200 Bolt 1/2-13 x 1 1/4 hex head Call for price 2 usually ships 14-19 days
010 173-2558 Bolt 1/4-20 x 2 1/2 hex head stainless steel Call for price 2 usually ships 1-5 days
011 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated Call for price 12 usually ships 11-14 days
012 173-3286 3/4 inch extended snap ring Call for price 4 usually ships 14-20 days
013 999-0617 Washer 3/8 x 1 flat stainless steel Call for price 12 usually ships 11-14 days
014 999-9154 Washer 3/4 flat nylon Call for price 4 usually ships 11-14 days
015 173-2569 Washer .77 x 1.31 flat stainless steel Call for price 4 usually ships 14-20 days
016 173-2265 Vacuum shoe wheel Call for price 4 usually ships 14-20 days
017 189-4010 Wheel with bearings Call for price 2 usually ships 14-20 days
018 N/A Not available Call for price 1 (frame) usually ships 3-26 days
