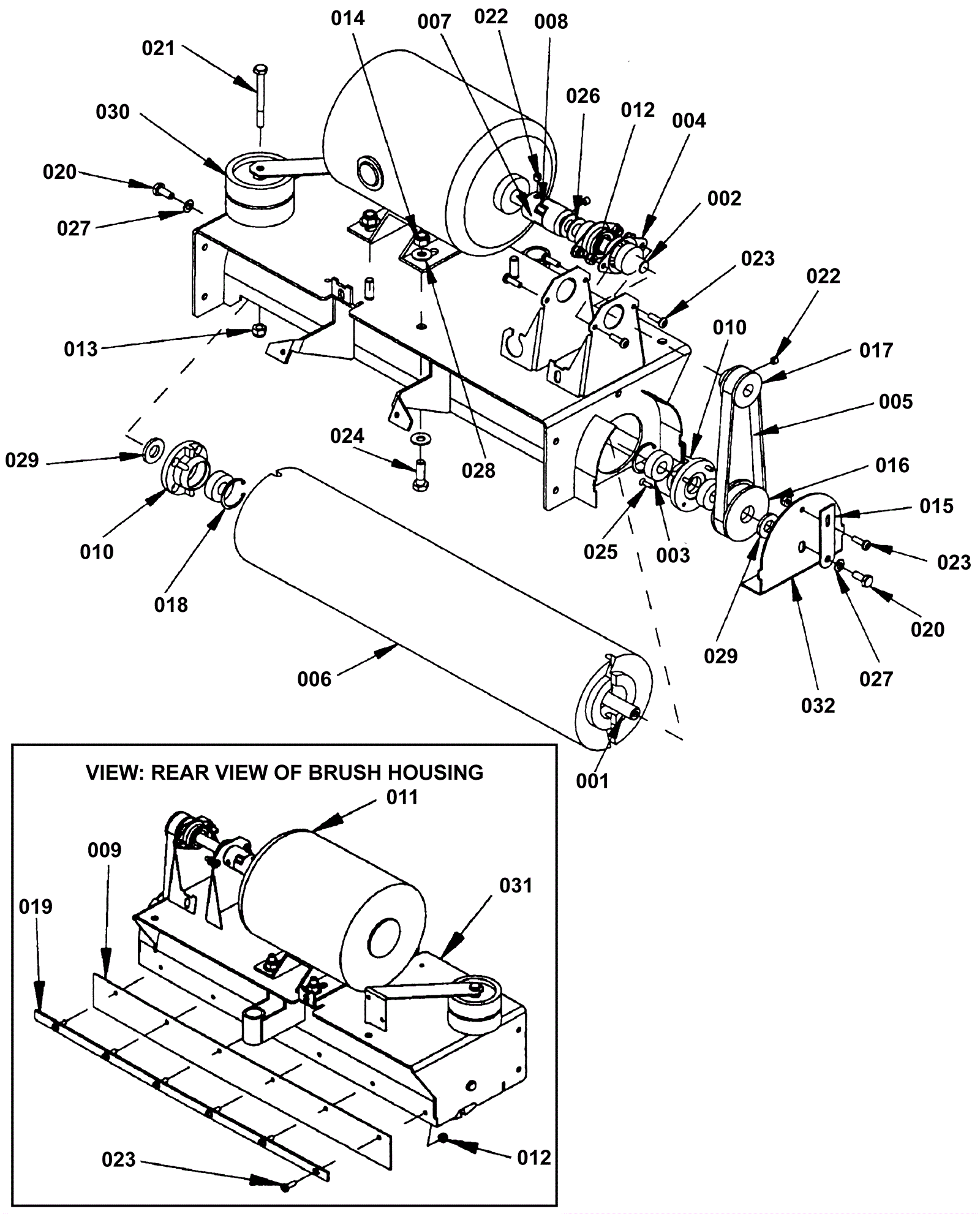

FASTBREAK20 U19506 Brush Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-2256 Axle Call for price 1 usually ships 14-20 days
002 189-4025 Flat axle Call for price 1 usually ships 1-5 days
003 173-2030 Shielded bearing (OBSOLETE) Call for price 5 usually ships 14-20 days
004 173-2011 Flanged bearing Call for price 2 usually ships 14-20 days
005 173-2013 Timing belt Call for price 1 usually ships 14-20 days
006 173-2258 Brush Call for price 1 usually ships 14-20 days
007 173-2009 1/2 Jaw coupler Call for price 2 usually ships 14-20 days
008 173-2010 Spider coupler Call for price 1 usually ships 14-20 days
009 173-2259 Splash guard Call for price 1 usually ships 14-20 days
010 173-2260 Brush quick change end idler Call for price 2 usually ships 14-20 days
011 173-2039 Brush motor Call for price 1 usually ships 14-20 days
012 999-0086 Nut 10-32 nylon insert lock zinc plated Call for price 11 usually ships 11-14 days
013 999-0152 Nut 1/4-20 nylon insert lock zinc plated Call for price 1 usually ships 11-14 days
014 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated Call for price 4 usually ships 11-14 days
015 173-2261 Belt adjustment plate Call for price 1 usually ships 14-20 days
016 173-2262 Timing pulley Call for price 1 usually ships 14-20 days
018 173-2263 Internal snap ring 1-1/8 Call for price 2 usually ships 14-20 days
019 173-2264 Splash guard retainer Call for price 1 usually ships 14-20 days
020 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel Call for price 2 usually ships 11-14 days
021 173-2558 Bolt 1/4-20 x 2 1/2 hex head stainless steel Call for price 1 usually ships 1-5 days
022 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish Call for price 3 usually ships 11-14 days
023 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated Call for price 11 usually ships 11-14 days
024 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated Call for price 4 usually ships 11-14 days
025 173-2560 Screw 6-32 x 1/2 phillips flat head machine Call for price 4 usually ships 14-20 days
026 999-0566 Washer 1/2 flat nylon Call for price 2 usually ships 11-14 days
027 999-0017 Washer 1/4 external star lock Call for price 2 usually ships 11-14 days
028 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel Call for price 8 usually ships 11-14 days
029 189-1241 Washer 1/2 x 1 nylon Call for price 2 usually ships 13-20 days
030 173-2265 Vacuum shoe wheel Call for price 2 usually ships 14-20 days
031 173-2266 Brush housing weldment Call for price 1 usually ships 14-20 days
032a 173-2267 Rush housing end cap bracket Call for price 1 usually ships 1-5 days
032b 189-4033 Brush idler assembly Call for price usually ships 13-20 days
032c 173-2269 Brush motor assembly Call for price usually ships 1-5 days
032d 173-2270 Brush pulley assembly Call for price usually ships 14-20 days
