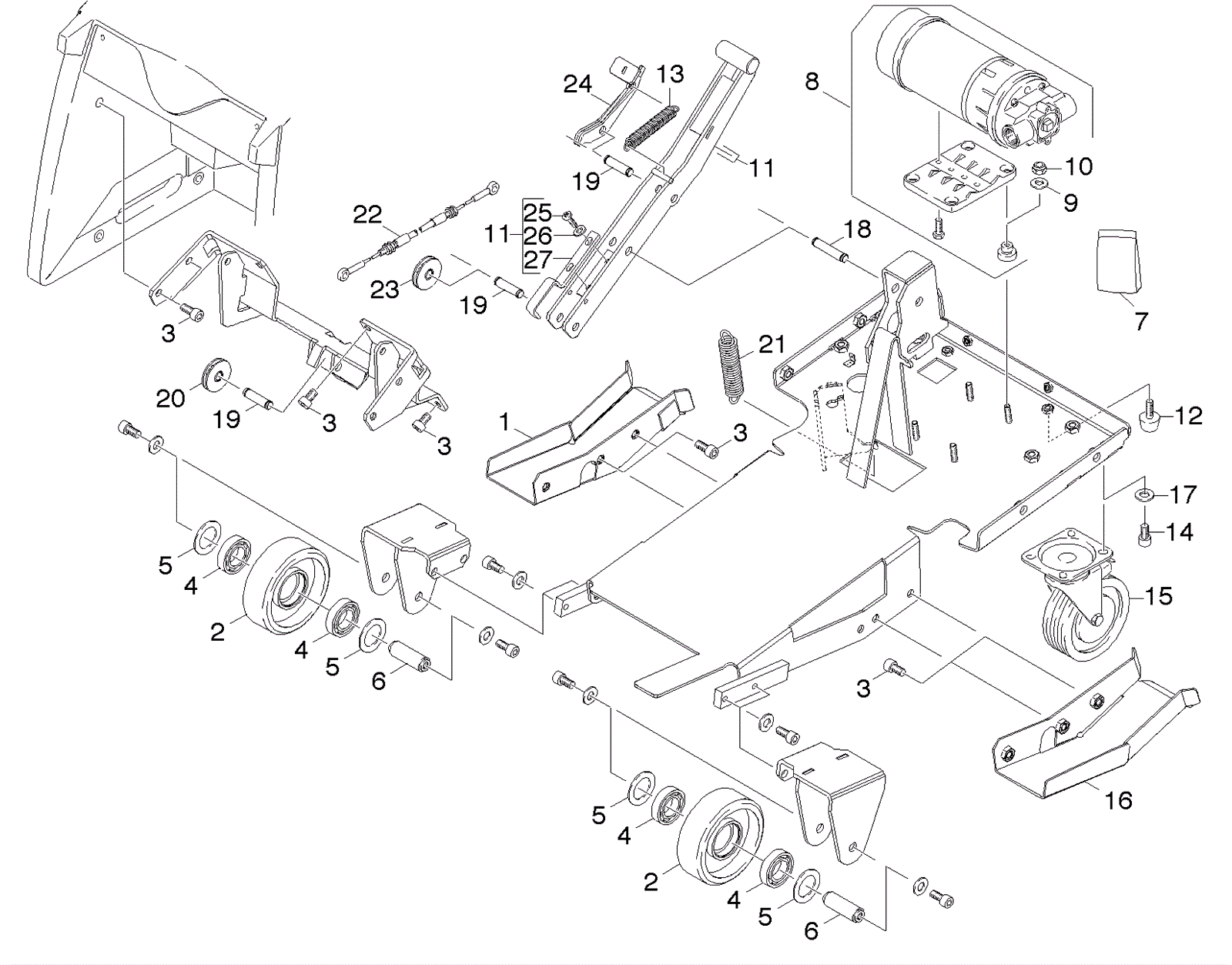

TREADWAY Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 373-1395 Right hand guard plate $343.20 1 usually ships 11-16 days
2 373-1377 Wheel $301.31 2 usually ships 11-16 days
3 183-0182 Cheese head screw $2.65 12 usually ships 1-5 days
4 373-1378 Ball bearing $70.04 4 usually ships 11-16 days
5 373-1379 Washer $18.04 4 usually ships 11-16 days
6 373-1380 Bolt $48.28 2 usually ships 11-16 days
7 373-1381 Gasket Call for price 1 usually ships 11-16 days
8 373-1382 Pump $1,877.32 1 (includes 9 and 10) usually ships 11-16 days
9 173-5899 Washer $0.99 4 usually ships 11-16 days
10 183-0079 Hex nut $1.54 4 usually ships 1-5 days
11 373-1383 BR4 pedal $769.76 1 (includes 25-27) usually ships 11-16 days
12 373-1384 Buffer $25.54 2 usually ships 11-16 days
13 373-1385 Extension spring $9.54 1 usually ships 11-16 days
14 183-7547 Screw $1.35 8 usually ships 1-5 days
15 373-1386 Fixed castor $275.42 2 usually ships 11-16 days
16 373-1387 Left hand guard plate $343.20 1 usually ships 11-16 days
17 273-8187 Washer $1.20 10 usually ships 11-16 days
18 373-1388 Bolt $35.09 1 usually ships 11-16 days
19 373-1389 Bolt $53.32 3 usually ships 11-16 days
20 373-1390 Front deflection pulley $183.61 2 usually ships 11-16 days
21 373-1391 Extension spring $9.82 1 usually ships 11-16 days
22 273-7948 Bowden cable $244.20 1 usually ships 11-16 days
23 373-1392 Rear deflection pulley $183.61 1 usually ships 11-16 days
24 373-1393 Conversion kit $460.21 1 usually ships 11-16 days
25 183-0261 Screw (obsolete) $4.53 2 usually ships 1-5 days
26 273-8124 Washer $1.06 2 usually ships 11-16 days
27 373-1394 Retaining bracket roller $59.96 1 usually ships 11-16 days
