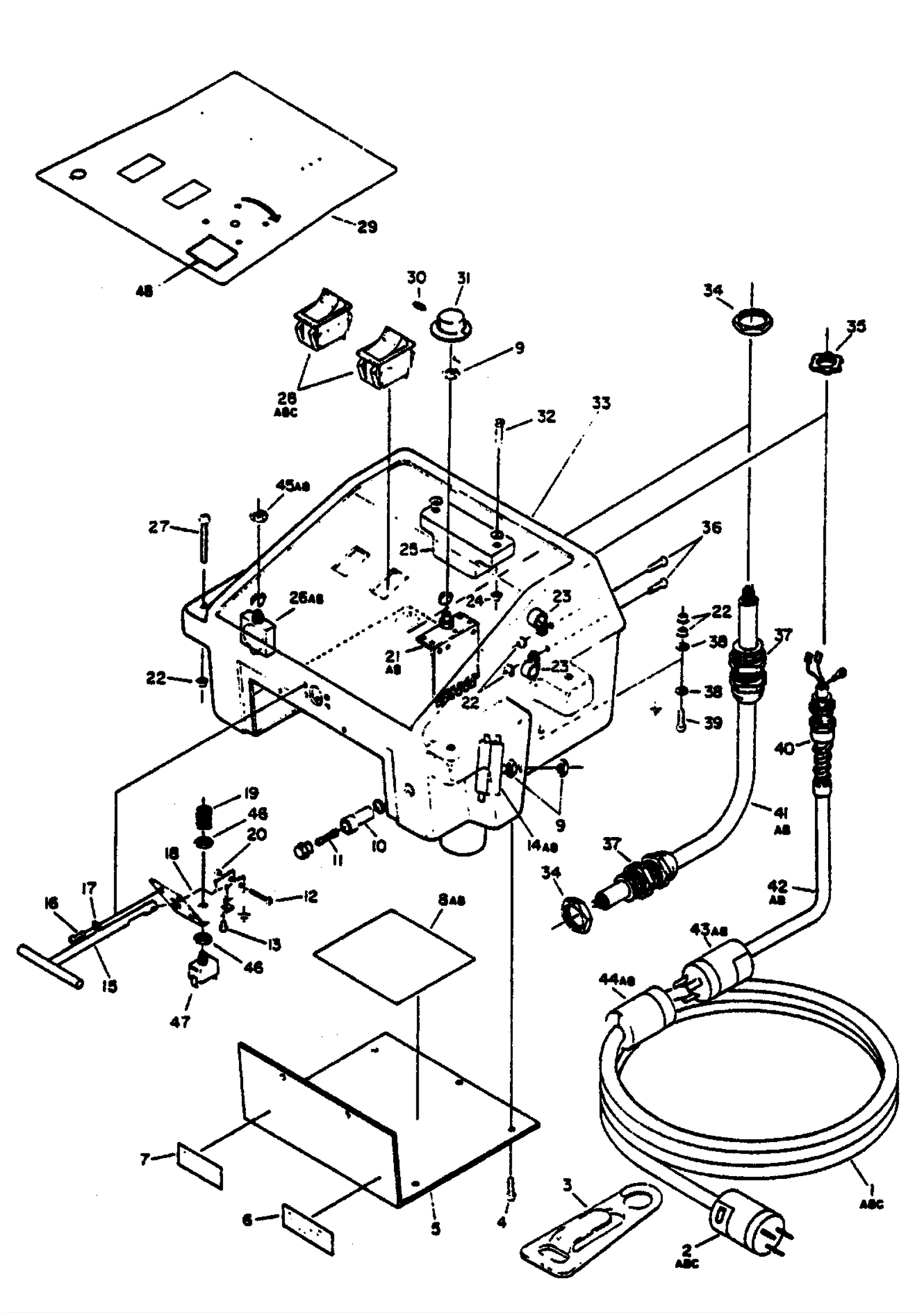

COMMODORE FASTRACTION Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-7012 12/3 locking extension cord 75 foot $797.30 usually ships 14-27 days
2 173-2060 cord end $79.75 usually ships 1-5 days
3 173-0708 Strain relief cord hook $4.36 usually ships 1-5 days
4 173-0801 Screw 8-32 x 1/2 black standard pan head machine $0.99 usually ships 1-5 days
5 173-4875 Roto panel acess plate for CMD (OBSOLETE) $40.57 usually ships 1-5 days
6 173-4876 Replacement label (OBSOLETE) $10.18 usually ships 1-5 days
8 173-4877 Control panel wiring label for CMD (OBSOLETE) $9.37 usually ships 1-5 days
9 173-3896 Nut 3/8-27 Panel $0.99 usually ships 14-22 days
10 173-3210 Fuseholder $22.99 usually ships 1-5 days
11 173-4878 2 amp type MDA fuse $14.41 usually ships 1-5 days
12 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 ships same day
13 999-1060 Screw 10-32 x 1/4 pan head phillips stainless steel $0.99 usually ships 1-5 days
14 173-2007 SPDT 20A snap action switch $53.68 usually ships 14-22 days
15 173-4880 T handle (OBSOLETE) $95.10 usually ships 1-5 days
16 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated $0.99 ships same day
17 999-0311 Washer #10 external star lock zinc plated $0.99 ships same day
18 173-4881 Roto T handle bracket for CMD (OBSOLETE) $23.34 usually ships 1-5 days
20 173-5037 Nut 6-32 elastic stop (OBSOLETE) $1.25 usually ships 14-22 days
21 173-4883 Speed control knob 115v $218.90 usually ships 1-5 days
22 173-2472 Nut 10-32 with star washer $0.99 usually ships 1-5 days
23 173-2099 P clamp (OBSOLETE) $1.39 usually ships 14-22 days
25 173-4885 Terminal block 115v $33.66 usually ships 1-5 days
26 N/A Not available Call for price usually ships 3-26 days
27 173-4887 Screw 10-32 x 2 1/4 pleated pan head phillips (OBSOLETE) $1.38 usually ships 1-5 days
28 173-0703 Illuminated rocker switch 115 volt (OBSOLETE) $47.52 usually ships 14-22 days
28a 173-4889 SPST rocker switch (OBSOLETE) $29.25 usually ships 1-5 days
29 173-4890 Control panel label for CMD (OBSOLETE) $29.60 usually ships 1-5 days
30 173-3898 Screw 8-32 x 1/8 knurled cap $1.39 usually ships 1-5 days
31 173-4891 Speed control knob $24.24 usually ships 1-5 days
32 173-2519 Screw 8-32 x 1 flat head nylon machine (OBSOLETE) $0.99 usually ships 1-5 days
33 173-4892 Control panel for CMD (OBSOLETE) $115.94 usually ships 1-5 days
34 999-9009 Nut M22 x 1.5 hex plain finish $10.60 usually ships 14-22 days
35 173-2478 Nut 1/2 conduit nickel plated thread (OBSOLETE) $0.90 usually ships 14-22 days
36 173-4893 Screw 10-32 x 1/2 pan head phillips black nylon (OBSOLETE) $0.99 usually ships 1-5 days
37 173-2078 strain relief (OBSOLETE) $17.12 usually ships 1-5 days
38 999-0998 Washer #10 flat stainless steel $0.99 ships same day
39 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 ships same day
40 173-2081 Strain relief $16.39 usually ships 14-22 days
41 173-4894 Main wire assembly for CMD (OBSOLETE) $72.27 usually ships 1-5 days
42 173-2744 Pigtail cord $141.90 usually ships 14-22 days
43 173-2079 cord end $56.65 usually ships 14-22 days
44 173-2058 cord end $133.10 usually ships 1-5 days
45 173-3892 Nut 7/16-28 panel $0.99 usually ships 1-5 days
45a 173-3896 Nut 3/8-27 Panel $0.99 usually ships 14-22 days
46 173-3893 Nut 15/32-32 $2.20 usually ships 1-5 days
47 173-4896 SPST switch 115V $8.64 usually ships 1-5 days
48 173-1282 For safety decal $9.63 usually ships 1-5 days
