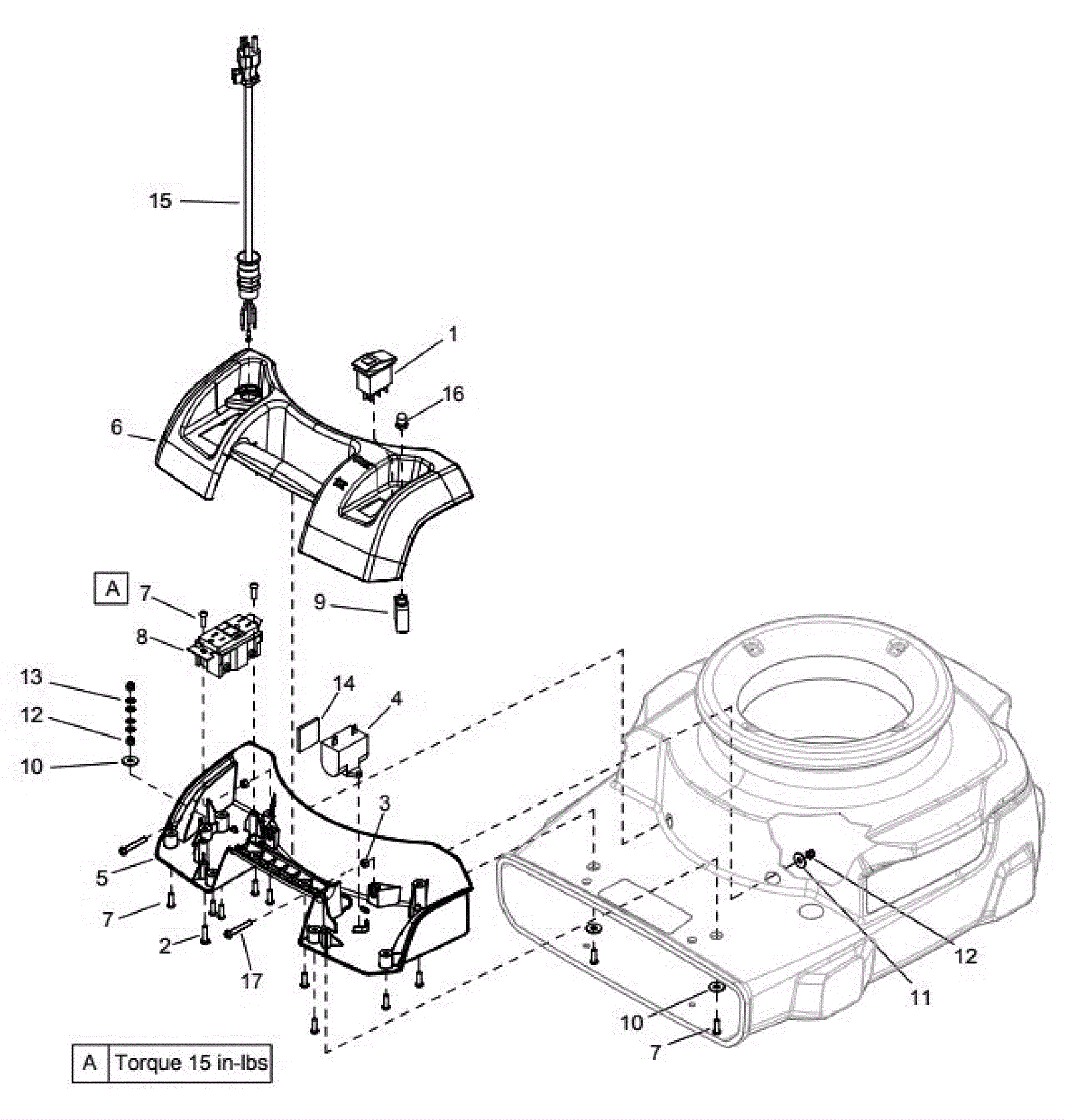

TRIAD Electrical Console Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-8569 Rocker switch $25.52 1 ships same day
2 273-5489 Screw M5 x 20mm pan head phillips stainless steel $2.97 1 usually ships 1-5 days
3 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
4 273-8576 Capacitor (OBSOLETE) $20.90 1 usually ships 7-19 days
5 273-8577 Lower elect console (OBSOLETE) $16.39 1 usually ships 7-19 days
6 273-8578 Top elect console (OBSOLETE) $17.05 1 usually ships 7-19 days
7 173-5950 Screw KA50 x 16 oval head phillips SS (OBSOLETE) $2.85 13 usually ships 7-19 days
8 273-8582 Outlet $100.10 1 usually ships 7-19 days
9 273-8579 Breaker $4.90 1 usually ships 7-19 days
10 173-4178 Washer M6 flat plated (OBSOLETE) $1.45 5 usually ships 7-19 days
11 273-5539 Washer M5 stainless steel $2.12 2 usually ships 1-5 days
12 999-0495 Nut M5-.8 nylon insert lock zinc plated $0.99 4 ships same day
13 999-0311 Washer #10 external star lock zinc plated $0.99 4 ships same day
14 273-8580 Mounting squares $105.28 1 usually ships 7-19 days
15 273-8581 Cord set (OBSOLETE) $97.35 1 usually ships 7-19 days
16 189-0312 3/8 inch circuit breaker boot $59.75 1 usually ships 11-24 days
17 273-8570 Screw M5 x 35mm phillips pan head machine stainless steel $0.99 2 usually ships 7-19 days
