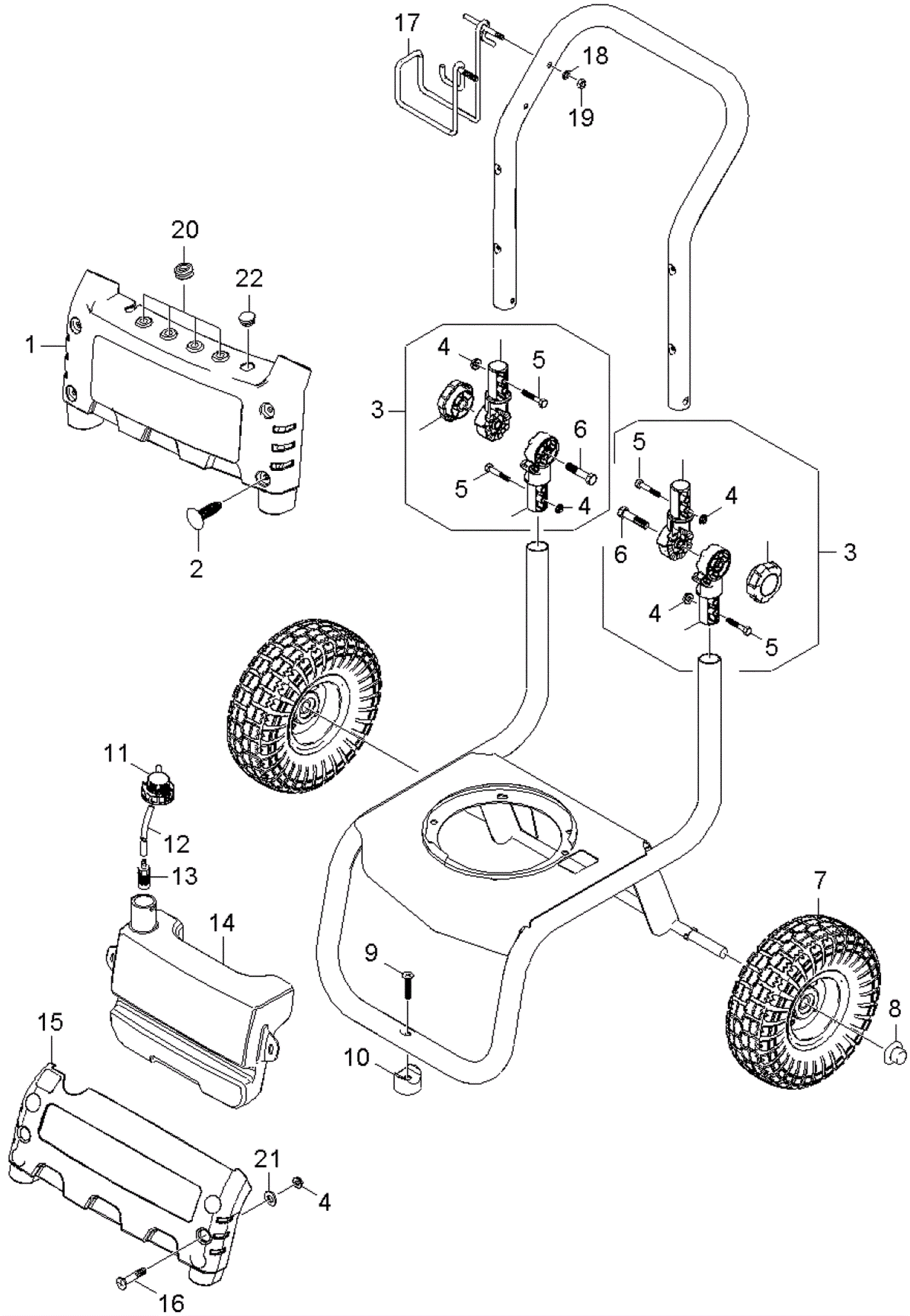

G2600 VH Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-9615 Name plate (OBSOLETE) Call for price 1 usually ships 7-19 days
2 273-9467 Nylon rivet $1.17 4 usually ships 7-19 days
3 273-9616 Rotary joint assembly $12.98 2 (includes 4-6) usually ships 7-19 days
4 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
5 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated $0.99 4 ships same day
7 373-1019 10 inch wheel assembly steel rim with tube (gray) $24.97 2 usually ships 7-19 days
8 373-1020 5/8 inch plastic cap (black) $2.30 2 ships same day
9 999-1177 Screw 5/16-18 x 1 3/4 flat head socket stainless steel $1.17 1 ships same day
10 273-9439 Rubber buffer $3.03 1 usually ships 7-19 days
11 273-2077 Cover $11.88 1 ships same day
12 173-6219 Hose (sold by the foot) $6.60 1 usually ships 12-29 days
14 273-9621 Tank $24.09 1 usually ships 7-19 days
15 273-9622 Cover (OBSOLETE) Call for price 1 usually ships 7-19 days
16 273-9623 Large head machine screw 1/4 x 2-1/4 inch $0.99 2 usually ships 7-19 days
17 273-7962 Bracket $6.59 1 usually ships 7-19 days
18 273-7963 Washer $0.45 2 usually ships 7-19 days
19 273-7964 Nut $1.52 2 usually ships 7-19 days
20 273-9436 Grommet $1.28 5 usually ships 7-19 days
21 273-9625 Washer 1/4 inch $0.99 2 usually ships 7-19 days
22 273-9626 Extra hole-nozzle plug $0.99 1 usually ships 7-19 days
