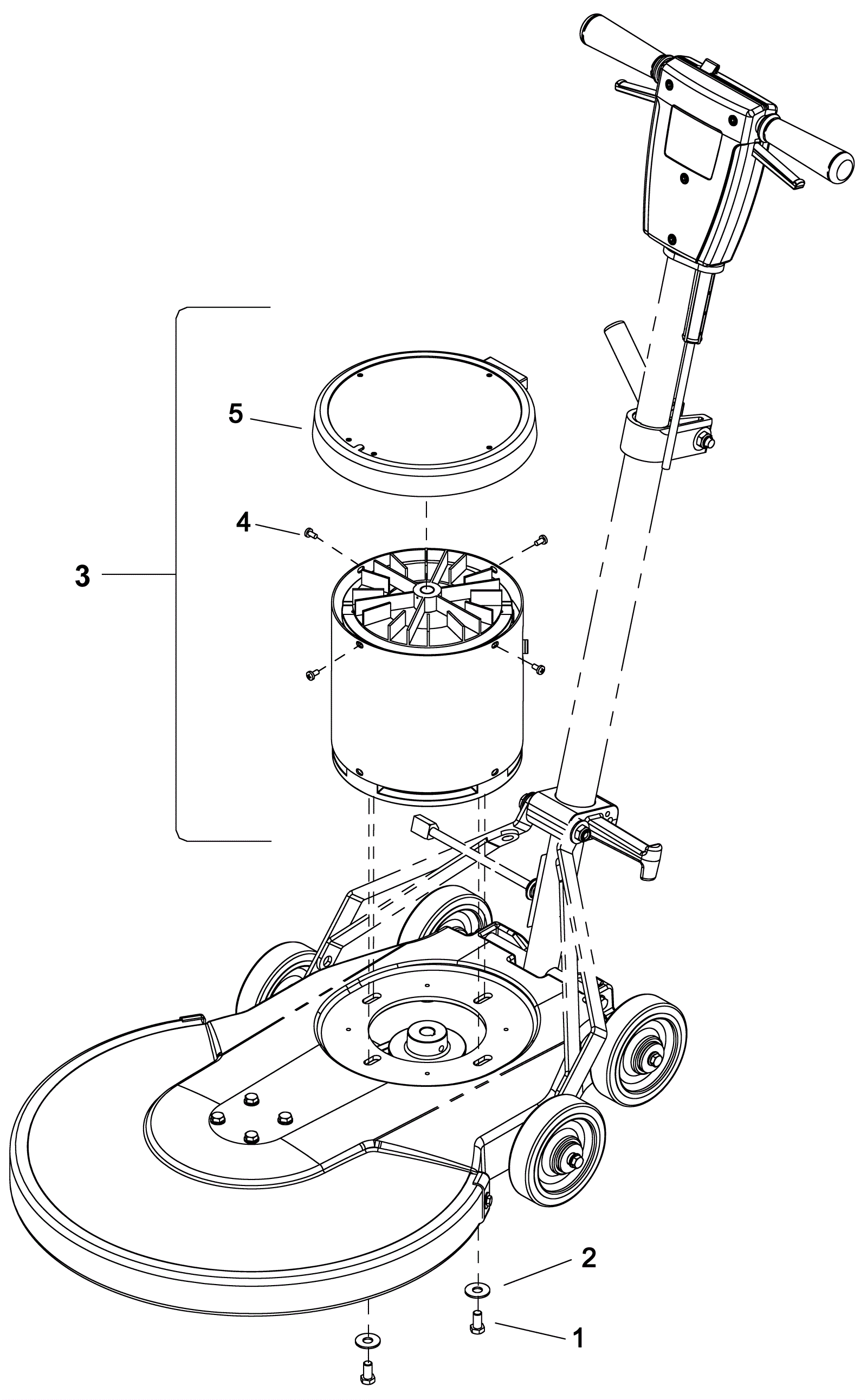

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0493
|
Bolt 3/8-16 x 3/4 hex head stainless steel |
4 |
|
|
2 |
173-2548
|
Washer M10 x 30mm plated |
4 |
|
|
3 |
173-7433
|
115V 1.5HP 3000RPM motor |
1 |
|
|
4 |
999-1090
|
Screw M5-.8 x 10mm pan head phillips zinc plated |
8 |
|
|
5 |
173-4671
|
Motor cover assembly |
1 |
|
|
