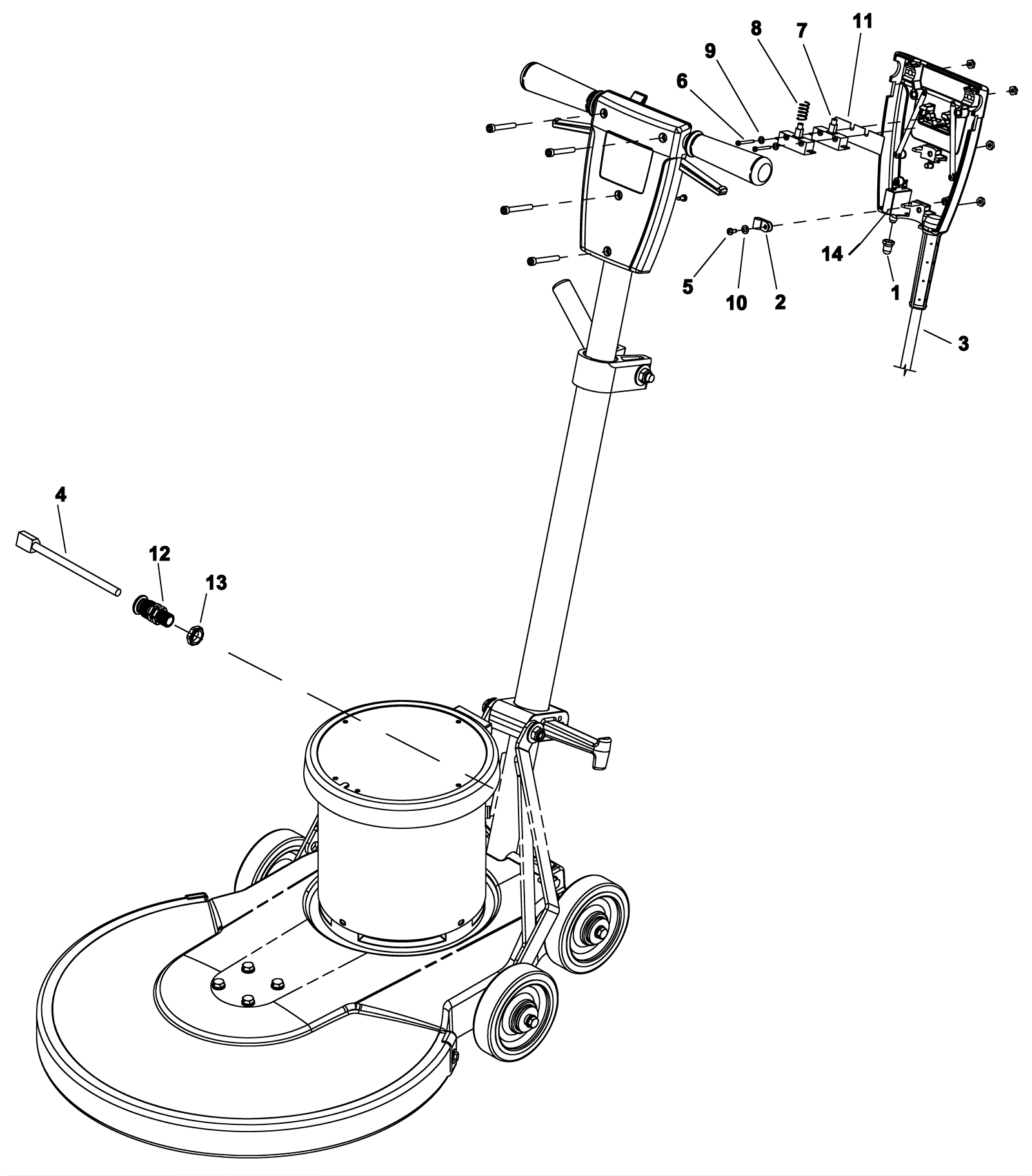

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-0312
|
3/8 inch circuit breaker boot |
1 |
|
|
2 |
173-1800
|
5/16 nylon clamp (OBSOLETE) |
1 |
|
|
3a |
173-0335
|
14/3 yellow power cord set 50 ft (with strain relief) |
1 |
(OEM) |
|
3b |
991-5005
|
14/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) (does not include strain relief) |
|
3c |
991-5001
|
14/3 extension cord 50 foot (yellow) |
1 |
(NON-OEM) |
|
4 |
173-2835
|
Interconnect cord (OBSOLETE) |
1 |
|
|
5 |
173-4697
|
Screw M4-.8 x 10mm hex head thread forming |
1 |
|
|
6 |
173-4704
|
Screw M3-.5 x 40mm pan head thread forming |
2 |
|
|
7 |
173-0378
|
25amp switch replacement |
2 |
|
|
8 |
173-0923
|
Spring (OBSOLETE) |
1 |
|
|
9 |
173-4705
|
Washer M4 shakeproof |
2 |
|
|
10 |
173-4706
|
Washer M5 shakeproof |
1 |
|
|
11 |
173-4765
|
Barrier sheet |
1 |
|
|
12 |
173-2845
|
Strain relief |
1 |
|
|
13 |
173-2846
|
Spacer |
1 |
|
|
14 |
173-7427
|
14amp circuit breaker |
1 |
|
|
