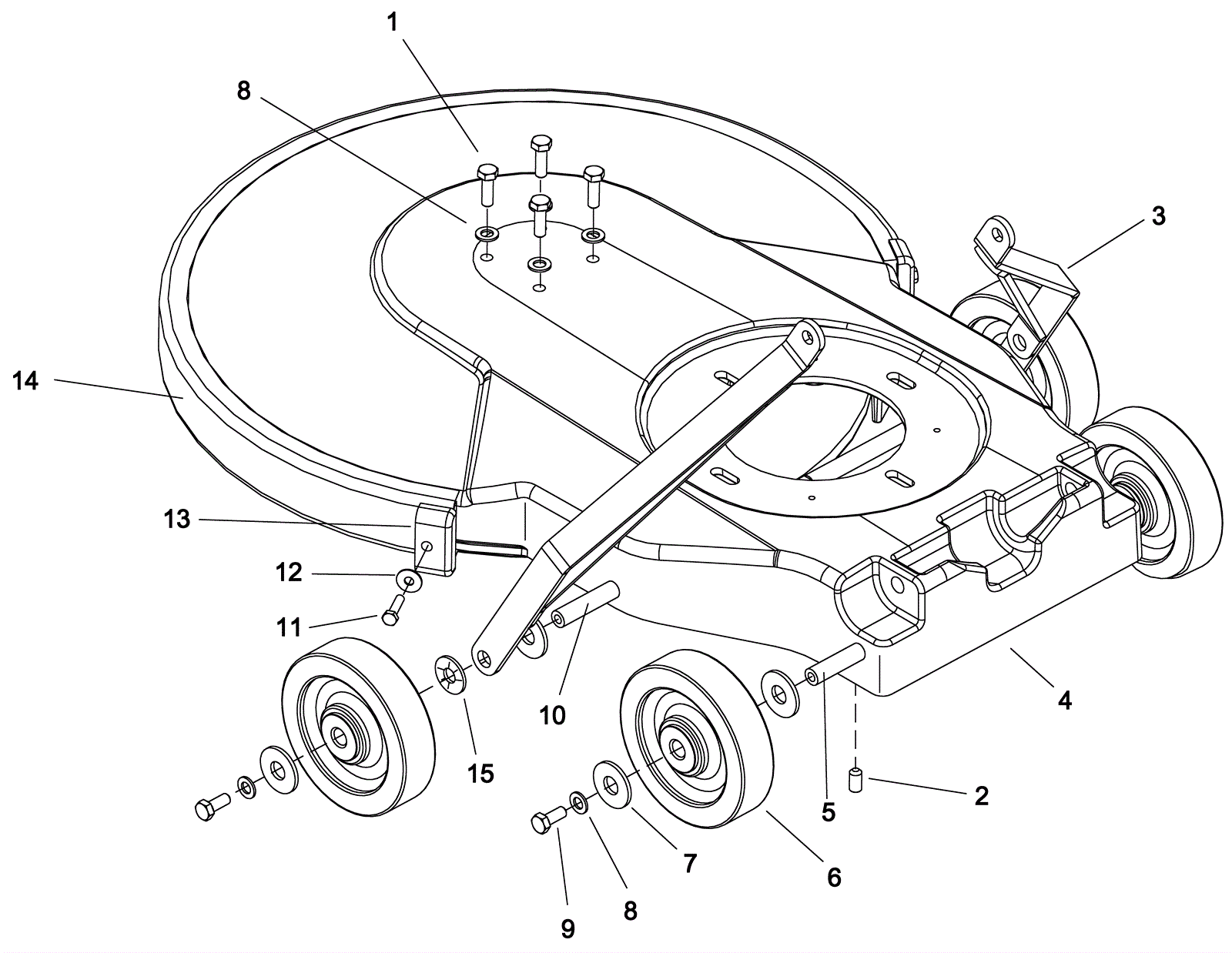

Deck Assembly

#PartDescription ReqNotesAvailability
1 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 4
2 999-1339 Screw M8-1.25 x 8mm set cup point 2
3 173-4759 Handle link bracket 2
4a 173-4760 20 inch burnisher deck (blue) 1
4b 173-7424 20 inch burnisher deck (gray) 1
5 173-2829 Main axle (OBSOLETE) 1
6 173-4664 Wheel (gray) 4
7 999-0972 Washer M14 flat 8
8 999-1267 Washer M8 flat zinc 8
9 999-0972 Washer M14 flat 4
10 173-7423 Axle 1
11 999-0779 Screw M6-1 x 25mm hex head plain finish 2
12 999-1261 Washer M6 flat stainless steel 2
13 173-2836 Fixing ram protection 2
14 173-4761 44.30 inch extrusion bumper 1
15 173-2834 Nut 1/2 flat push 2
