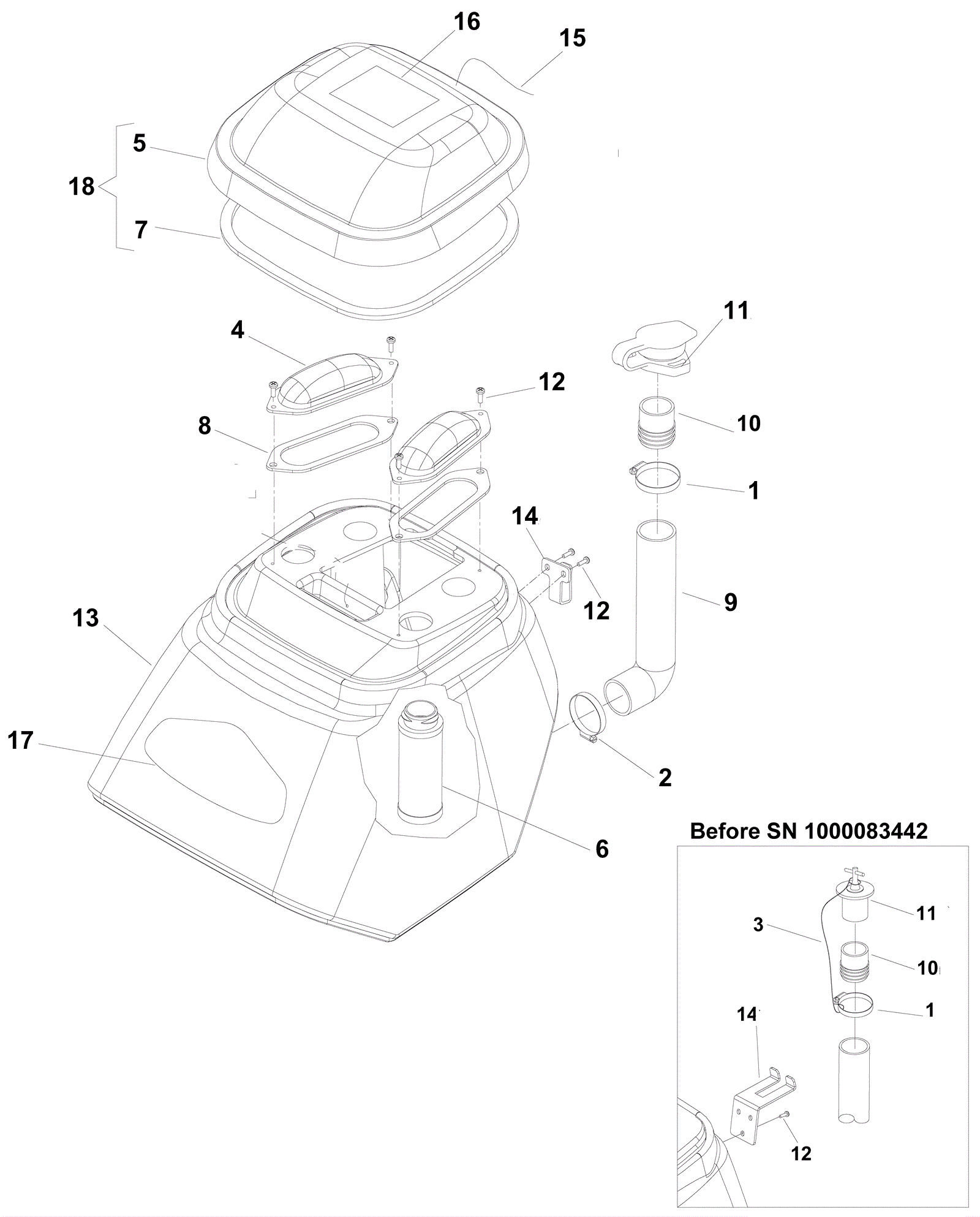

CADET CDT7 Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1a 189-0329 Hose clamp $28.58 1 (after SN 1000083443) usually ships 1-5 days
1b 189-4122 Hose clamp $9.85 1 (before SN 1000083442) usually ships 7-19 days
2 273-5693 Hose clamp $2.58 1 ships same day
3 189-4123 Drain plug tether $25.60 1 ships same day
4 173-2224 Recovery tank lid $8.20 2 ships same day
5 173-2002 Tank lid $58.50 1 ships same day
6 189-4142 Shut-off float $133.88 1 usually ships 11-24 days
7 173-2003 Tank lid gasket $61.01 1 ships same day
8 189-4144 Recovery tank lid gasket $20.02 2 ships same day
9 173-2106 Drain hose 1 1/2 x 12 inch $39.78 1 usually ships 7-19 days
10 189-4130 1/2 inch hosebarb $25.40 1 usually ships 11-24 days
11a 173-5208 Drain plug $17.80 1 (after SN 1000083443) usually ships 7-19 days
11b 173-1213 Drain plug $106.21 1 (before SN 1000083442) usually ships 7-19 days
12 173-2454 Screw 10-3/4 polyfast $1.27 6 ships same day
13 173-5209 Recovery tank $370.00 1 usually ships 1-5 days
14a 173-5210 Hose mounting bracket (OBSOLETE) $39.80 1 (after SN 1000083443) usually ships 7-19 days
14b 189-4135 Hose mounting bracket $81.83 1 (before SN 1000083442) usually ships 11-24 days
15 173-3412 Cord 1/8 x 12 inch $11.90 1 usually ships 7-19 days
16 173-2228 Warning decal $12.40 1 usually ships 1-5 days
17 173-5211 Main label $28.30 1 usually ships 1-5 days
18 189-4145 Recovery tank lid assembly $121.02 1 (includes 5 and 7) ships same day
