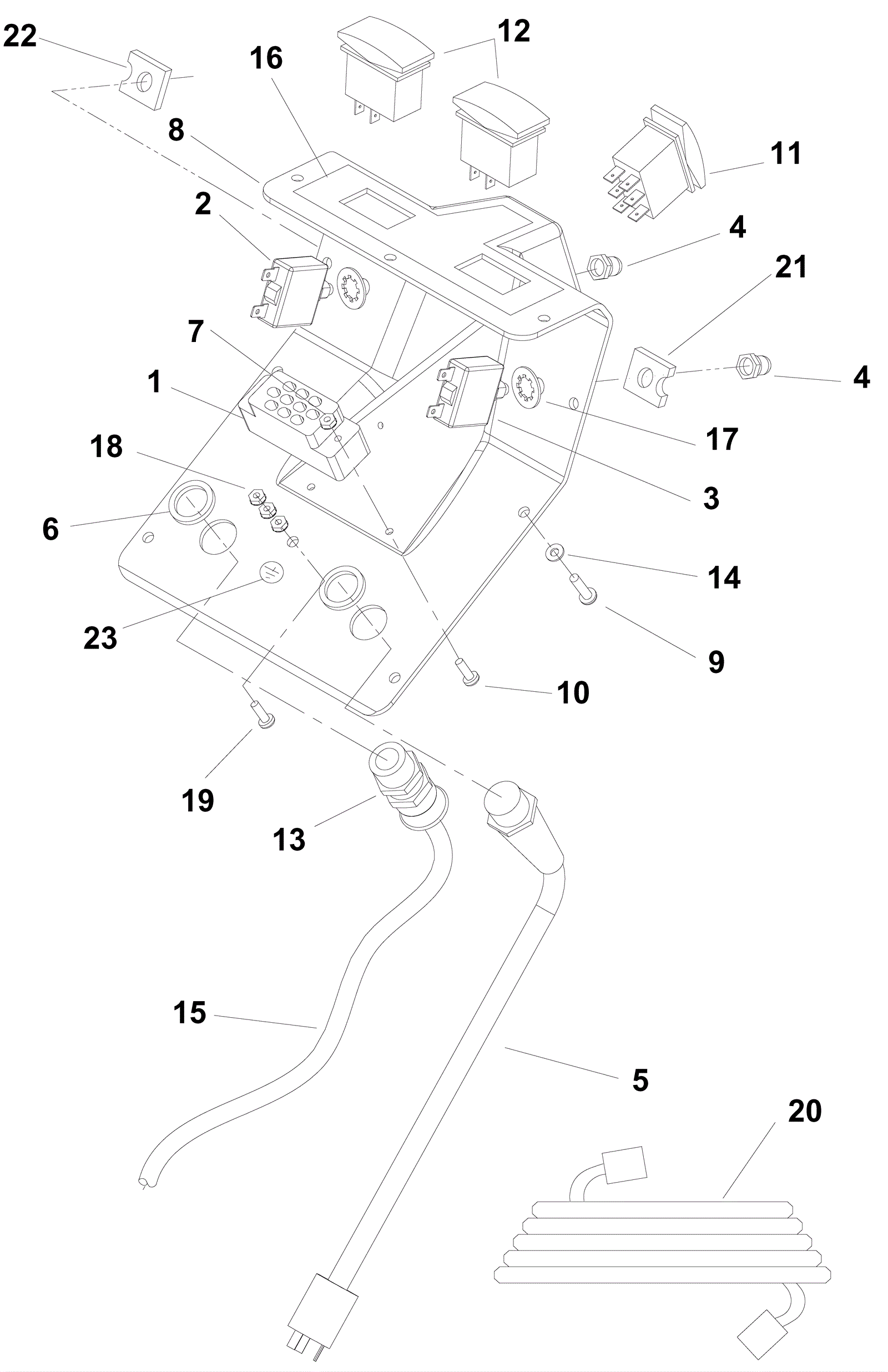

CADET CDT7 Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-1888 Terminal block $50.50 1 usually ships 7-19 days
2 189-4092 15amp circuit breaker $14.14 1 (vacuum motor) usually ships 7-19 days
3 173-2053 6amp circuit breaker $43.20 1 (brush motor) usually ships 7-19 days
4 189-0312 3/8 inch circuit breaker boot $54.32 2 usually ships 11-24 days
5 189-4164 14/3 pigtail cord with twist lock 22 inch $109.25 1 usually ships 11-24 days
6 173-2478 Nut 1/2 conduit nickel plated thread (OBSOLETE) $0.90 2 usually ships 7-19 days
7 173-2522 Nut 6-32 with star washer $0.90 2 usually ships 1-5 days
8 273-4009 Control panel $356.00 1 usually ships 1-5 days
9 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 9 (after SN 1000032157) ships same day
10 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 ships same day
11 189-4165 3 position rocker switch $52.01 1 (brush) ships same day
12 189-0319 2 position rocker switch $54.02 2 (pump and vacuum motor) usually ships 1-5 days
13 173-0682 Strain relief $2.37 1 usually ships 7-19 days
14 173-2808 Washer 7/32 x 1/2 stainless steel (black) $1.56 9 usually ships 1-5 days
15 173-2180 Main harness $220.00 1 usually ships 7-19 days
16 273-4010 Control panel decal $59.50 1 usually ships 1-5 days
17 173-2518 Washer 1/8 interlock $0.90 2 usually ships 1-5 days
18 173-2472 Nut 10-32 with star washer $0.90 3 usually ships 1-5 days
19 173-2493 Screw 10-32 x 1 phillips head $0.90 1 usually ships 7-19 days
20a 173-2059 14/3 extension cord 50 foot twist lock (yellow) $157.00 1 usually ships 7-19 days
20c 163-0117 14/3 extension cord with twist lock plug 50 foot $82.68 1 ships same day
21 273-4011 Circuit breaker brush decal $1.92 1 usually ships 1-5 days
22 273-4012 Circuit breaker vacuum decal $11.40 1 usually ships 1-5 days
23 173-2188 Ground symbol decal $4.24 1 usually ships 1-5 days
