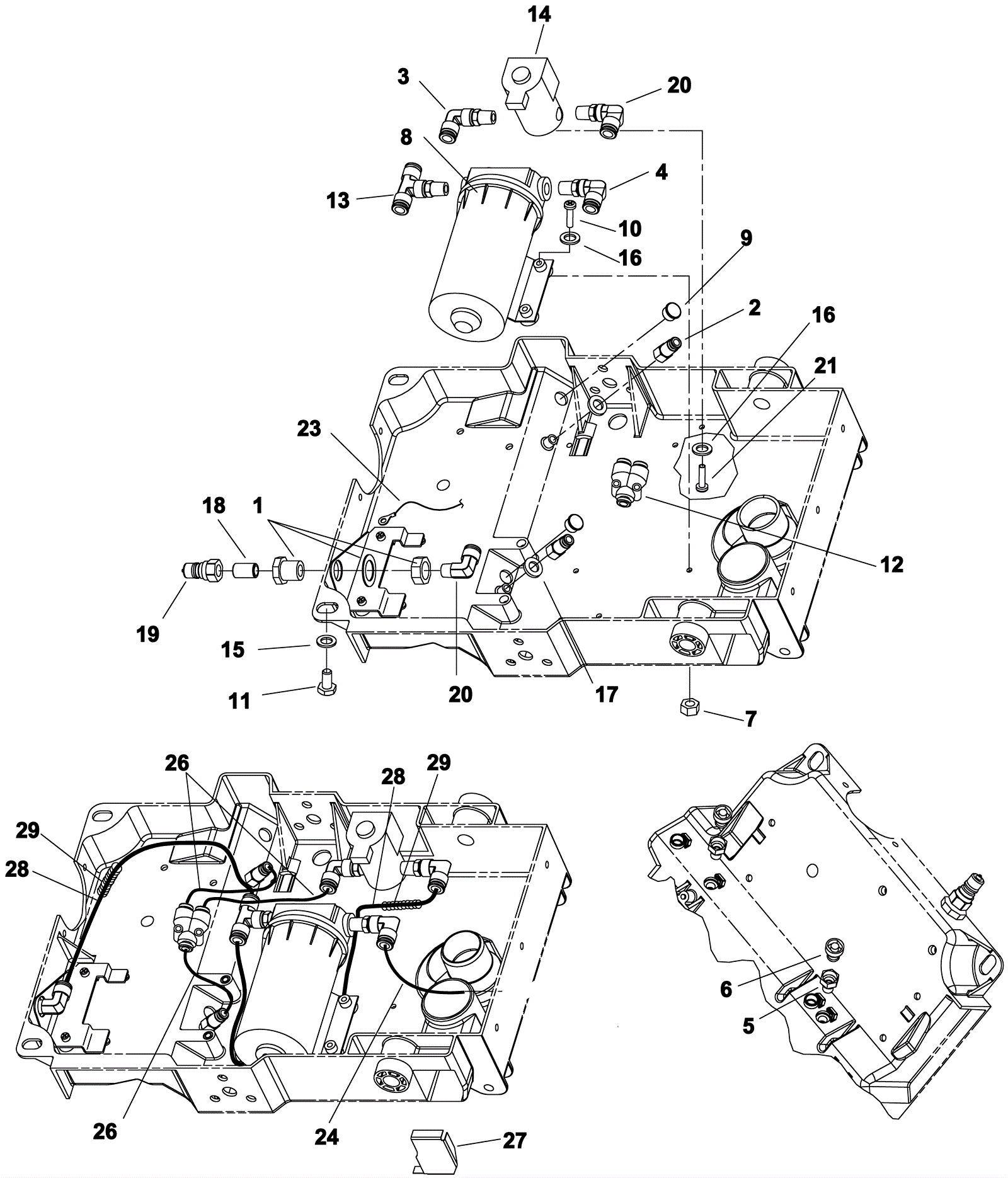

CADET CDT7 Pump Assembly (After SN 1000166663)

#PartDescriptionPriceReqNotesAvailability
1 189-4207 Anchor coupling $65.45 1 usually ships 11-24 days
2 173-2207 Quick connect $18.80 2 usually ships 7-19 days
3 189-4208 90 degree swivel elbow 1/4 x 1/4 inch $53.43 1 usually ships 11-24 days
4 189-4209 90 degree swivel elbow 3/8 x 3/8 inch $72.60 1 usually ships 11-24 days
5 173-2210 Jet body $7.87 2 ships same day
6 173-2211 Mini promax jet $42.08 2 ships same day
7 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
8 173-5333 Pump $499.00 1 usually ships 7-19 days
9 173-2213 Nylon plug (OBSOLETE) $1.92 2 usually ships 7-19 days
10 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated $0.99 2 ships same day
11 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 2 ships same day
12 173-2214 Fitting $48.00 1 usually ships 7-19 days
13 189-4212 Tee fitting 3/8 x 3/8 inch $99.03 1 usually ships 11-24 days
14 173-5332 Solenoid valve $320.06 1 usually ships 7-19 days
15 999-6684 Washer 1/4 flat stainless steel $0.99 2 usually ships 11-24 days
16 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
17 173-2555 Washer 7/16 x 3/16 inch rubber $15.00 2 usually ships 7-19 days
18 273-4004 Nipple 1/4 x 1/4 inch $68.50 1 usually ships 1-5 days
19 273-4005 Coupler $58.50 1 ships same day
20 189-4214 90 degree elbow 1/4 x 3/8 inch $57.22 2 usually ships 11-24 days
21 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 2 ships same day
24 273-4006 Hose 3/8 x 22 inch $9.10 1 usually ships 7-19 days
26 189-4162 Urethane hose 1/4 x 6 inch $4.53 3 ships same day
27 173-2222 Intake screen $38.10 1 usually ships 1-5 days
28 273-4007 Hose 3/8 x 17 inch nylon $13.30 2 usually ships 7-19 days
29 273-4008 Duct 1/2 x 16 inch $9.45 2 usually ships 7-19 days
