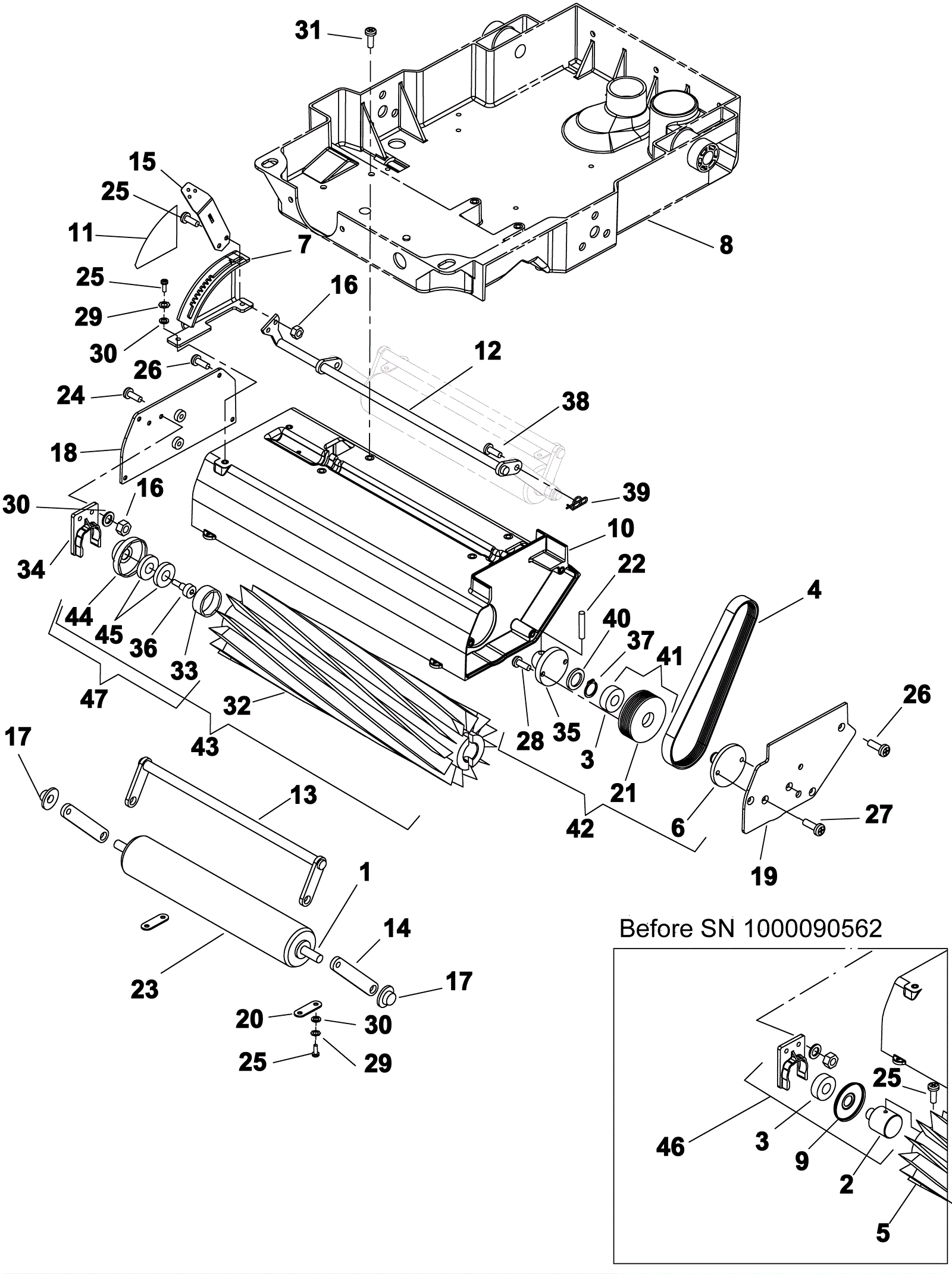

CADET CDT7 Brush Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-2061 Roller axle $34.90 1 usually ships 7-19 days
2 189-4220 Brush bearing adapter $121.02 1 usually ships 11-24 days
3 173-2030 Shielded bearing $53.00 2 usually ships 7-19 days
4 173-2139 Belt $67.01 1 usually ships 7-19 days
5 173-7506 15 inch brush- CYLINDRICAL $252.05 1 ships same day
6 189-4222 Pulley bracket $166.03 1 usually ships 11-24 days
7 173-2142 Brush height bracket $28.30 1 usually ships 7-19 days
8 173-0617 Frame $249.00 1 usually ships 7-19 days
9 189-4152 Threaded guard $30.42 2 usually ships 11-24 days
10 173-0618 15 inch brush housing $157.00 1 usually ships 7-19 days
11 173-6407 Brush height decal $55.50 1 usually ships 7-19 days
12 173-2147 Brush height linkage assembly $90.18 1 usually ships 7-19 days
13 173-2148 Roller support linkage assembly $51.00 1 usually ships 7-19 days
14 173-2149 Front roller link $30.60 2 usually ships 7-19 days
15 173-2150 Height adjustment lever $30.60 1 usually ships 7-19 days
16 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 4 ships same day
17 173-2535 Nut 3/8 push $0.90 2 ships same day
18 173-2151 Right brush housing plate $78.50 1 usually ships 7-19 days
19 173-2152 Left brush housing plate $85.50 1 usually ships 7-19 days
20 173-2153 Axle retainer plate $37.00 2 usually ships 7-19 days
21 173-2154 Pulley $117.00 1 usually ships 1-5 days
22 173-2880 Roll pin $2.42 1 usually ships 7-19 days
23 173-2155 Brush roller $68.01 1 usually ships 7-19 days
24 999-0087 Screw 10-32 x 5/8 flat head slotted zinc plated $0.99 2 ships same day
25 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 6 ships same day
26 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel $0.99 7 ships same day
27 999-0417 Screw 10-24 x 3/4 flat head slotted zinc plated $0.99 2 ships same day
28 999-0322 Screw 10-24 x 1/2 socket head alloy plain finish $0.99 2 ships same day
29 999-0311 Washer #10 external star lock zinc plated $0.99 4 ships same day
30 999-0998 Washer #10 flat stainless steel $0.99 6 ships same day
32 173-7506 15 inch brush- CYLINDRICAL $252.05 1 (after SN 1000090563) ships same day
33 173-5220 Tolerance ring 7/8 inch $2.15 1 ships same day
34 189-4155 Bearing clip $7.80 1 ships same day
35 189-4234 Brush driver $3.36 1 usually ships 11-24 days
36 999-1392 Bolt 3/8 x 3/8 shoulder stainless steel $12.45 1 ships same day
37 173-1059 Snap ring $1.80 1 usually ships 7-19 days
38 173-2158 Clevis pin (OBSOLETE) $5.00 2 usually ships 7-19 days
39 173-1130 Cotter ring $2.20 2 usually ships 7-19 days
40 189-4238 Spacer $2.16 1 usually ships 1-5 days
41 189-4239 Brush pulley assembly $220.07 1 usually ships 11-24 days
42 189-4156 Brush driver assembly $844.40 1 (includes 3, 6, 21, 28, and 35) ships same day
43 173-7506 15 inch brush- CYLINDRICAL $252.05 1 (includes 32, 33, 36, 44, 45, and 47) ships same day
44 173-5223 Brush bearing adapter $34.70 1 (after SN 100090563) ships same day
45 173-5224 Bearing $37.80 2 (after SN 100090563) usually ships 7-19 days
46 173-4099 Brush bearing assembly kit $160.03 1 (includes 2, 3, and 9) (before SN 1000090562) ships same day
47 173-4152 Brush bearing kit $122.00 1 (inlcudes 33, 36, 44, and 45)(after SN 1000090563) ships same day
N/S 273-6399 Filter kit $206.00 1 usually ships 1-5 days
