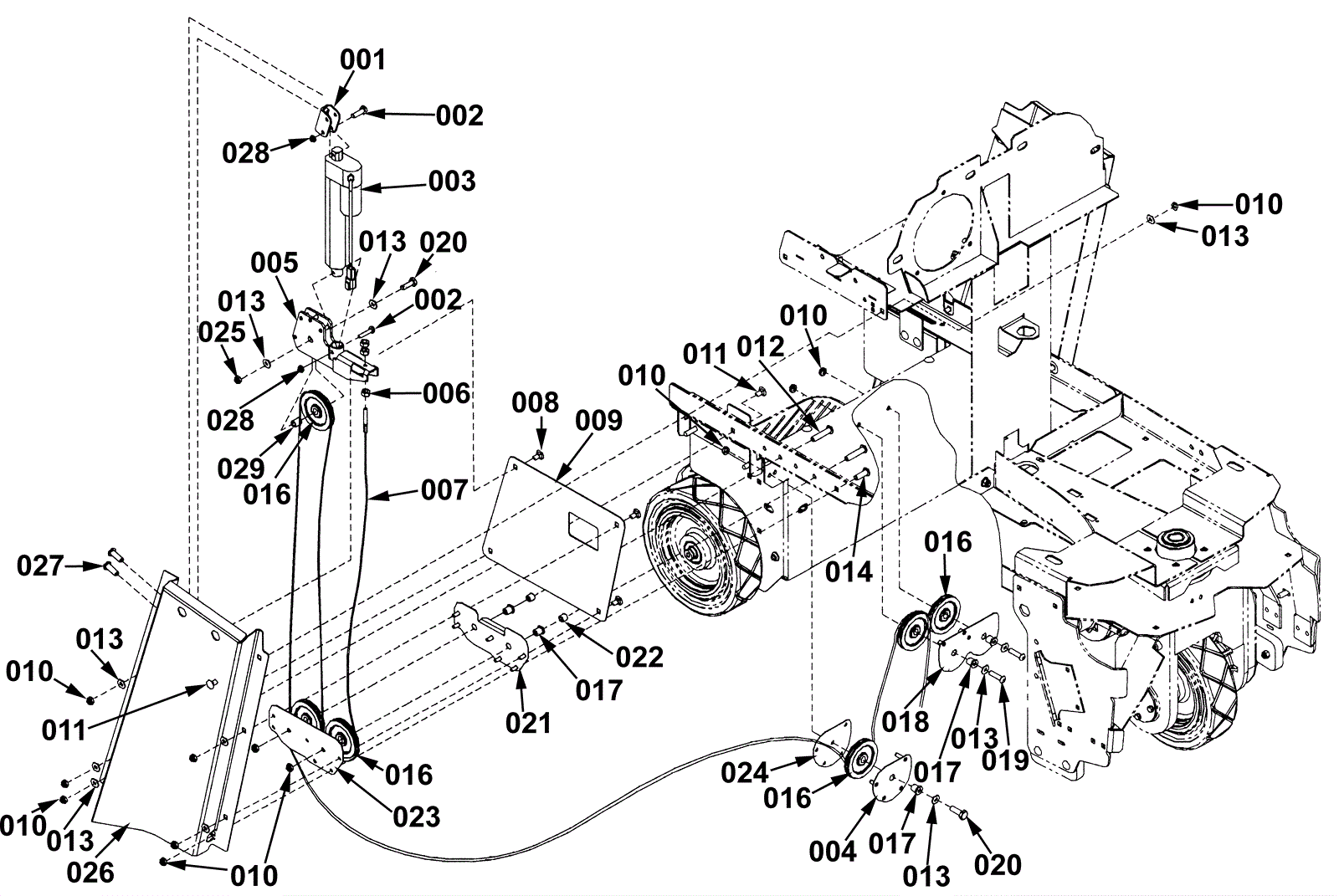

GLADIATOR SCXU24X Deluxe Squeegee Lift Assembly

#PartDescriptionPriceReqNotesAvailability
001 273-0014 Actuator mounting bracket $64.90 1 usually ships 1-5 days
003 273-0015 Stroke actuator with mounting bracket $580.80 1 usually ships 7-19 days
004 273-0016 Mounting plate $53.13 1 usually ships 1-5 days
005 273-0017 Pulley mounting bracket $216.70 1 usually ships 1-5 days
006 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 3 ships same day
007 273-0018 Squeegee lifting cable $37.40 1 usually ships 7-19 days
008 273-0019 Screw 5/16-18 x 5/8 carriage stainless steel $4.82 4 usually ships 7-19 days
009 273-0020 Cover $48.40 1 usually ships 7-19 days
010 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 15 ships same day
011 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 3 ships same day
012 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel $1.63 2 ships same day
013 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 10 ships same day
014 999-1343 Screw 5/16-18 x 5/8 hex head stainless steel $1.25 1 ships same day
015 173-2815 Washer 33/64 x 1 thrust $7.81 1 usually ships 7-19 days
016 273-0021 Plastic pulley $52.80 6 usually ships 7-19 days
017 273-0024 Flanged bearing $9.02 5 usually ships 7-19 days
018 273-0025 Pulley mounting plate $42.24 1 usually ships 1-5 days
019 173-3969 Bolt 5/16-18 x 1 1/4 shoulder bolt cap (OBSOLETE) $6.38 2 usually ships 7-19 days
020 999-0552 Bolt 5/16-18 x 1 1/2 hex head stainless steel $1.45 2 ships same day
021 273-0026 Pulley retainer bracket $89.10 1 usually ships 1-5 days
022 173-4095 Spacer (OBSOLETE) $0.99 2 usually ships 7-19 days
023 273-0027 Pulley retainer bracket $21.89 1 usually ships 1-5 days
024 273-0028 Pulley retainer plate $16.39 1 usually ships 1-5 days
025 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 1 ships same day
026 273-0029 Right hand channel bracket $226.60 1 usually ships 1-5 days
027 999-1342 Screw 5/16-18 x 1/2 truss head slotted zinc $0.99 2 ships same day
028 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 2 ships same day
029 173-3117 Bearing $8.75 1 usually ships 1-5 days
