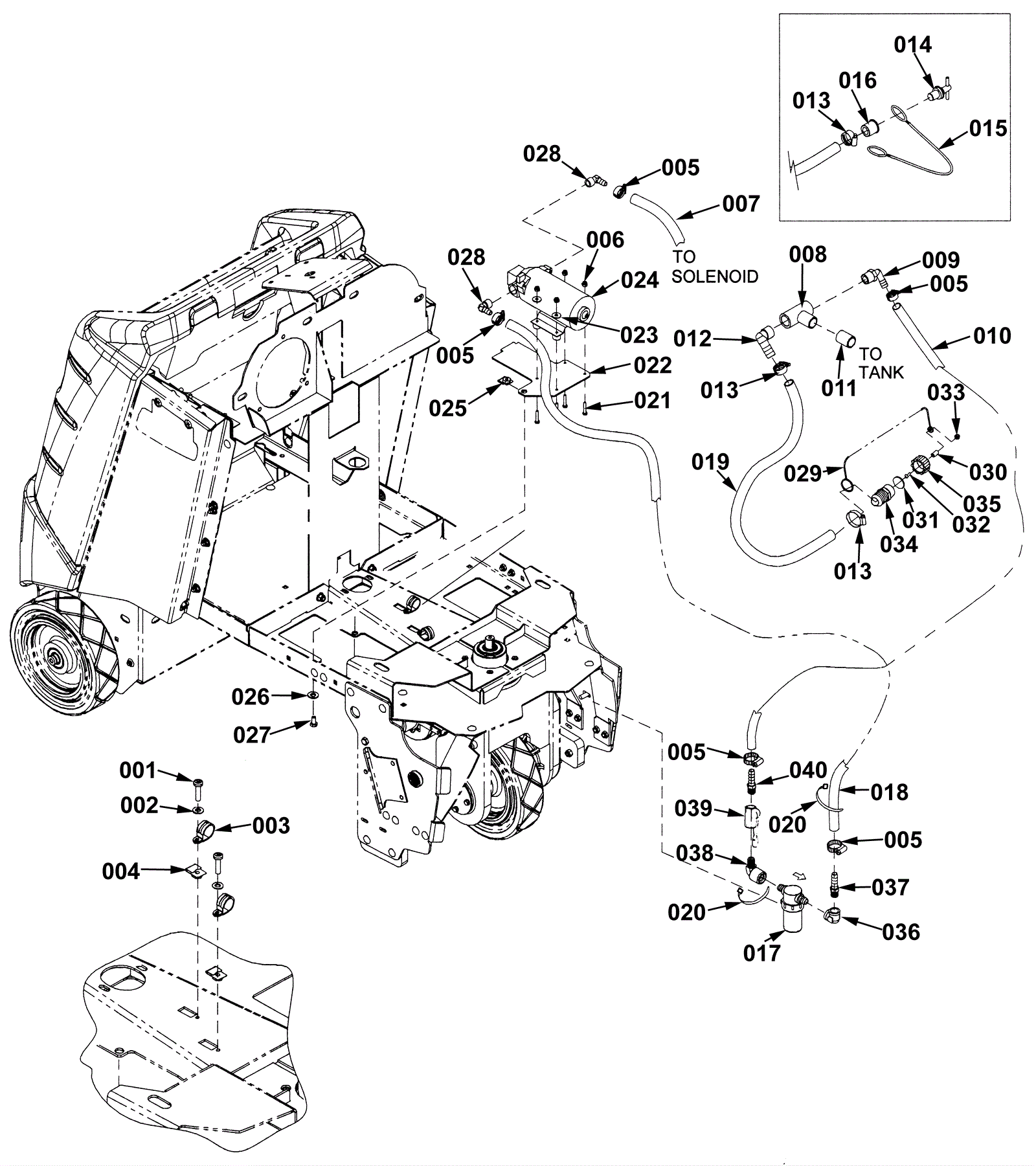

GLADIATOR SCXU24X Solution Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 2 ships same day
002 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
003 173-1772 P clamp $4.13 2 usually ships 1-5 days
004 173-2576 Nut 10-24 tinnerman (OBSOLETE) $5.35 2 usually ships 7-19 days
005 173-1821 Hose clamp $6.39 5 ships same day
006 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 4 ships same day
007 173-2622 40 inch spring bound hose $52.36 1 usually ships 1-5 days
008 173-3563 3/4 inch female tee fitting $22.44 1 usually ships 7-19 days
009 173-2623 Hosebarb 3/4 x 1/2 inch $12.98 1 usually ships 7-19 days
010 173-8322 Wire bound hose 1/2 x 12 inch $19.58 1 usually ships 7-19 days
011 173-3565 3/4 inch nipple fitting $11.11 1 usually ships 7-19 days
012 273-0002 Hosebarb 3/4 x 1 inch $25.41 1 usually ships 7-19 days
013 173-1079 Hose clamp (OBSOLETE) $2.06 2 usually ships 7-19 days
014 173-2794 Drain hose plug $27.39 1 ships same day
015 273-0003 Nylon strap $3.26 1 usually ships 1-5 days
016 189-0339 Sleeve (OBSOLETE) $13.20 1 usually ships 7-19 days
017a 173-1089 Solution filter assembly $9.74 1 ships same day
017b 173-3050 O-ring gasket $6.49 usually ships 7-19 days
017c 189-4023 Solution filter screen $60.59 usually ships 7-19 days
018 173-9037 Wire bound hose 1/2 x 32 inch $44.33 1 usually ships 7-19 days
019 173-2793 Drain hose $53.13 1 usually ships 7-19 days
020 173-3169 Wire tie $1.03 3 usually ships 1-5 days
021 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated $0.99 4 ships same day
022 273-0005 Solution pump bracket (OBSOLETE) $34.32 1 usually ships 7-19 days
023 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
024 173-2606 36V pump assembly $720.83 1 usually ships 7-19 days
025 173-3935 Nut 5/16-18 captive jam (OBSOLETE) $5.50 1 usually ships 7-19 days
026 999-0028 Washer 5/16 split lock plain finish $0.99 1 ships same day
027 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel $0.99 1 ships same day
028 173-1072 Hosebarb 3/8 x 1/2 inch $9.24 2 usually ships 7-19 days
029 273-0006 Strap $5.94 1 usually ships 7-19 days
030 273-0007 Spacer $1.57 1 usually ships 7-19 days
031 273-0008 O-ring $5.83 1 usually ships 7-19 days
032 999-1445 Screw 8-32 x 1/2 button head $0.99 1 ships same day
033 273-0010 Nut 8/32 acorn cap plated $1.76 1 usually ships 7-19 days
034 273-0011 Hosebarb 1 x 3/4 inch nylon $26.73 1 usually ships 7-19 days
035 273-0012 Cap $33.33 1 usually ships 7-19 days
036 173-1078 3/8 inch elbow $41.47 1 usually ships 7-19 days
037 173-5214 Hosebarb 3/8 x 1/2 inch nylon $14.41 1 usually ships 7-19 days
038 173-0965 3/8 inch street elbow nickel plated $15.73 1 usually ships 7-19 days
039 273-0013 3/8 inch ball valve $64.35 1 usually ships 7-19 days
040 173-3056 Hosebarb 3/8 x 1/2 inch $10.01 1 usually ships 7-19 days
