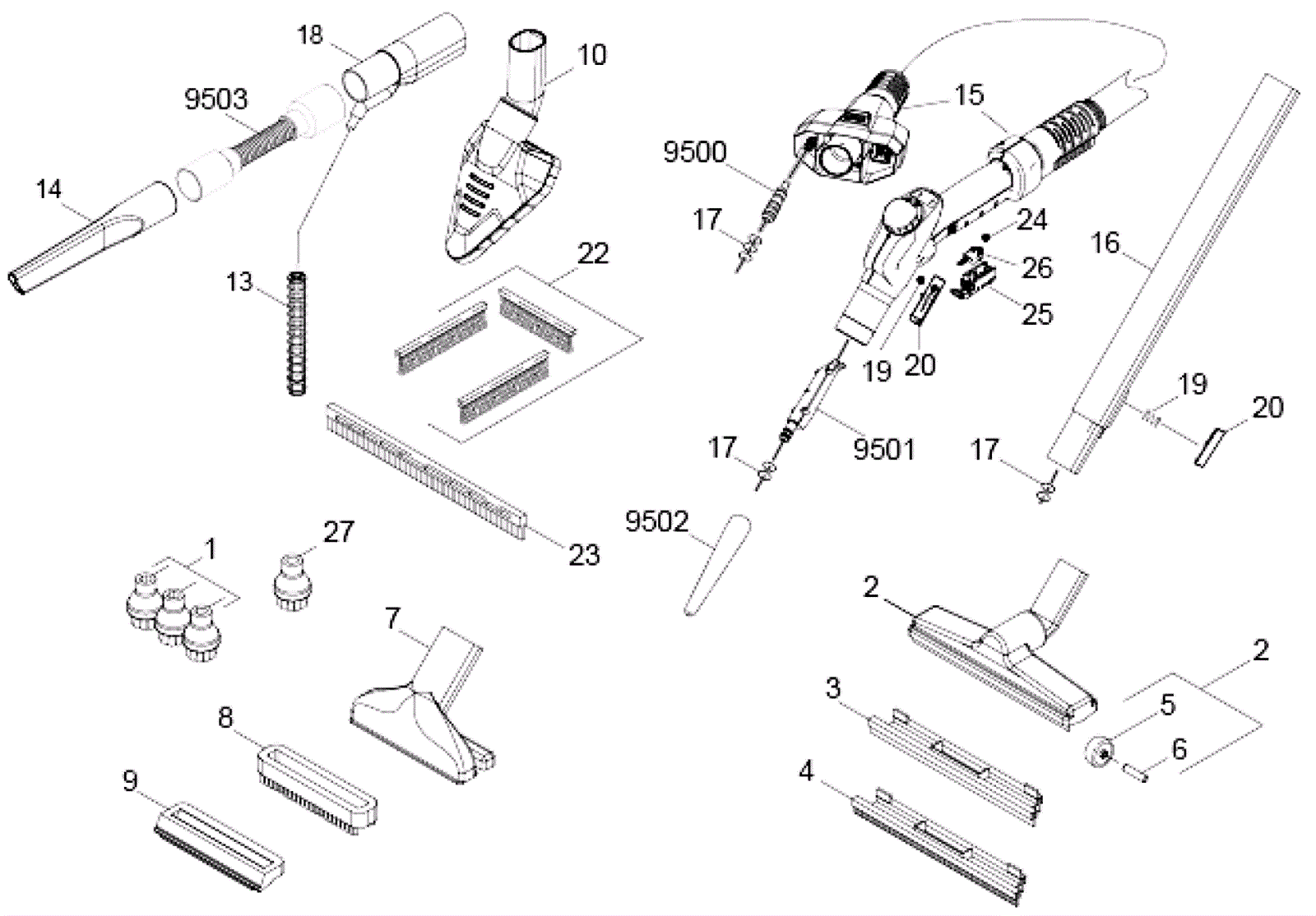

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-6416
|
Round brush set |
1 |
|
|
2 |
173-6417
|
12 inch floor tool |
1 |
(includes 5-6) |
|
3 |
173-6418
|
12 inch rubber strip |
1 |
|
|
4 |
173-6419
|
12 inch brush strip |
1 |
|
|
5 |
173-6420
|
Roller |
2 |
|
|
6 |
173-6421
|
Axle |
2 |
|
|
7 |
173-6422
|
6 inch hand nozzle |
1 |
|
|
8 |
173-6423
|
6 inch brush strip |
1 |
|
|
9 |
173-6424
|
6 inch rubber strip |
1 |
|
|
10 |
173-6425
|
Triangle nozzle |
1 |
|
|
13 |
173-6426
|
Extension adapter |
1 |
|
|
14 |
173-6427
|
8 inch crevice nozzle |
1 |
|
|
15 |
373-1340
|
Suction hose assembly |
1 |
|
|
16 |
173-6428
|
Extension pipe |
2 |
|
|
17 |
173-6429
|
O-ring seal |
9 |
|
|
18 |
173-6430
|
Adapter |
1 |
|
|
19 |
173-6431
|
Spring |
2 |
|
|
20 |
173-6432
|
Locking hook |
2 |
|
|
22 |
173-6433
|
Triangle nozzle brush set |
1 |
|
|
23 |
173-6434
|
Triangle nozzle rubber strip |
1 |
|
|
24 |
173-6435
|
Spring |
1 |
|
|
25 |
173-6436
|
Take-off locking part |
1 |
|
|
26 |
173-0794
|
Cable harness |
1 |
|
|
27a |
273-3623
|
Stainless steel bristle brush |
1 |
|
|
27b |
173-6437
|
Round brush pekalon |
1 |
|
|
27c |
173-6438
|
Round brush brass |
1 |
|
|
27d |
173-6439
|
Round brush pekalon (blue) |
1 |
|
|
27e |
173-6440
|
Round brush pekalon (green) |
1 |
|
|
27f |
173-6441
|
Round brush pekalon (yellow) |
1 |
|
|
27g |
173-6442
|
Round brush pekalon (red) |
1 |
|
|
9500 |
173-6443
|
Brass nipple |
1 |
|
|
9501 |
173-6444
|
Brass nipple assembly |
1 |
|
|
9502 |
173-6445
|
Joint ring aid assembly |
1 |
|
|
9503 |
173-6446
|
Vacuum kit for power tools |
1 |
|
|
N/S |
173-6448
|
Connecting sleeve |
1 |
|
|
