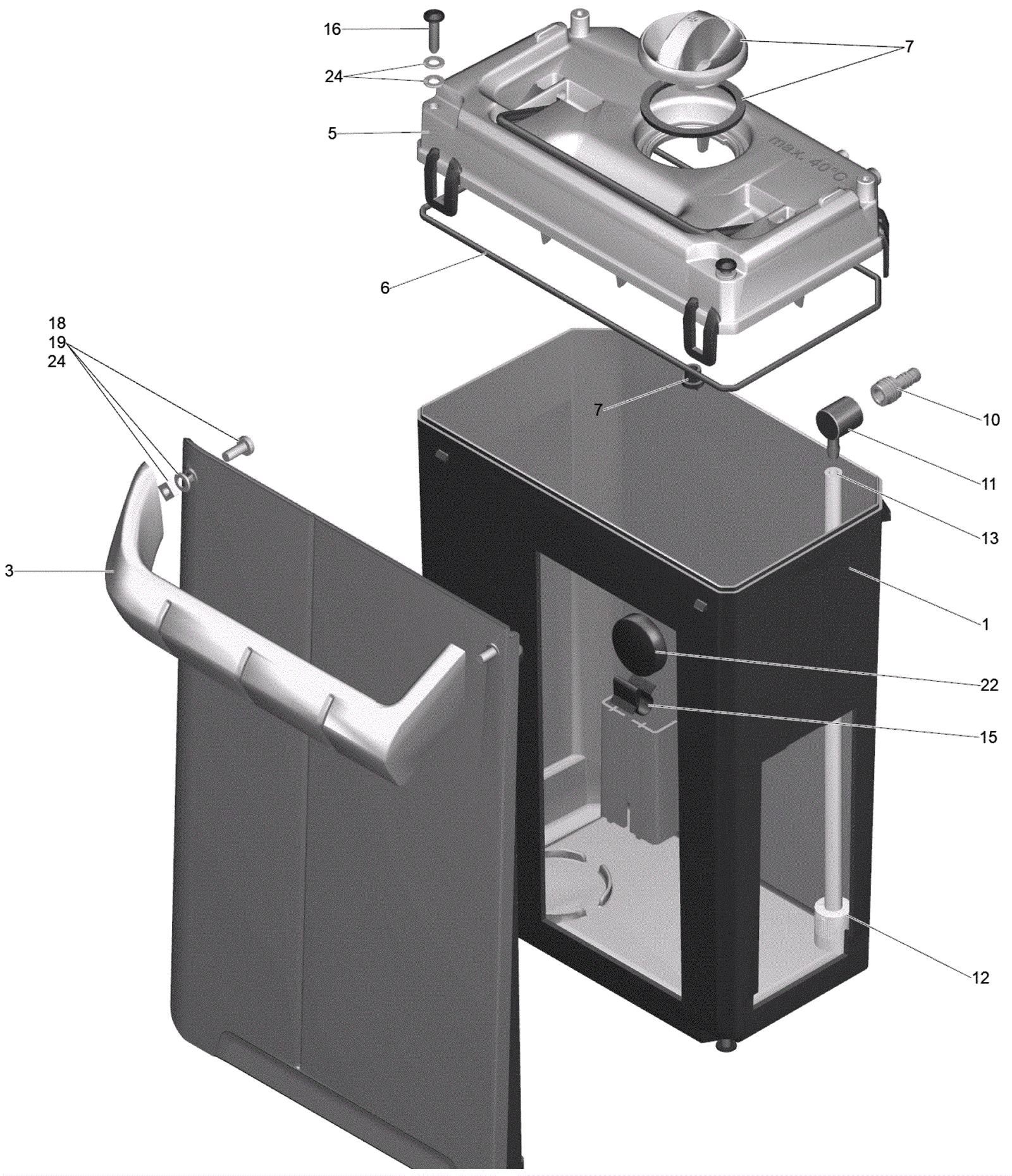

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-4564
|
Fresh water tank |
1 |
|
|
3 |
173-4565
|
Handhold |
1 |
|
|
5 |
173-4566
|
Tank cover |
1 |
|
|
6 |
173-4567
|
Round cord seal |
1 |
|
|
7 |
173-4568
|
Fuel tank filler cap |
1 |
(includes 173-6410) |
|
10 |
173-4569
|
Nipple connection box |
1 |
|
|
11 |
173-0774
|
Elbow nipple |
1 |
|
|
13 |
173-4535
|
Hose |
.5 feet |
(to order as cut goods) |
|
15 |
173-4548
|
Clamp |
1 |
|
|
16 |
173-6202
|
Screw M5 x 20mm |
4 |
|
|
18 |
173-4570
|
Nut M5 square |
2 |
|
|
19 |
999-6690
|
Screw M5-.8 x 12mm hex head stainless steel |
2 |
|
|
22 |
173-4549
|
Float |
1 |
|
|
24 |
273-8124
|
Washer |
6 |
|
|
N/S |
173-6409
|
Screen |
1 |
|
|
N/S |
173-6410
|
Ventilating valve |
1 |
(included with 7) |
|
