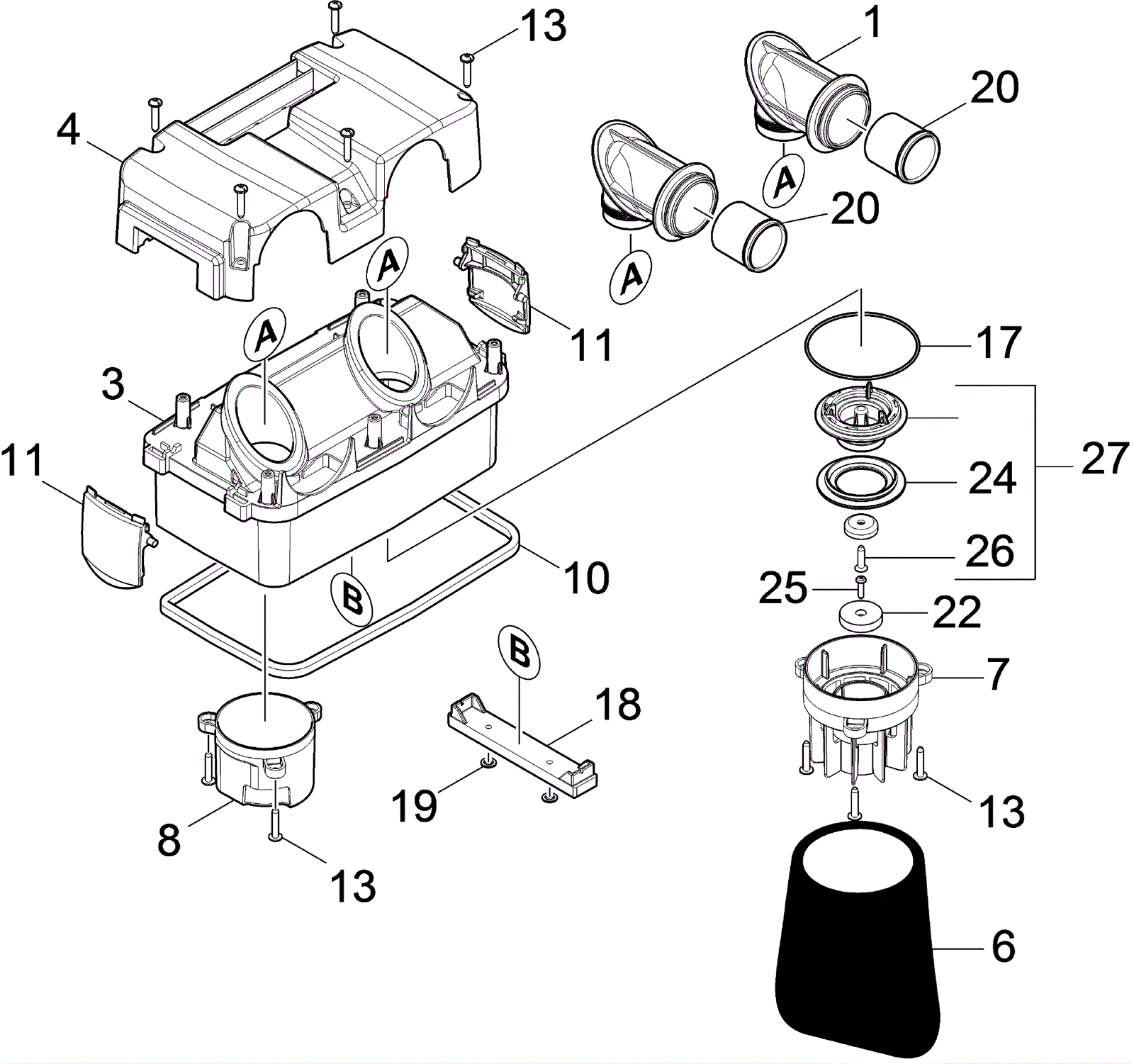

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-4550
|
Waste water box adapter |
2 |
|
|
3 |
173-4551
|
Waste water cover |
1 |
|
|
4 |
173-4552
|
Cover |
1 |
|
|
6 |
173-4553
|
Filter |
1 |
|
|
7 |
173-4554
|
Air exhaust housing |
1 |
|
|
8 |
173-4555
|
Air supply pot |
1 |
|
|
10 |
173-4556
|
Cover seal |
1 |
|
|
11 |
173-4557
|
Locking clip |
2 |
|
|
13 |
273-0977
|
Screw M5-10.9 x 30mm |
11 |
|
|
17 |
173-4558
|
Valve seal |
1 |
|
|
18 |
173-4559
|
Stay |
1 |
|
|
19 |
173-0792
|
Steel quick fastener |
2 |
|
|
20 |
173-4560
|
Sleeve |
1 |
|
|
22 |
173-4561
|
Magnet washer |
1 |
|
|
24 |
173-4562
|
Valve plate seal |
1 |
|
|
25 |
173-4378
|
Screw |
1 |
|
|
26 |
173-0780
|
Screw M5 x 20 countersunk |
1 |
|
|
27 |
173-4563
|
Magnet set |
1 |
(includes 24 and 26) |
|
