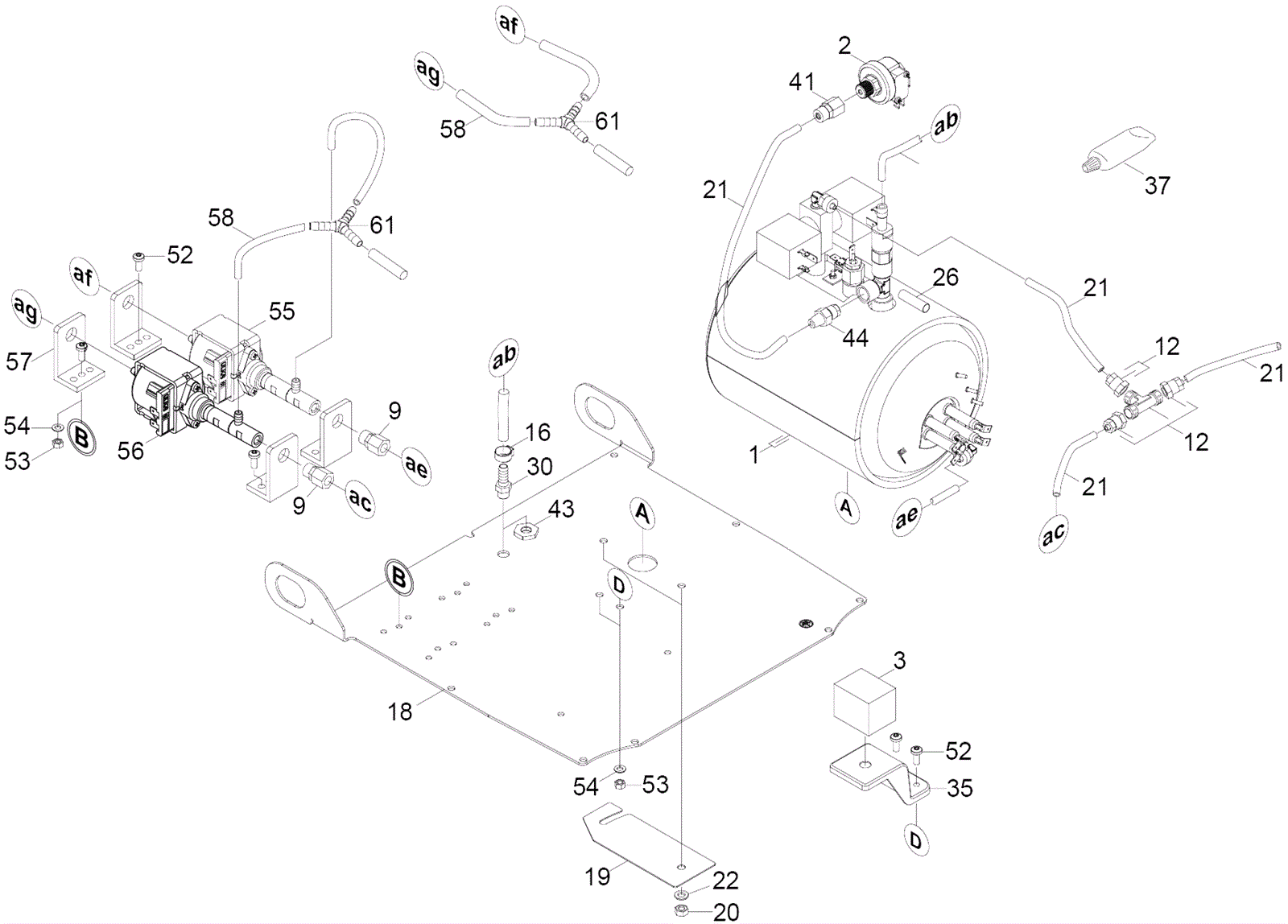

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-4520
|
Boiler |
1 |
|
|
2 |
173-4521
|
Pressure switch |
1 |
|
|
3 |
173-4522
|
Thermostat assembly |
1 |
|
|
9 |
173-4523
|
Connector screw |
2 |
|
|
12 |
173-4524
|
1/8 inch y connection |
1 |
|
|
16 |
173-5843
|
Hose clip with insert |
2 |
|
|
18 |
N/A
|
Not available |
1 |
(plate) |
|
19 |
173-4525
|
Drain cover plate |
1 |
|
|
20 |
183-0262
|
Hex nut |
2 |
|
|
21 |
173-4526
|
Hose 6 x 4 inch |
3 feet |
|
|
22 |
173-6297
|
Washer |
2 |
|
|
26 |
173-4527
|
Sleeve (silicon) |
2 |
|
|
30 |
173-4528
|
Nipple |
1 |
|
|
35 |
173-0767
|
Pressure switch holder |
1 |
|
|
37 |
N/A
|
Not available |
1 |
(stockpiling) |
|
41 |
173-4529
|
Connector screw |
4 |
|
|
43 |
173-4530
|
Nut |
1 |
|
|
44 |
173-4531
|
Connector screw |
1 |
|
|
52 |
999-6690
|
Screw M5-.8 x 12mm hex head stainless steel |
6 |
|
|
53 |
999-0740
|
Nut M5-.8 hex stainless steel |
6 |
|
|
54 |
273-8124
|
Washer |
6 |
|
|
55 |
173-4532
|
Complete pump |
1 |
|
|
56 |
173-4533
|
Water pump |
1 |
|
|
57 |
173-4534
|
Rubber pump bearing |
4 |
|
|
58 |
173-4535
|
Hose |
3 feet |
|
|
61 |
173-4536
|
Hose coupling |
2 |
(to order as cut goods) |
|
N/S |
173-4537
|
Steam hose |
3 feet |
(to order as cut goods) |
|
