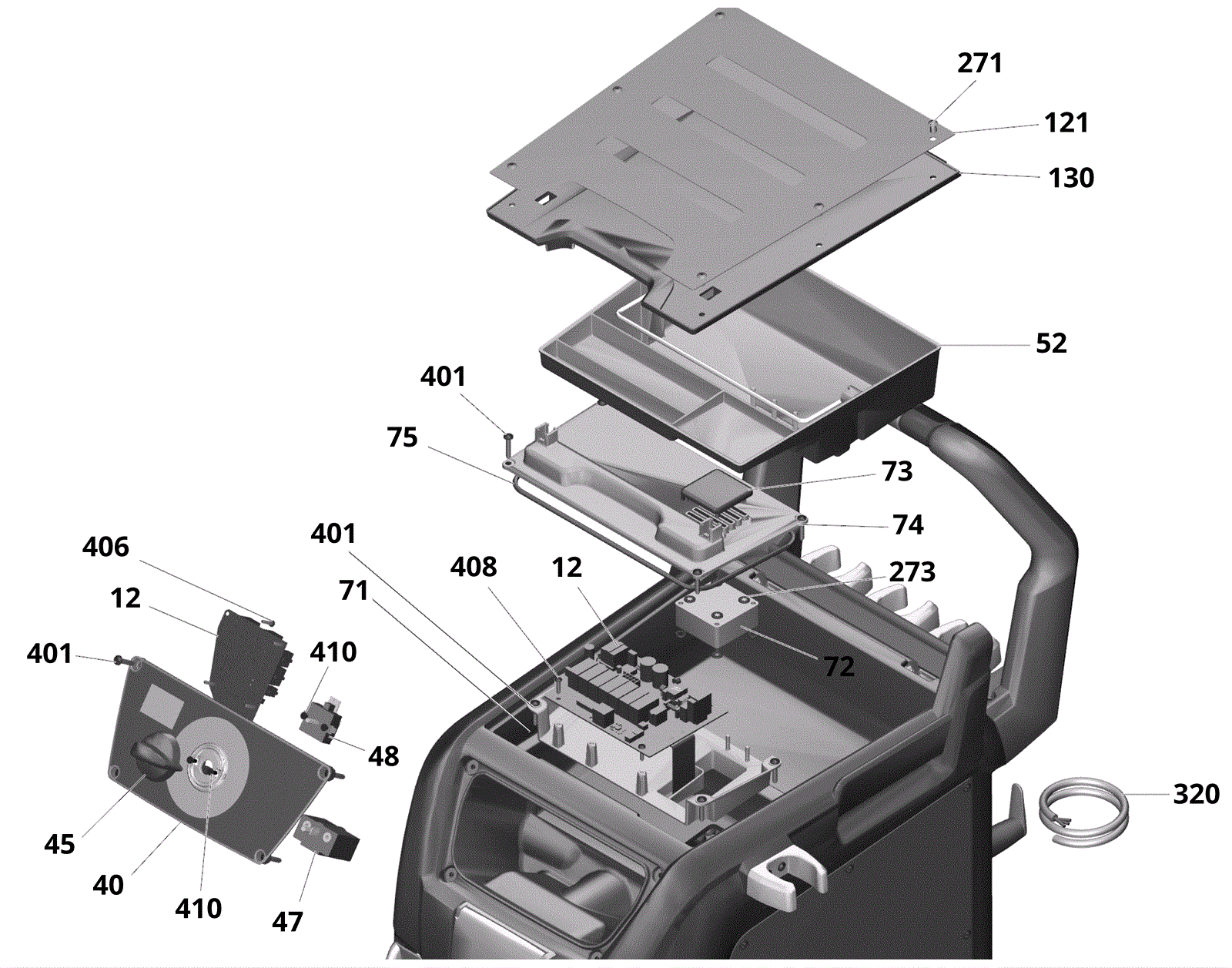

| # | Part | Description |
Req | Notes | Availability |
|---|
12 |
N/A
|
Not available |
1 |
(control system) |
|
40 |
173-0784
|
Control panel |
1 |
|
|
45 |
273-9368
|
Knob w/ spring clip |
1 |
|
|
47 |
273-8494
|
Switch |
1 |
|
|
48 |
273-8496
|
Switch |
1 |
|
|
52 |
173-0786
|
Accessories tub |
1 |
|
|
71 |
173-0787
|
Electronics carrier |
1 |
|
|
72 |
173-0782
|
Blower |
1 |
|
|
73 |
173-0788
|
Blower covering cap |
1 |
|
|
74 |
173-0789
|
Electronics cover |
1 |
|
|
75 |
173-0790
|
Electronics cover string seal |
1 |
|
|
121 |
173-0791
|
Accessories cover plate |
1 |
|
|
130 |
173-0762
|
Cover accessories |
1 |
|
|
271 |
173-0779
|
Expanding rivet |
14 |
|
|
273 |
173-0792
|
Steel quick fastener |
8 |
|
|
320 |
173-0793
|
Power cable |
1 |
|
|
401 |
999-1425
|
Screw M5-.8 x 25mm pan head stainless steel |
53 |
|
|
406 |
273-9980
|
Screw 3.5 x 16 |
4 |
|
|
408 |
173-4378
|
Screw |
5 |
|
|
410 |
999-9104
|
Screw M4-.7 x 10mm hex head stainless steel |
4 |
|
|
N/S |
173-0794
|
Cable harness |
1 |
|
|
N/S |
173-4506
|
Cable harness |
1 |
|
|
N/S |
173-4507
|
Insulation sheath |
2 |
|
|
N/S |
273-4485
|
Cable tie |
4 |
|
|
