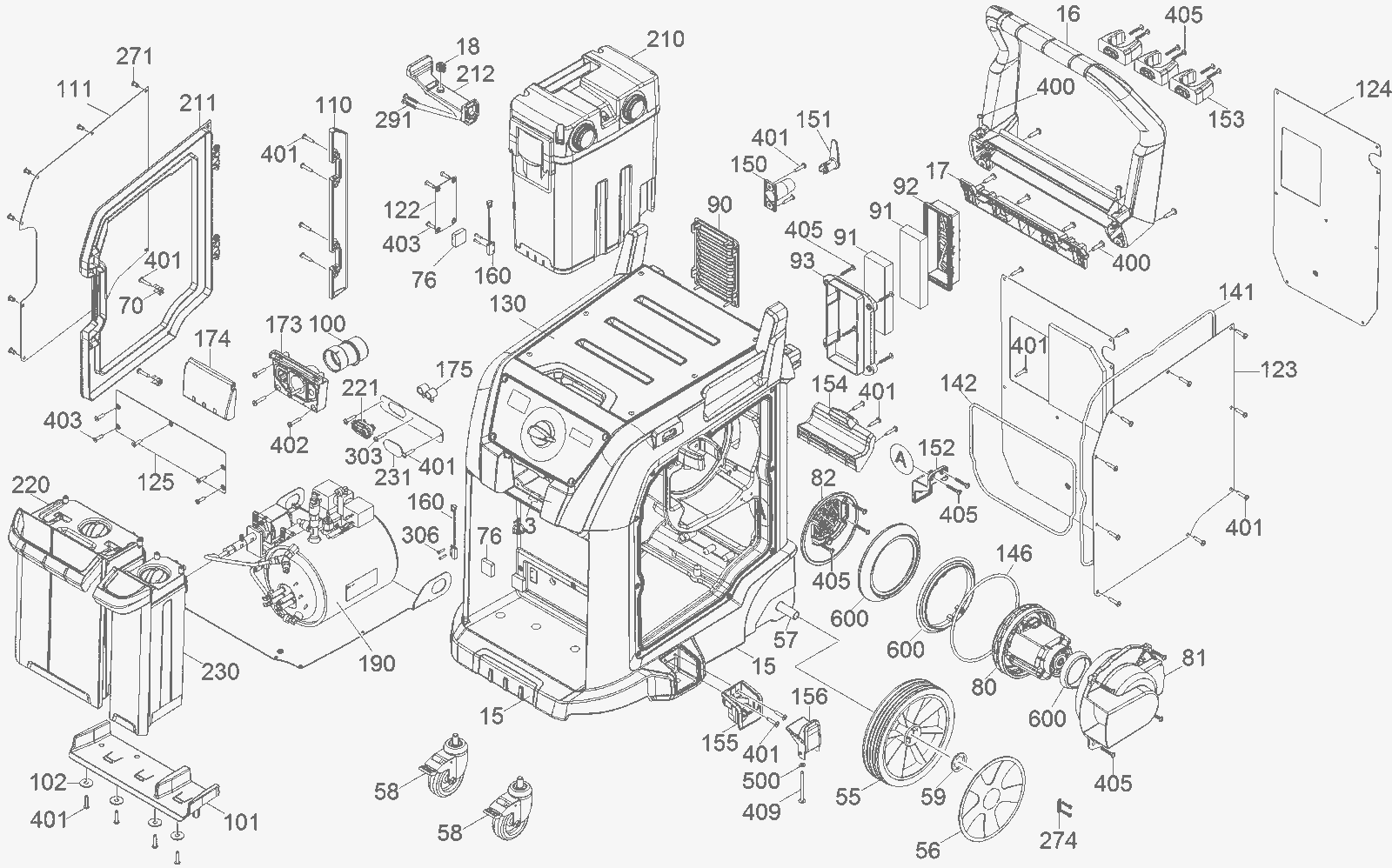

| # | Part | Description |
Req | Notes | Availability |
|---|
13 |
173-0738
|
Warning decal |
1 |
|
|
15 |
173-0739
|
Frame base |
1 |
|
|
16 |
173-0740
|
Retaining bracket |
1 |
|
|
17 |
173-0741
|
Screen retaining bracket |
1 |
|
|
18 |
173-0742
|
Helical spring |
1 |
|
|
55 |
173-0743
|
Wheel (gray) |
2 |
|
|
56 |
173-0744
|
Wheel caps set |
1 |
|
|
57 |
173-0745
|
Axle |
1 |
|
|
58 |
173-5788
|
Caster wheel with brake |
2 |
|
|
59 |
273-0976
|
Hub clip |
2 |
|
|
70 |
273-5846
|
Spring clip |
6 |
|
|
76 |
173-0746
|
Reedsensor seal |
3 |
|
|
80 |
173-0747
|
120V suction blower |
1 |
|
|
81 |
173-0748
|
Blower cover |
1 |
|
|
82 |
173-0749
|
Air supply grate |
1 |
|
|
90 |
173-0750
|
Exhaust opening grate |
1 |
|
|
91 |
173-0751
|
Filter |
1 |
|
|
92 |
173-0752
|
Filter housing |
1 |
|
|
93 |
173-0753
|
Blowing filter housing |
1 |
|
|
100 |
173-0754
|
Aspiration adapter |
1 |
|
|
101 |
173-0755
|
Support box |
1 |
|
|
102 |
273-8187
|
Washer |
4 |
|
|
110 |
173-0756
|
Screen hinge |
1 |
|
|
111 |
173-0757
|
Right hand door plate |
1 |
|
|
122 |
173-0758
|
Waste water sensor plate |
2 |
|
|
123 |
173-0759
|
Left hand side panel |
1 |
|
|
124 |
173-0760
|
Rear plate |
1 |
|
|
125 |
173-0761
|
Fresh water sensor plate |
1 |
|
|
130 |
173-0762
|
Cover accessories |
1 |
|
|
141 |
173-0763
|
Side plate string seal |
1 |
|
|
142 |
173-0764
|
Rear covering string seal |
1 |
|
|
146 |
173-0765
|
Cellular rubber gasket |
1 |
|
|
150 |
173-0766
|
Cable holder hook |
2 |
|
|
151 |
273-8868
|
Cable catch (yellow) |
2 |
|
|
152 |
173-0767
|
Pressure switch holder |
1 |
|
|
153 |
173-0768
|
Suction tube holder |
4 |
|
|
154 |
173-0769
|
Floor nozzle holder |
1 |
|
|
155 |
173-0770
|
Flushing holder |
1 |
|
|
156 |
N/A
|
Not available |
1 |
(flap) |
|
160 |
173-0771
|
Level switch (reed sensor) |
2 |
|
|
173 |
173-0772
|
Plug socket |
1 |
|
|
174 |
173-0773
|
Plug socket covering cap |
1 |
|
|
175 |
173-0774
|
Elbow nipple |
2 |
|
|
190 |
N/A
|
Not available |
1 |
(boiler) |
|
210 |
N/A
|
Not available |
1 |
(waste water tank) |
|
211 |
173-0775
|
Right hand screen door |
1 |
|
|
212 |
173-0776
|
Waste water locking bar |
1 |
|
|
220 |
N/A
|
Not available |
1 |
(fresh water tank) |
|
221 |
173-0777
|
Tank valve |
1 |
|
|
230 |
N/A
|
Not available |
1 |
(chemistry) |
|
231 |
173-0778
|
Footwell gasket |
1 |
|
|
271 |
173-0779
|
Expanding rivet |
14 |
|
|
274 |
183-2085
|
Clamp clip |
1 |
|
|
291 |
N/A
|
Not available |
2 |
(screw) |
|
303 |
N/A
|
Not available |
3 |
(screw) |
|
306 |
N/A
|
Not available |
2 |
(screw) |
|
400 |
273-6049
|
Screw 6-10.9 x 25mm |
17 |
|
|
401 |
999-1425
|
Screw M5-.8 x 25mm pan head stainless steel |
53 |
|
|
402 |
273-7485
|
Screw M5 x 25 |
4 |
|
|
403 |
173-0780
|
Screw M5 x 20 countersunk |
9 |
|
|
405 |
273-0977
|
Screw M5-10.9 x 30mm |
22 |
|
|
409 |
N/A
|
Not available |
1 |
(screw M5 x 70mm) |
|
500 |
999-9100
|
Washer M5 flat stainless steel |
1 |
|
|
600 |
173-0781
|
Seal replacement set |
1 |
|
|
N/S |
173-0783
|
Screw M3 x 16mm countersunk |
6 |
|
|
N/S |
273-0962
|
Screw M4-10.9 x 25mm phillips head |
2 |
|
|
