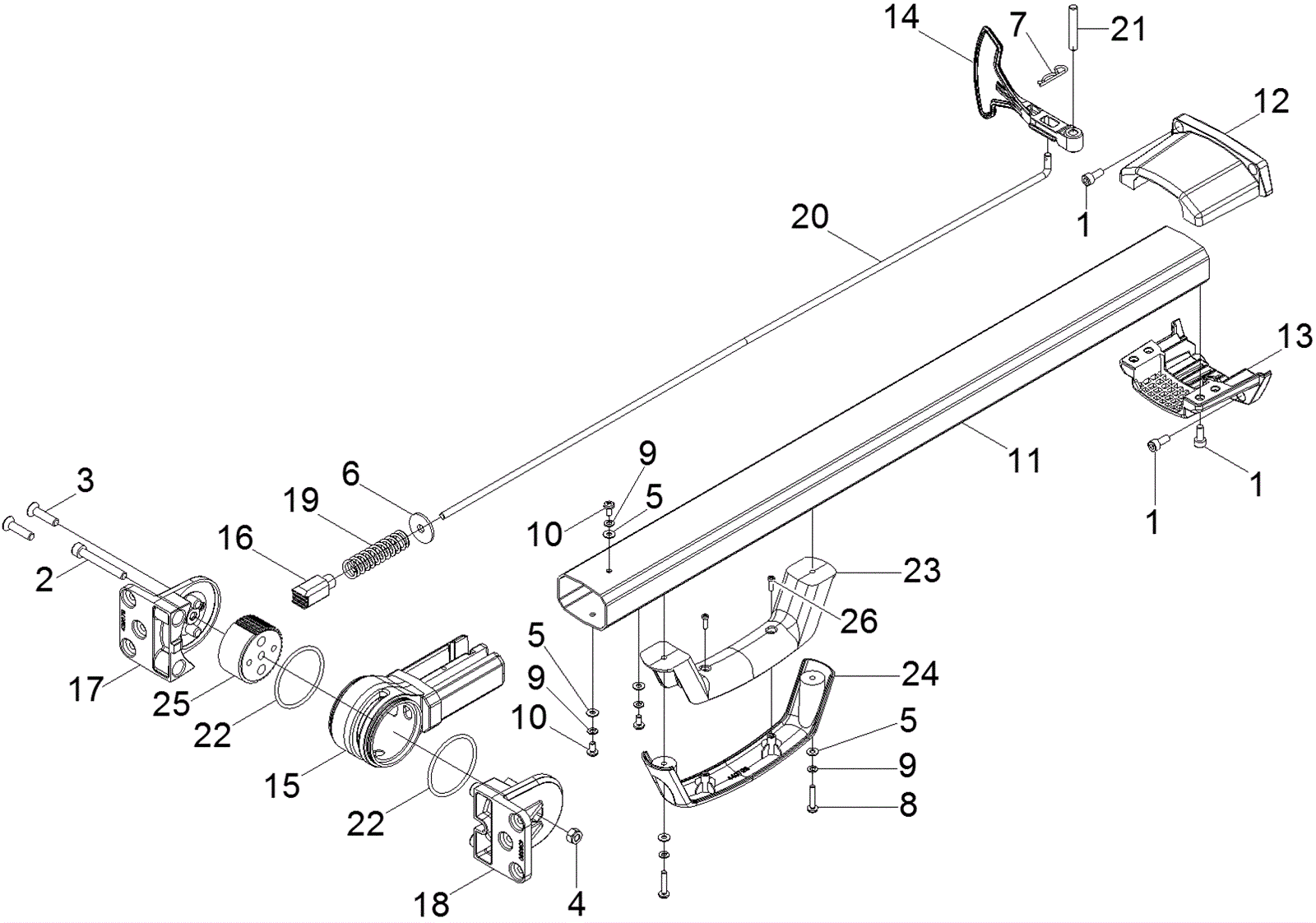

BD 30/4 Handhold Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-0325 Screw M5 x 12 cylinder head $2.18 8 usually ships 7-19 days
2 273-0326 Screw M6 x 45 $1.69 1 usually ships 7-19 days
3 273-0327 Screw M6 x 25 countersunk $2.31 2 usually ships 7-19 days
4 273-6081 Nut M6-4 hex $1.87 1 usually ships 7-19 days
5 273-7922 Washer $1.21 5 usually ships 7-19 days
6 273-7540 Washer 6 $2.78 1 usually ships 7-19 days
7 273-0328 Cotter pin $3.52 1 usually ships 7-19 days
8 N/A Not available Call for price 2 (screw M4 x 20) usually ships 3-26 days
9 273-9370 Toothed lock washer $1.28 5 usually ships 7-19 days
10 373-1355 Screw M4 x 8mm $1.33 3 usually ships 7-19 days
11 273-0330 Tube $124.30 1 usually ships 7-19 days
12 273-0331 Covering cap $13.20 1 usually ships 7-19 days
13 273-0332 Covering cap $5.06 1 usually ships 7-19 days
14 273-0333 Lever $67.65 1 usually ships 7-19 days
15 273-0334 Joint $105.05 1 usually ships 7-19 days
16 273-0335 Slide press $31.90 1 usually ships 7-19 days
17 273-0336 Bracket $61.60 1 usually ships 7-19 days
18 273-0337 Joint $59.95 1 usually ships 7-19 days
19 273-0338 Spring $5.61 1 usually ships 7-19 days
20 273-0339 Bar $55.00 1 usually ships 7-19 days
21 273-0340 Bolt $9.57 1 usually ships 7-19 days
22 273-0341 O-ring seal $5.50 2 usually ships 7-19 days
23 273-0342 Lower hand grip $10.95 1 usually ships 7-19 days
24 273-0343 Upper hand grip $10.95 1 usually ships 7-19 days
25 273-0344 Gear wheel $138.60 1 usually ships 7-19 days
26 273-9982 Screw 3 x 12 $3.39 2 usually ships 7-19 days
