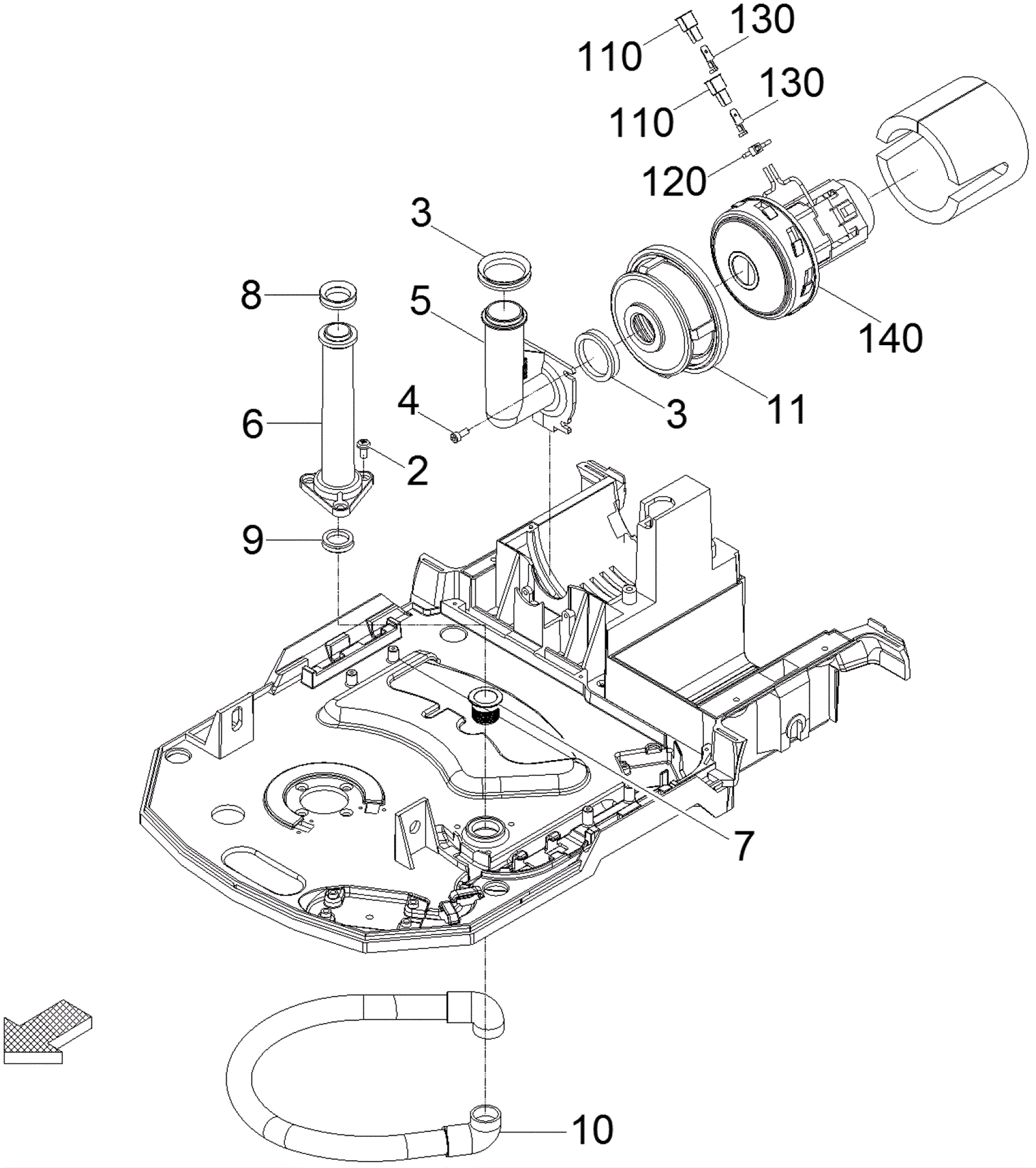

BD 30/4 Vacuum Motor Assembly

#PartDescriptionPriceReqNotesAvailability
2 999-6676 Screw M5-.8 x 10mm hex socket head stainless steel $0.99 3 ships same day
3 273-0308 Seal $14.19 2 usually ships 14-22 days
4 273-0309 Screw M4 x 10 cylinder head $1.54 4 usually ships 14-22 days
5 273-0310 Suction connection $7.15 1 usually ships 14-22 days
6 273-0311 Suction tube $57.76 1 usually ships 14-22 days
7 273-0312 Bushing $5.17 1 usually ships 14-22 days
8 273-0313 O-ring seal $22.44 1 usually ships 14-22 days
9 273-9943 Seal $11.99 1 usually ships 14-22 days
10 273-0314 Suction hose $42.24 1 usually ships 14-22 days
11 273-0315 Turbine covering cap $11.55 1 usually ships 14-22 days
110 273-0316 Insulated rubber bushing $3.52 2 usually ships 14-22 days
120 273-0317 Cable tie $0.99 1 usually ships 14-22 days
130 273-0318 Tab receptacle $3.52 2 usually ships 14-22 days
140 273-0319 Motor turbine $136.40 1 usually ships 14-22 days
