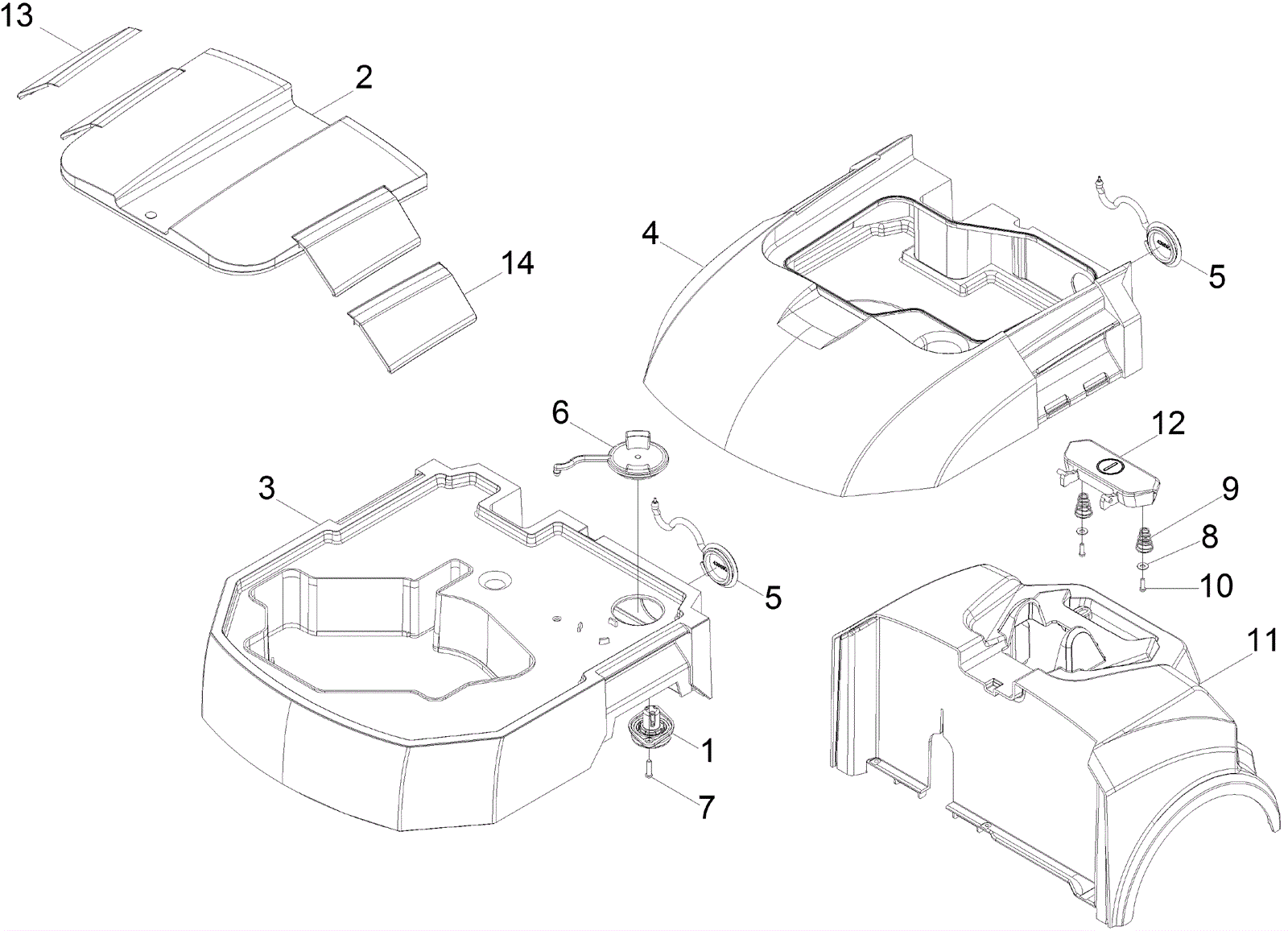

BD 30/4 Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-9991 Valve $28.60 1 usually ships 14-22 days
2 273-9992 Cover plate $242.46 1 usually ships 14-22 days
3 273-9993 Fresh water tank $209.51 1 usually ships 14-22 days
4 273-9994 Waste water tank $178.20 1 usually ships 14-22 days
5 273-9995 Outflow cap $6.71 2 usually ships 14-22 days
6 273-9996 Filling cap $24.13 1 usually ships 14-22 days
7 173-6178 Screw M5 x 12mm $4.03 2 usually ships 14-22 days
8 273-4506 Washer (OBSOLETE) Call for price 2 usually ships 14-22 days
9 273-9997 Spring $4.95 2 usually ships 14-22 days
10 273-9982 Screw 3 x 12 $3.96 2 usually ships 14-22 days
11 273-9998 Covering cap $80.04 1 usually ships 14-22 days
12 273-9999 Push button $14.83 1 usually ships 14-22 days
13 273-0305 Right hand flap $33.31 1 usually ships 14-22 days
14 273-0306 Left hand flap $33.31 1 usually ships 14-22 days
N/S 273-0307 Float $28.72 2 usually ships 14-22 days
