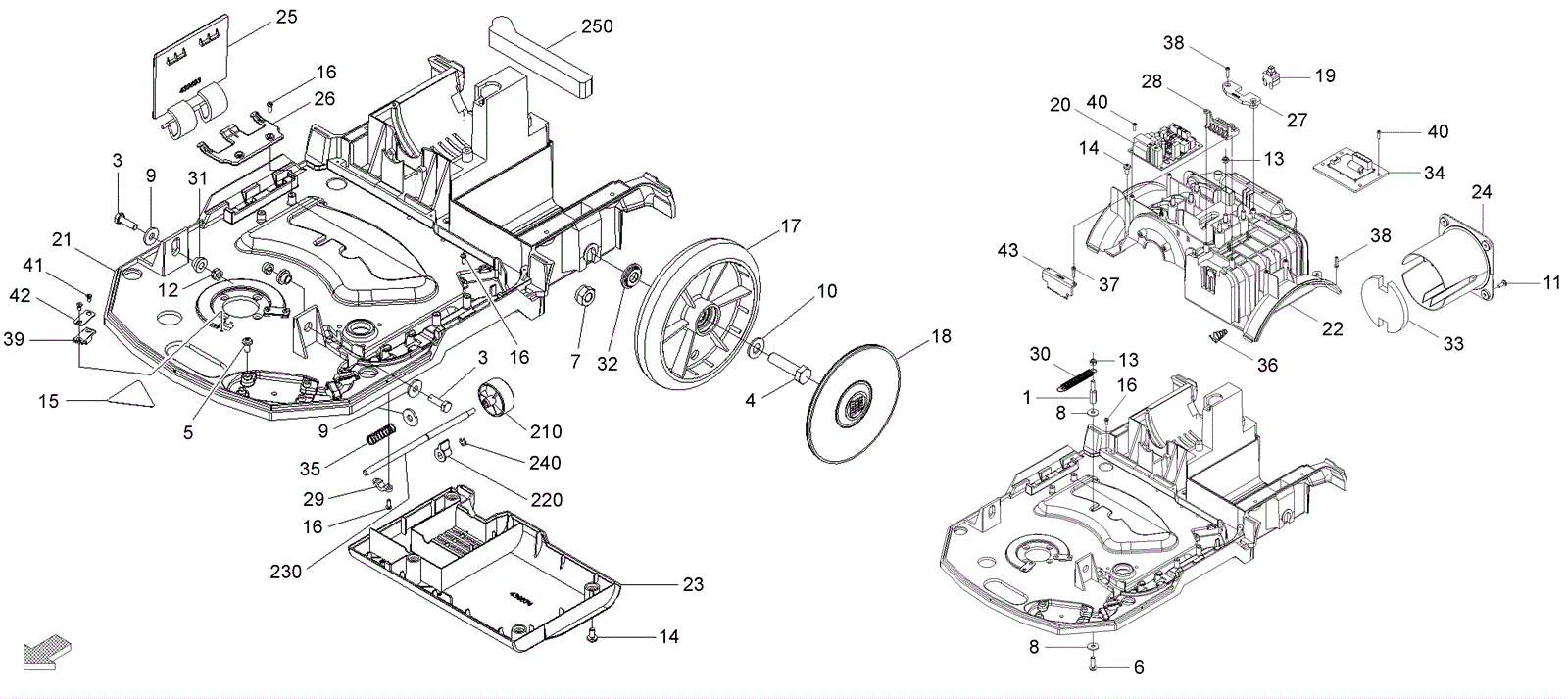

BD 30/4 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
3 273-8209 Screw M6 x 20 hex head $2.78 2 usually ships 7-19 days
4 999-0775 Screw M10-1.5 x 40mm hex head stainless steel $3.65 2 ships same day
5 999-6676 Screw M5-.8 x 10mm hex socket head stainless steel $0.99 4 ships same day
6 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel $0.99 1 ships same day
7 273-6031 Nut M10-8 hex $2.78 2 usually ships 7-19 days
8 999-9100 Washer M5 flat stainless steel $5.83 2 ships same day
9 173-5899 Washer $0.99 3 usually ships 7-19 days
10 273-9958 Washer 10 $1.10 2 usually ships 7-19 days
11 273-8167 Screw M4 x 10 $2.00 4 usually ships 7-19 days
12 999-1308 Nut M6-1 hex stainless steel $0.99 2 ships same day
13 999-0740 Nut M5-.8 hex stainless steel $0.99 7 ships same day
14 999-6676 Screw M5-.8 x 10mm hex socket head stainless steel $0.99 10 ships same day
15 273-9928 Decal $18.26 1 usually ships 7-19 days
16 273-9959 Screw M3 x 8 $3.39 11 usually ships 7-19 days
17 273-9960 Wheel $66.55 2 usually ships 7-19 days
18 273-9961 Cover plate $16.06 2 usually ships 7-19 days
19 273-9962 On/off switch $14.52 1 usually ships 7-19 days
20 273-9963 Control circuit board $356.40 1 usually ships 7-19 days
21 273-9964 Frame $557.70 1 usually ships 7-19 days
22 273-9965 Frame top $233.20 1 usually ships 7-19 days
23 273-9966 Covering cap $47.41 1 usually ships 7-19 days
24 273-9967 Cover plate $15.07 1 usually ships 7-19 days
25 273-9968 Cover hinge $52.36 2 usually ships 7-19 days
26 273-9969 Hinge $6.11 2 usually ships 7-19 days
27 273-9970 Bracket $3.52 1 usually ships 7-19 days
28 273-9971 Fixing device $3.52 1 usually ships 7-19 days
29 273-9972 Clamp half $3.52 1 usually ships 7-19 days
30 273-9973 Spring $4.29 1 usually ships 7-19 days
31 273-9974 Bushing $10.29 2 usually ships 7-19 days
32 273-9975 Bushing $17.71 2 usually ships 7-19 days
33 273-9976 Filter $5.17 1 usually ships 7-19 days
34 273-9977 Circuit board brush motor $465.30 1 usually ships 7-19 days
35 273-9978 Spring $4.13 1 usually ships 7-19 days
36 273-9979 Spring $3.52 1 usually ships 7-19 days
37 173-6178 Screw M5 x 12mm $3.45 2 usually ships 7-19 days
38 273-9980 Screw 3.5 x 16 $5.45 6 usually ships 7-19 days
39 273-9981 Limit stop $4.13 2 usually ships 7-19 days
40 273-9982 Screw 3 x 12 $3.39 4 usually ships 7-19 days
41 273-9983 Screw 3 x 10 countersunk $0.99 4 usually ships 7-19 days
42 273-9984 Bracket $4.73 2 usually ships 7-19 days
43 273-9985 Clamp $3.85 1 usually ships 7-19 days
210 273-9986 Hand grip $7.37 1 usually ships 7-19 days
220 273-9987 Stop lever $22.77 1 usually ships 7-19 days
230 273-9988 Bar $36.08 1 usually ships 7-19 days
240 273-9989 Lock washer $5.17 1 usually ships 7-19 days
250 273-9990 Rubber seal $17.60 1 usually ships 7-19 days
