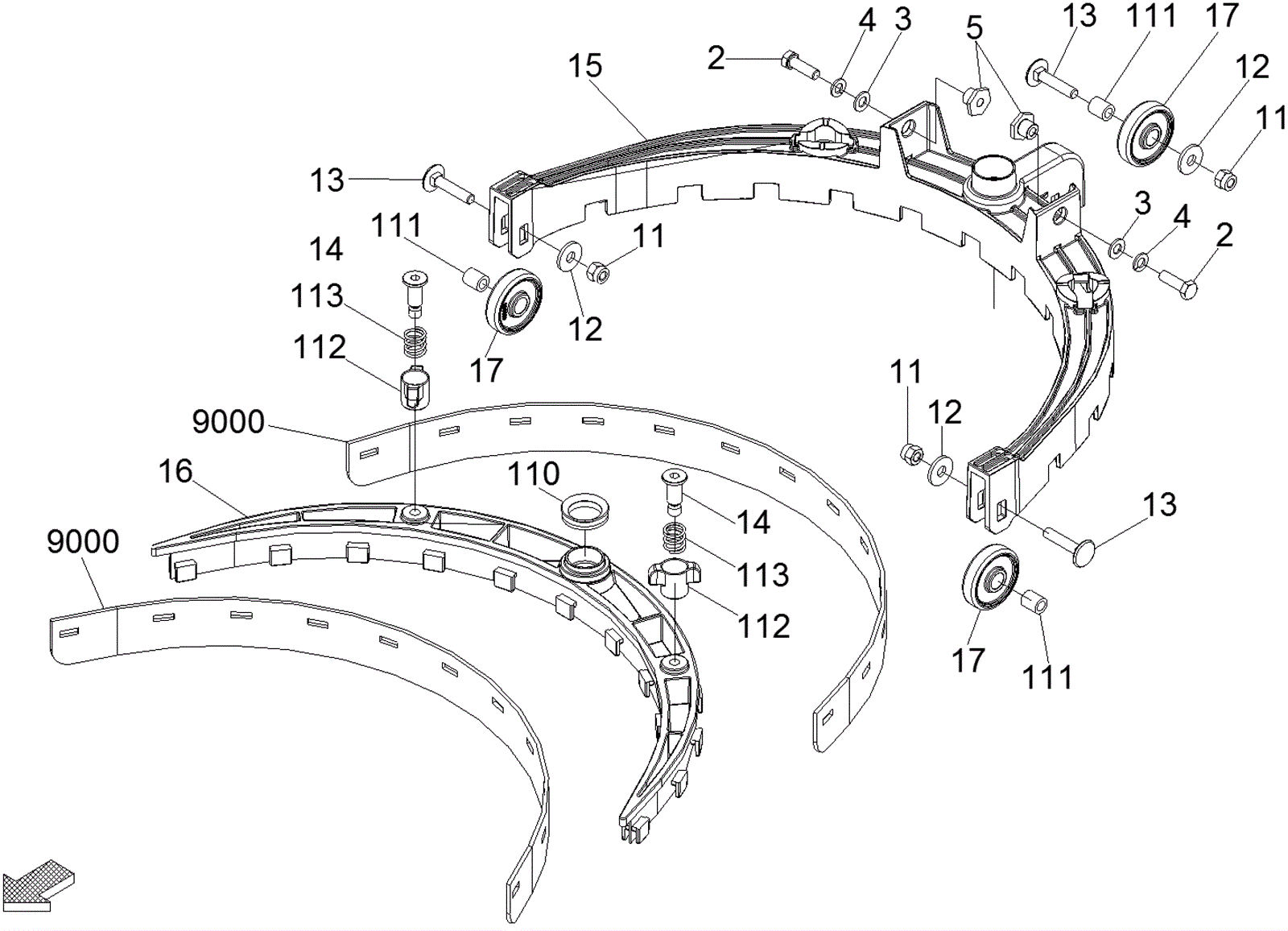

BD 30/4 Suction Bar Assembly

#PartDescriptionPriceReqNotesAvailability
2 N/A Not available Call for price 2 (screw M5 x 16 hex head) usually ships 3-26 days
3 173-9042 Washer #5 $1.40 2 usually ships 1-5 days
4 273-9936 Spring washer $1.28 2 usually ships 7-19 days
5 273-9937 Bushing $28.49 2 usually ships 7-19 days
11 999-0740 Nut M5-.8 hex stainless steel $0.99 3 ships same day
12 999-9100 Washer M5 flat stainless steel $5.83 3 ships same day
13 N/A Not available Call for price 3 (screw M5 x 25 oval head) usually ships 3-26 days
14 273-9939 Bolt $31.35 2 usually ships 7-19 days
15 273-9940 Suction bar holder $106.70 1 usually ships 7-19 days
16 273-9941 Suction bar body $13.86 1 usually ships 7-19 days
17 273-9942 Support wheel $8.80 3 usually ships 7-19 days
110 273-9943 Seal $11.99 1 usually ships 7-19 days
111 273-9944 Bushing $7.54 3 usually ships 7-19 days
112 273-9945 Wing screw $5.06 2 usually ships 7-19 days
113 273-9946 Spring $5.06 2 usually ships 7-19 days
9000a 273-9947 Suction lips $87.46 1 usually ships 7-19 days
9000b 273-9948 Suction lips Linatex© $89.10 1 usually ships 7-19 days
