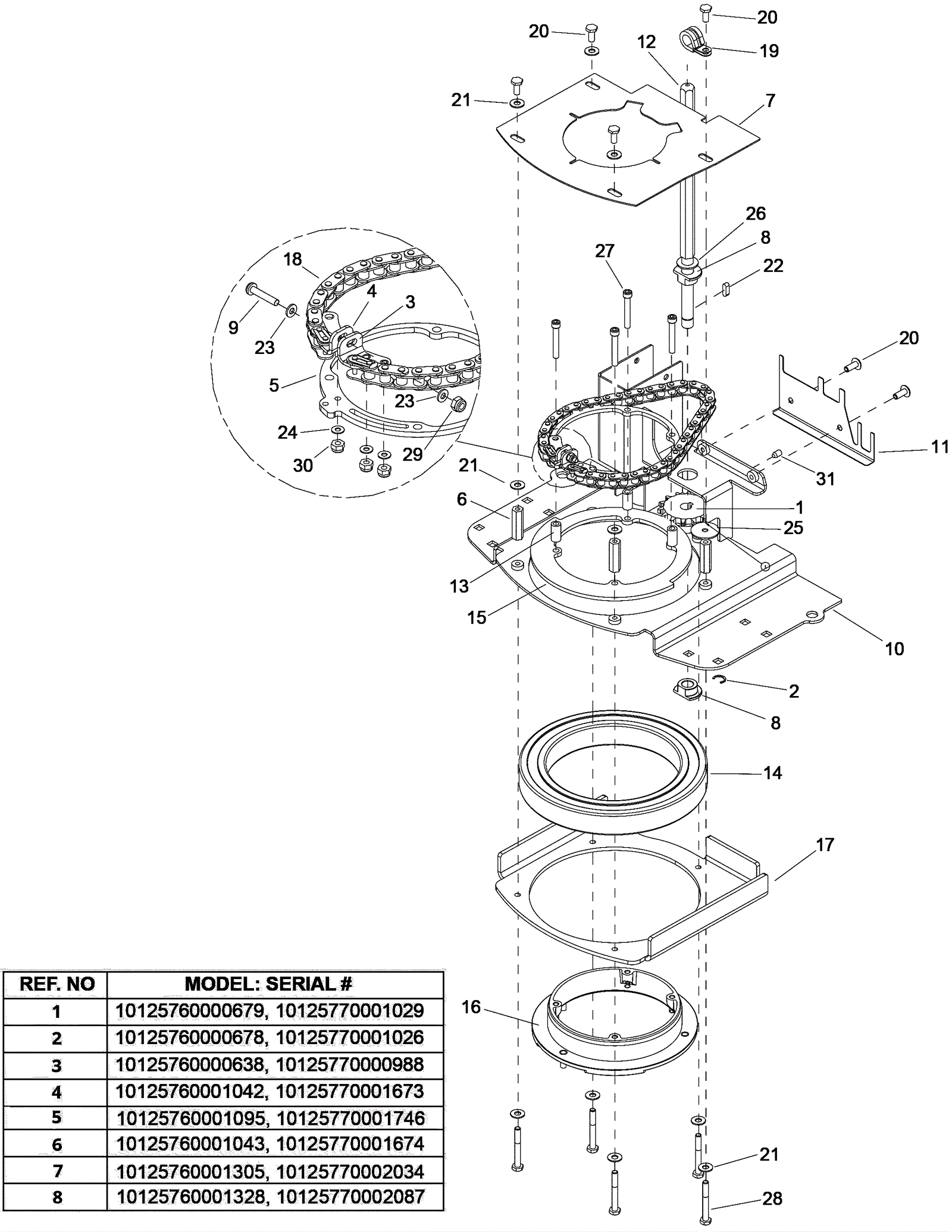

CHARIOT2 IVAC24ATV (Gray) Slew/Steering Assembly - Reference Number 7

#PartDescriptionPriceReqNotesAvailability
1 273-4332 14 toothed sprocket $70.62 1 usually ships 11-15 days
2 273-4333 Clip $1.06 1 usually ships 11-15 days
3 273-4334 Chain tension bracket $32.60 1 usually ships 11-15 days
4 273-4335 Chain mounting bracket $26.37 1 usually ships 11-15 days
5 273-4336 Chain ring plate $118.88 1 usually ships 11-15 days
6 273-4337 Coupling nut $26.51 4 usually ships 11-15 days
7 273-4338 Chain guard plate $17.53 1 usually ships 11-15 days
8 273-4339 Flanged bushing $31.66 2 usually ships 11-15 days
9 999-0973 Screw 10-32 x 1 truss head phillips zinc plated $0.99 1 ships same day
10 273-4340 Steering bracket assembly $175.37 1 usually ships 11-15 days
11 273-4341 Connectors bracket $45.90 1 usually ships 11-15 days
12 273-4342 Steering sprocket shaft $42.60 1 usually ships 11-15 days
13 273-4343 Spacer $12.00 4 usually ships 11-15 days
14 273-4344 Steering bearing $137.71 1 usually ships 11-15 days
15 273-4345 Inner top plate $49.43 1 usually ships 11-15 days
16 273-4346 Lower bearing mount $218.92 1 usually ships 11-15 days
17 273-4347 Outer plate $93.58 1 usually ships 11-15 days
18 991-0101 Chain (sold by the link) $0.55 1 usually ships 4-8 days
19 273-6649 5/8 inch cushioned clamp $8.06 1 usually ships 1-5 days
21 999-0123 Washer 1/4 SAE flat zinc plated $0.99 13 ships same day
22 173-5974 Square keyway $6.01 1 usually ships 11-15 days
23 173-4807 Washer #10 flat pleated (OBSOLETE) $0.99 2 usually ships 11-15 days
25 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
26 999-0566 Washer 1/2 flat nylon $0.99 1 ships same day
27 173-0375 Screw 1/4-20 x 2/3 socket head $9.52 4 usually ships 1-5 days
28 999-1020 Bolt 1/4-20 x 2 hex head hot dipped galvanized $2.57 5 ships same day
29 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
30 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 3 ships same day
31 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 1 ships same day
32 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 4 ships same day
