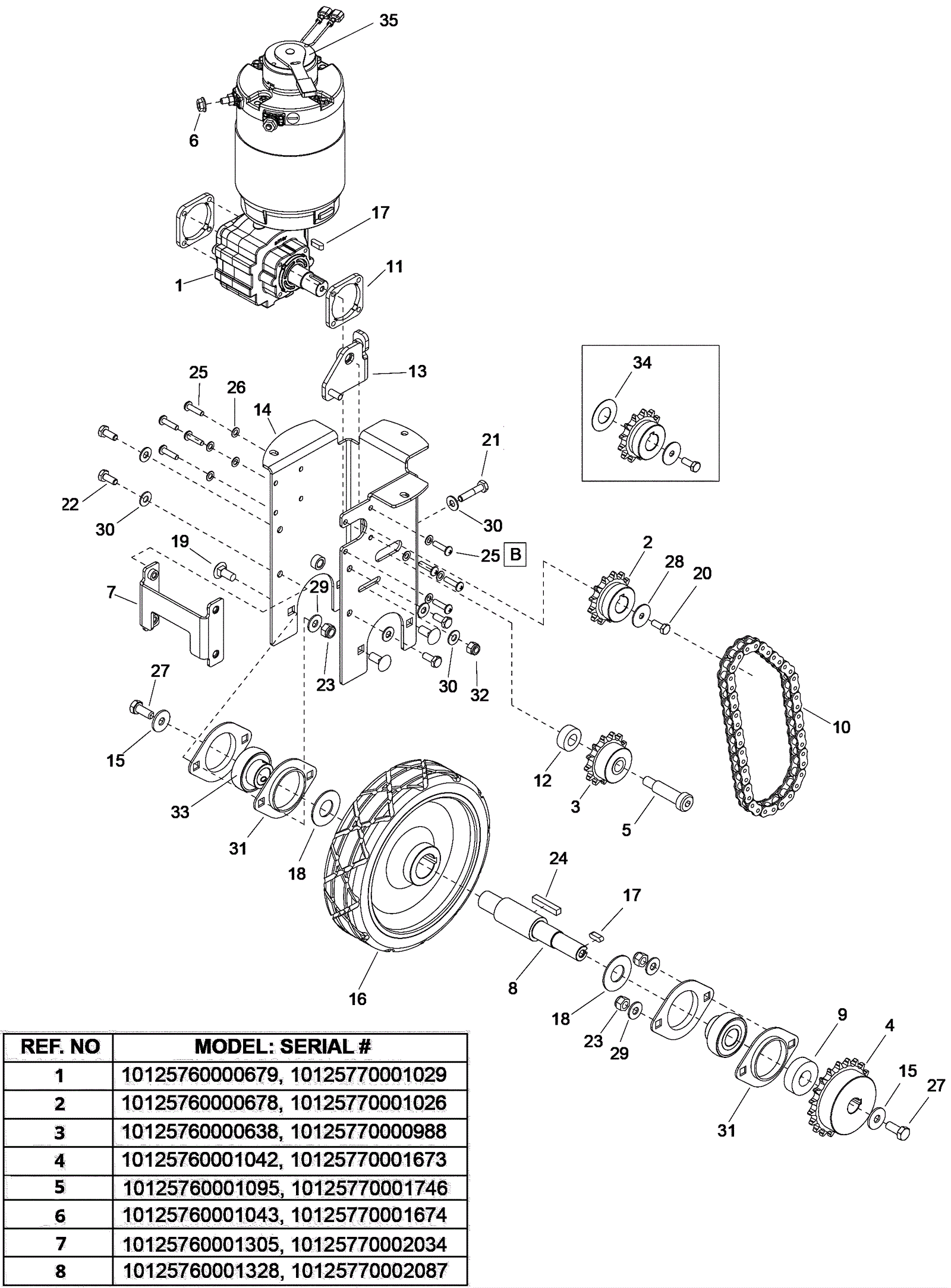

CHARIOT2 IVAC24ATV (Gray) Lower Drive Assembly - Reference Number 7

#PartDescriptionPriceReqNotesAvailability
1 273-0291 Traction motor $1,243.24 1 (see reference number 8) usually ships 7-19 days
2 273-0292 13 tooth sprocket $61.05 1 usually ships 7-19 days
3 273-0293 13 tooth idler sprocket $207.90 1 usually ships 7-19 days
4 273-0294 20 tooth sprocket $104.50 1 ships same day
5 273-0295 Bolt 1/2 x 1 5/8 shoulder stainless steel $65.45 1 usually ships 7-19 days
6 999-6694 Nut M6-1 hex serrated flange stainless steel $0.99 2 ships same day
7 273-0296 Bracket $41.47 1 usually ships 7-19 days
8 273-0297 Drive wheel axle $43.67 1 usually ships 7-19 days
9 273-0298 Wheel shaft spacer $19.37 1 ships same day
10 991-0101 Chain (sold by the link) $0.55 1 ships same day
11 273-0300 Motor mounting housing spacer $15.62 2 usually ships 7-19 days
12 273-0301 Drive tensioner spacer $3.87 1 usually ships 7-19 days
13 273-0302 Drive tensioner bracket $31.13 1 usually ships 7-19 days
14 273-0303 Axle housing $101.75 1 usually ships 7-19 days
15 999-6695 Washer M8 fender stainless steel $0.99 2 ships same day
16 173-5983 Wheel $281.66 1 ships same day
17 173-5974 Square keyway $5.61 2 usually ships 7-19 days
18 173-5975 Washer $8.25 2 usually ships 7-19 days
19 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 4 ships same day
20 273-6205 Screw M6-1 x 16mm hex head cap screw $3.03 1 usually ships 1-5 days
21 173-2525 Bolt 1/4-20 x 1 1/4 hex head plated $0.99 1 usually ships 1-5 days
22 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 4 ships same day
23 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
24 273-0084 Square keyway $15.62 1 usually ships 7-19 days
25 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel $0.99 8 ships same day
26 173-4706 Washer M5 shakeproof $1.39 8 usually ships 7-19 days
27 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 2 ships same day
28 999-6684 Washer 1/4 flat stainless steel $0.99 1 usually ships 11-24 days
29 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
30 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 ships same day
31 173-3536 Flanged bearing $13.42 4 usually ships 7-19 days
32 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
33 173-5558 3/4 inch ball bearing $16.06 2 ships same day
34 273-0304 Shaft spacer $5.94 1 usually ships 7-19 days
35 273-4098 Brake $370.77 1 usually ships 7-19 days
