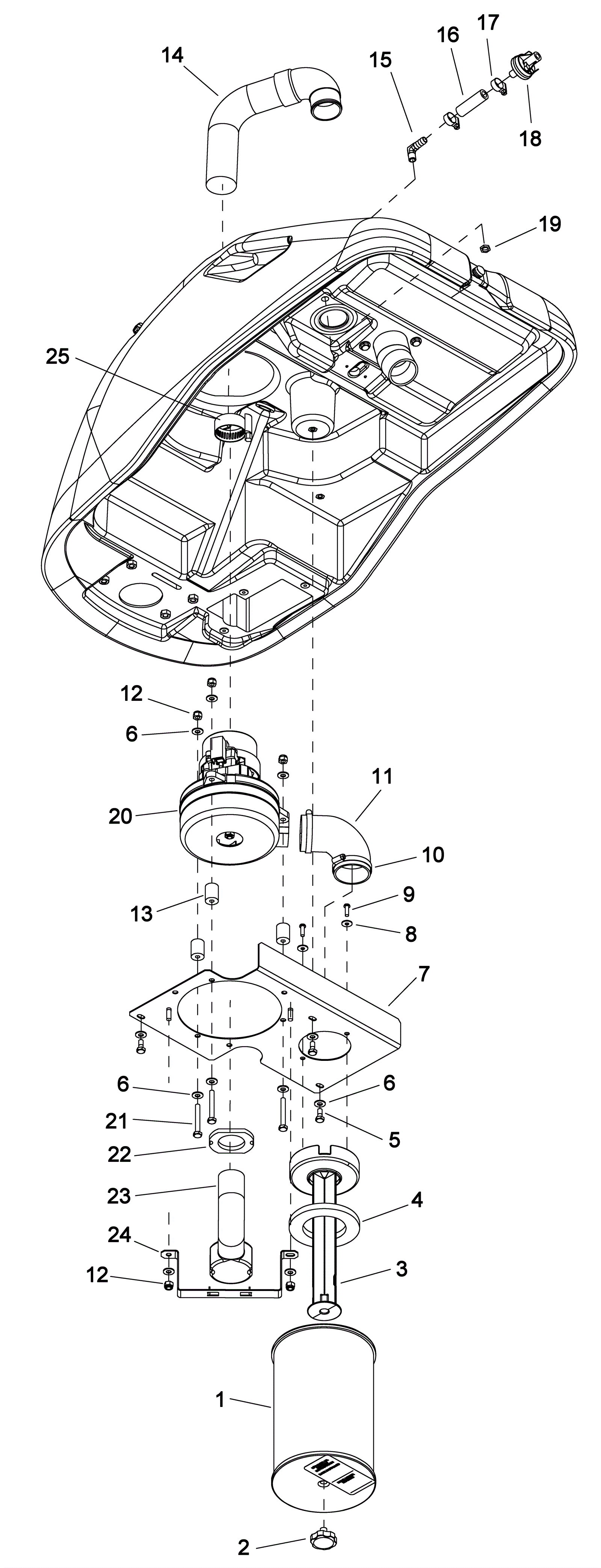

CHARIOT2 IVAC24ATV (Gray) Vacuum Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-2953 HEPA/Carbon filter $82.51 1 ships same day
2 273-2956 Screw 3/8-16 x 1/2 thumb rosette $15.73 1 usually ships 7-19 days
3 273-2957 Filter mount post $33.66 1 usually ships 7-19 days
4 273-0910 Vacuum bracket gasket $28.93 1 usually ships 7-19 days
5 173-2494 Bolt 1/4-20 x 5/8 hex head grade 8 $1.52 3 usually ships 7-19 days
6 999-0123 Washer 1/4 SAE flat zinc plated $0.99 9 ships same day
7 273-2958 Vac mount bracket $67.65 1 usually ships 1-5 days
8 273-5591 Washer M5 flat stainless steel $1.82 2 usually ships 7-19 days
9 273-6337 Screw KA50 x 16 $12.21 2 usually ships 1-5 days
10 997-2007 Hose clamp $2.07 2 ships same day
11 273-2959 Vacuum hose $58.30 1 usually ships 7-19 days
12 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 5 ships same day
13 173-7297 Vibration mount $8.09 3 usually ships 7-19 days
14 273-2960 Vac hose $73.15 1 usually ships 7-19 days
15 173-4930 Hose barb $22.66 1 usually ships 7-19 days
16 173-1571 Nylon hose 3/8 x 2 inch $63.80 1 usually ships 1-5 days
17 173-2741 Hose clamp $2.37 1 usually ships 7-19 days
18 173-9856 Vacuum switch $214.53 1 usually ships 7-19 days
19 273-2961 Nut 1/8 IPS brass $3.61 1 usually ships 1-5 days
20a 173-9151 36V 2 stage vacuum motor $295.90 1 ships same day
20b 991-1912 36V 2 stage tangential vac motor A+ $174.94 1 (NON-OEM) usually ships 5-16 days
21 999-1020 Bolt 1/4-20 x 2 hex head hot dipped galvanized $2.57 3 usually ships 11-24 days
22 173-7224 Vacuum intake gasket $11.44 1 usually ships 7-19 days
23 273-2962 Vac motor intake $8.58 1 usually ships 7-19 days
24 273-2963 Vac motor bracket $48.07 1 usually ships 7-19 days
25a 189-0329 Hose clamp $31.44 1 (OEM) usually ships 1-5 days
25b 997-2007 Hose clamp $2.07 1 (NON-OEM) ships same day
