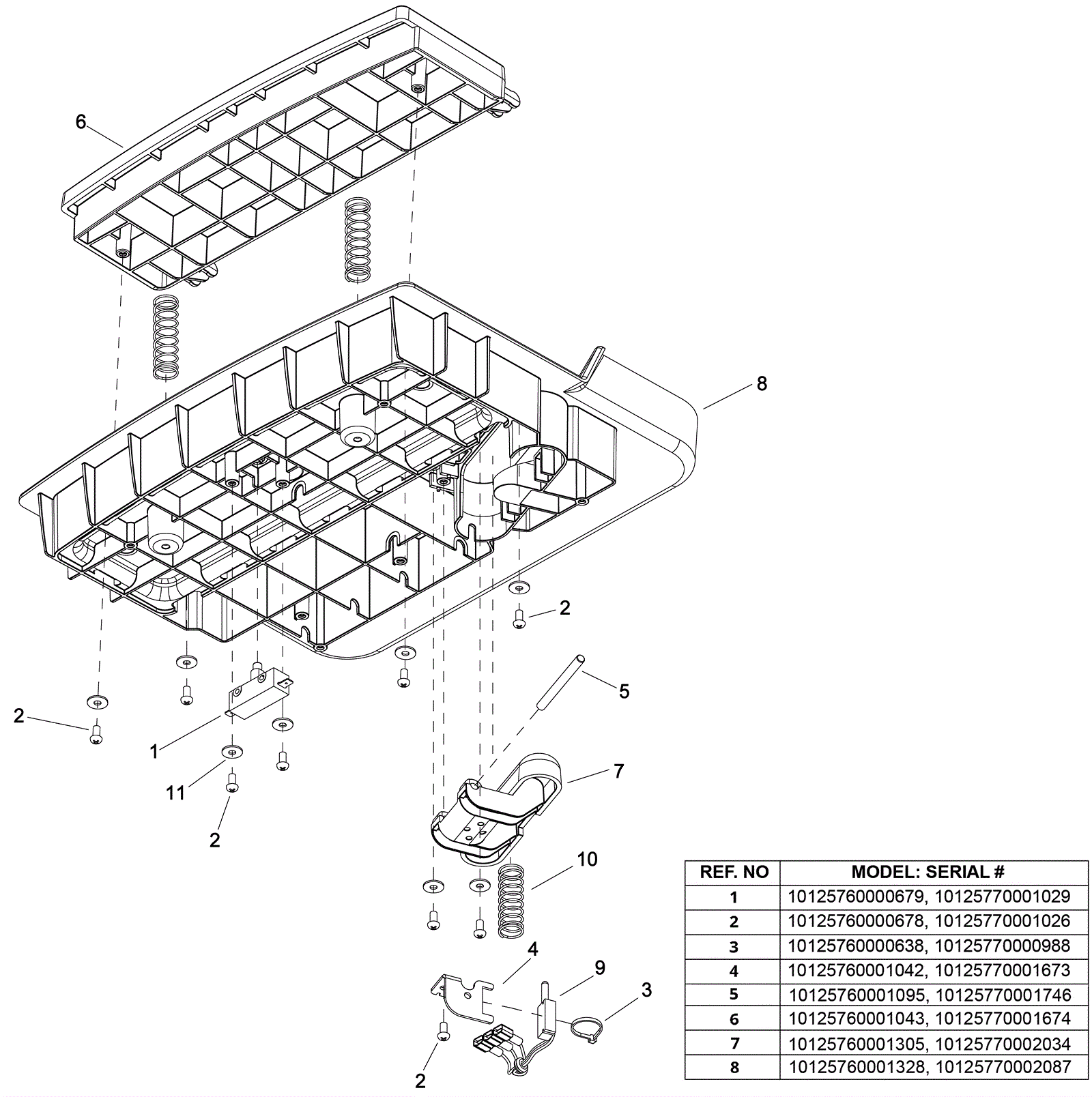

CHARIOT2 IVAC24ATV (Gray) Pedal Platform Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-0378 25amp switch replacement $70.04 1 ships same day
2 273-5604 Screw $0.99 9 ships same day
3 173-0822 Wire tie $1.06 1 usually ships 11-16 days
4 173-7212 Linear potentiometer bracket $19.31 1 usually ships 11-16 days
5 173-7213 Steel dowel pin $25.89 1 usually ships 11-16 days
6a 173-7214 Heel pedal $82.98 1 (see reference number 3 and 4) usually ships 11-16 days
6b 273-7258 Heel pedal (black) $108.88 1 (see reference number 6) ships same day
7a 273-7259 Accelerator pedal (yellow) $59.44 1 (see reference number 3 and 4) usually ships 11-16 days
7b 273-7259 Accelerator pedal (yellow) $59.44 1 (see reference number 6) usually ships 11-16 days
8a 173-7216 Operator platform $150.66 1 (see reference number 3 and 4) usually ships 11-16 days
8b 273-4365 Platform operator (black) $137.71 1 (see reference number 6) usually ships 11-16 days
9 173-7217 Linear potentiometer assembly $144.77 1 ships same day
10 173-5493 Spring $11.36 3 usually ships 11-16 days
11 273-5591 Washer M5 flat stainless steel $2.33 8 usually ships 11-16 days
