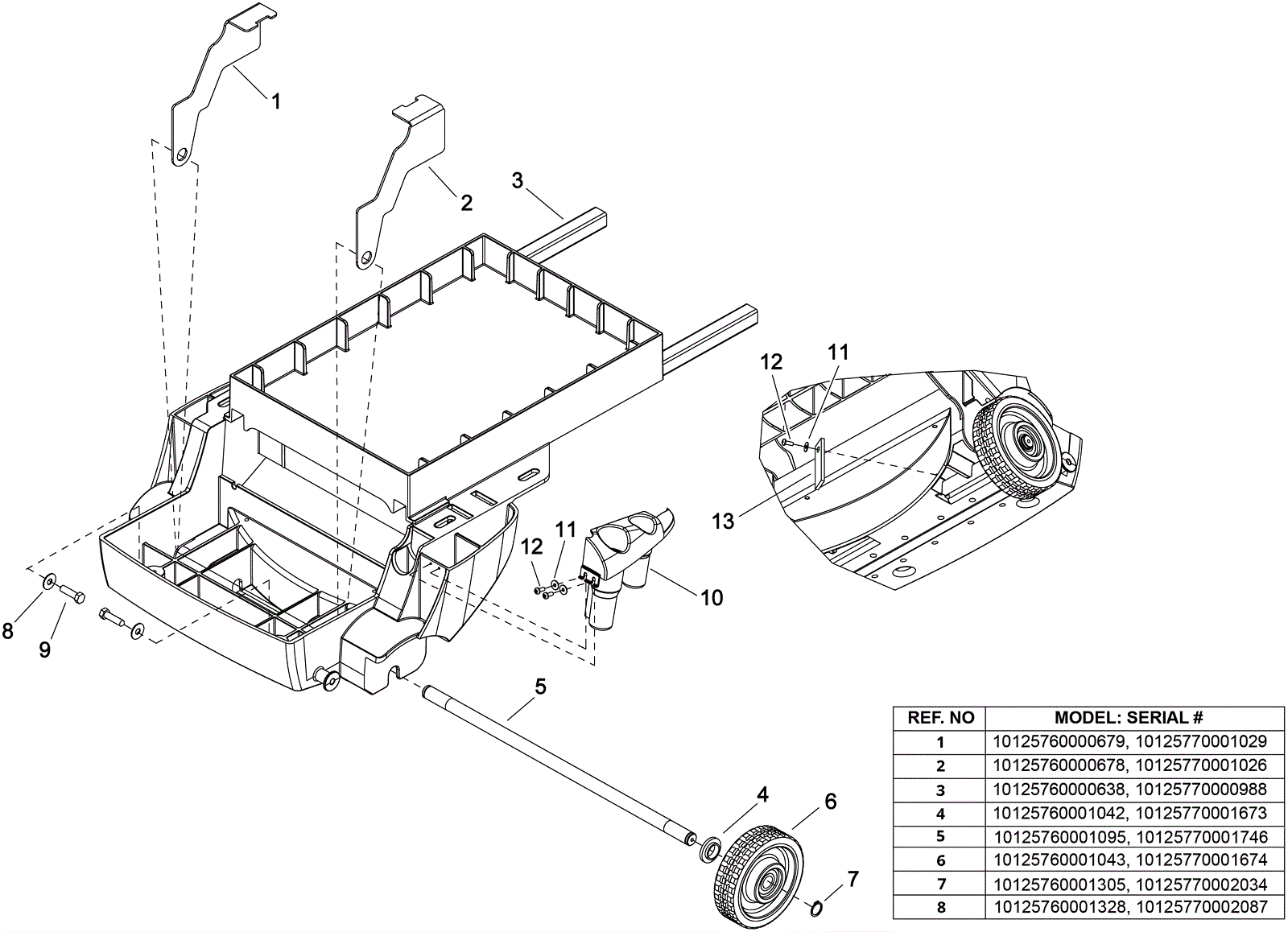

CHARIOT2 IVAC24ATV (Gray) Frame and Rear Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-7205 Left hand frame bracket $37.07 1 usually ships 7-19 days
2 173-7206 Right hand frame bracket $40.70 1 usually ships 7-19 days
3a 273-9155 CV60/2 frame assembly (black) $399.30 1 (includes 8-9) (see reference number 3 and 4) usually ships 7-19 days
3b 273-9155 CV60/2 frame assembly (black) $399.30 1 (includes 8-9) (see reference number 6) usually ships 7-19 days
4 173-7208 Spacer $3.82 2 usually ships 7-19 days
5 173-7209 Axle $98.45 1 usually ships 7-19 days
6 173-7210 Wheel (set of 2) $156.22 1 usually ships 7-19 days
7 173-4748 External snap ring (OBSOLETE) $0.99 2 usually ships 7-19 days
8 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
9 999-1489 Screw 3/8-16 x 1 1/2 hex head stainless steel $1.72 2 ships same day
10a 273-2938 Accessory housing $23.54 1 (see reference number 3 and 4) usually ships 7-19 days
10b 273-2938 Accessory housing $23.54 1 (see reference number 6) usually ships 7-19 days
11 273-5591 Washer M5 flat stainless steel $1.82 3 usually ships 7-19 days
12 173-5950 Screw KA50 x 16 oval head phillips SS (OBSOLETE) $2.85 3 usually ships 7-19 days
13 173-5517 Static strap $36.85 1 usually ships 1-5 days
