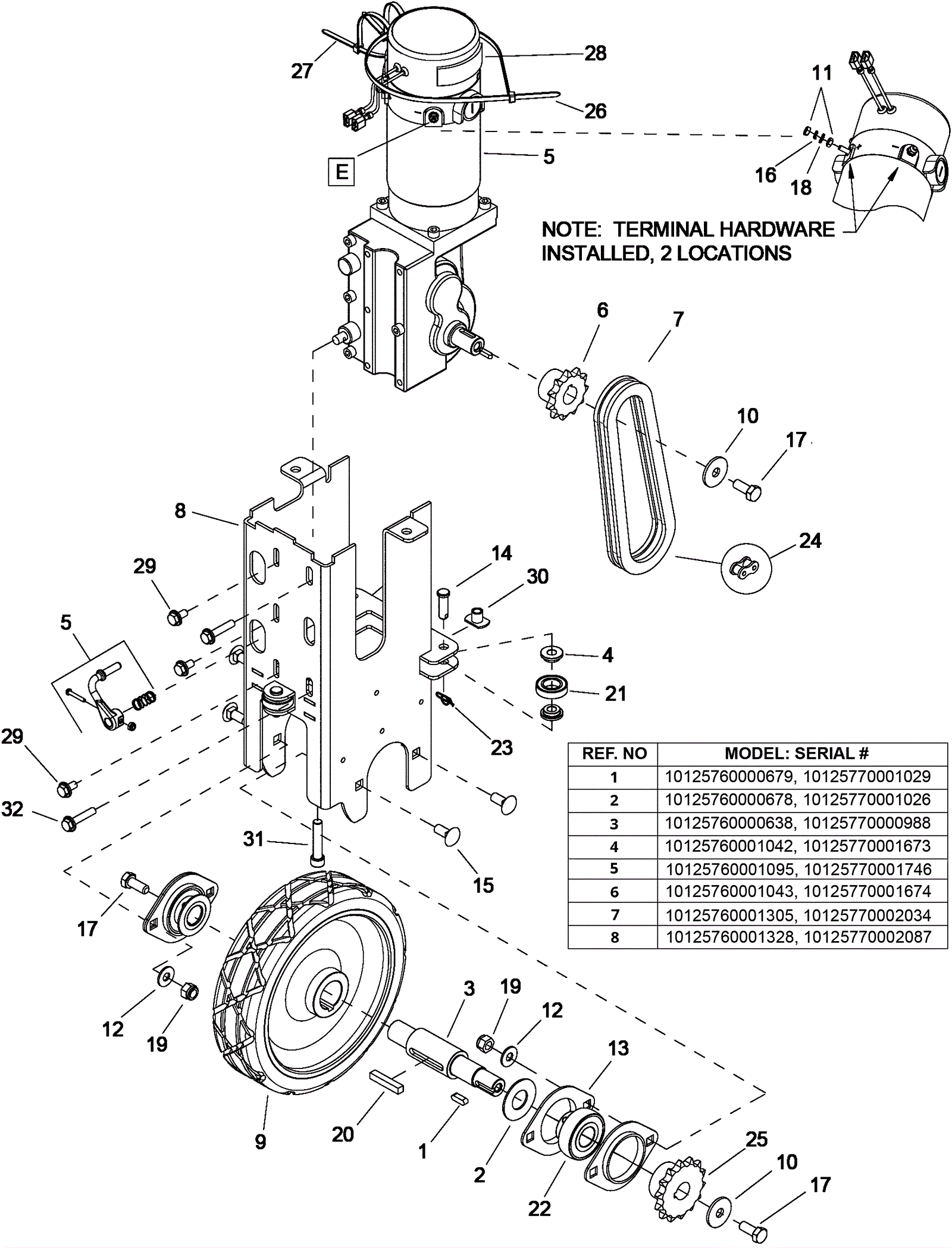

CHARIOT2 IVAC24ATV (Gray) Lower Drive Assembly - Reference Number 7 and 4

#PartDescriptionPriceReqNotesAvailability
1 173-5974 Square keyway $6.01 1 usually ships 11-15 days
2 173-5975 Washer $8.83 2 usually ships 11-15 days
3 173-5976 Drive wheel axle $19.06 1 usually ships 11-15 days
4 173-5977 Bearing sleeve $12.12 6 usually ships 11-15 days
5a 273-6645 Traction motor $1,140.51 1 (for installation with brake harness and lower harness, order kit 273-6509) usually ships 11-15 days
5b 273-3589 Drive motor carbon brush kit $61.20 1 (for CCL traction motor use 273-3589 brush kit, for Linix traction motor use 273-7621 brush set) (both sets included in kit) usually ships 11-15 days
5c 273-6511 Brake replacement kit $384.88 usually ships 11-15 days
6 273-2932 Sprocket $86.36 1 usually ships 11-15 days
7 273-2933 Chain $44.88 1 usually ships 11-15 days
8 173-5982 Lower drive frame $453.15 1 usually ships 1-5 days
9 173-5983 Wheel $301.31 1 ships same day
10 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 3 ships same day
11a 273-6646 Washer M6 conical $2.84 4 (see reference 3-4) usually ships 1-5 days
11b 999-1619 Nut M4 hex stainless steel $0.99 4 (see reference 5-6) usually ships 16-20 days
12 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
13 173-3536 Flanged bearing $14.36 4 usually ships 11-15 days
14 173-5985 Clevis pin 5/16 x 1 $5.50 3 usually ships 11-15 days
15 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 4 ships same day
16 999-1802 Washer M4 spring lock stainless steel $0.99 2 ships same day
17 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 3 ships same day
18 273-6687 Washer external tooth star $1.63 2 usually ships 1-5 days
19 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
20 273-0084 Square keyway $16.71 1 usually ships 11-15 days
21 173-5987 Roller $15.18 3 usually ships 11-15 days
22 173-5558 3/4 inch ball bearing $17.18 2 usually ships 11-15 days
23 173-1480 Cotter ring $2.46 3 ships same day
24 173-5565 Master link $23.89 1 usually ships 11-15 days
25 173-5980 Drive sprocket $81.21 1 usually ships 11-15 days
26 173-3305 Cable tie $12.47 1 usually ships 1-5 days
27 173-3169 Wire tie $1.20 2 usually ships 1-5 days
28 273-6647 Tape closed cell $5.23 2 usually ships 1-5 days
29 999-1801 Screw M6 X 12mm hex head flange $2.79 3 ships same day
30 273-6648 Nut weldment (OBSOLETE) $3.83 1 usually ships 11-15 days
31 999-0131 Screw 5/16-18 x 1 1/2 socket head stainless steel $2.86 1 ships same day
32 273-6686 Screw M6 X 30mm hex head flange $15.65 2 usually ships 1-5 days
