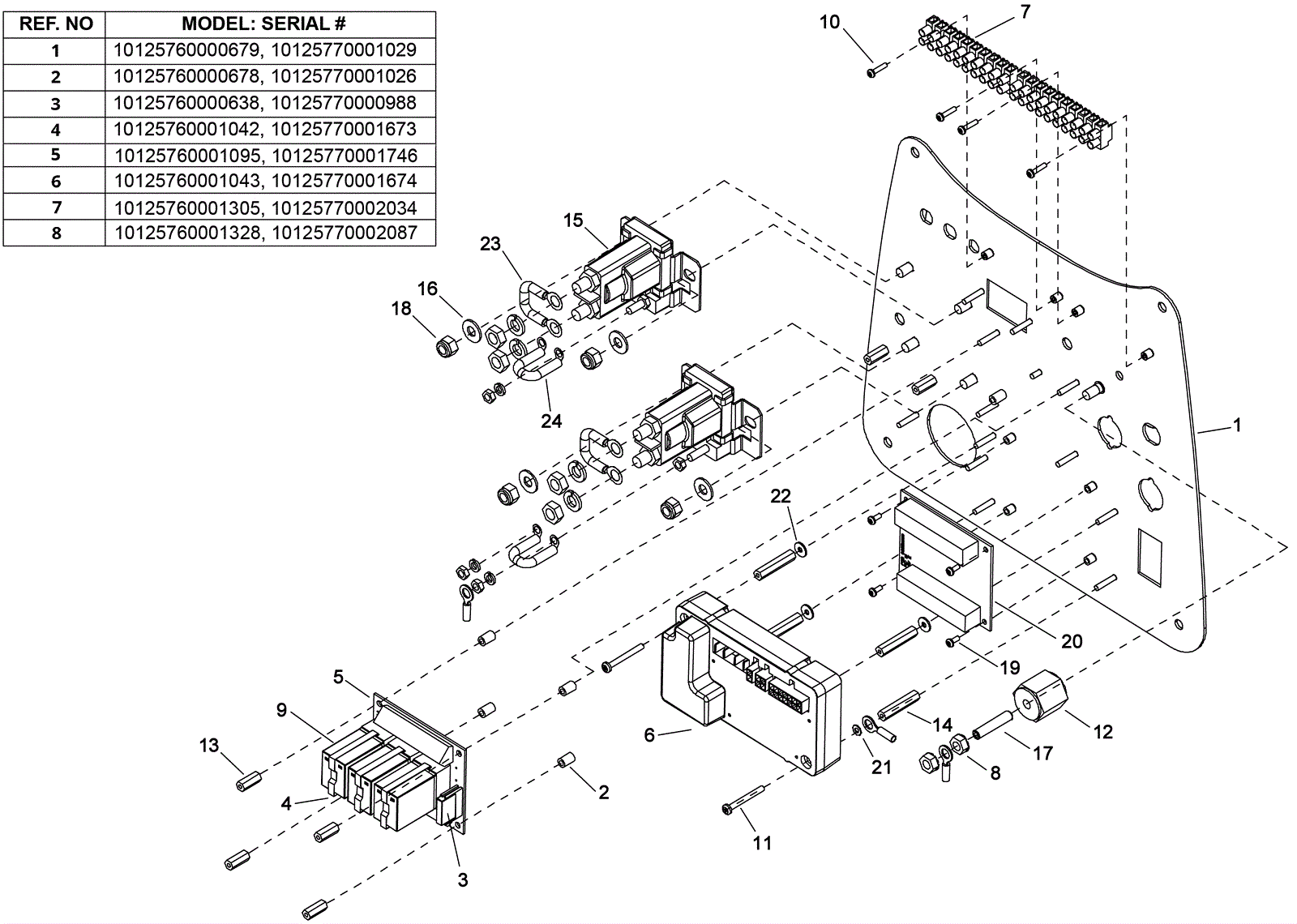

CHARIOT2 IVAC24ATV (Gray) Control Panel Assembly 1

#PartDescriptionPriceReqNotesAvailability
1 273-6989 Control panel $226.60 1 usually ships 1-5 days
2 273-6627 Spacer $1.63 5 usually ships 11-15 days
3 273-7003 Relay circuit board $486.10 1 usually ships 11-15 days
4 273-6625 Relay clip $4.87 3 usually ships 11-15 days
5 273-7003 Relay circuit board $486.10 1 usually ships 11-15 days
6a 273-6990 Controller $595.10 1 (see reference number 3-6) ships same day
6b 273-3573 Controller $367.22 1 (see reference number 7-8) usually ships 11-15 days
7 173-5965 10 position connector with 8mm pitch $33.31 2 usually ships 1-5 days
8 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 2 ships same day
9 273-0912 5amp relay $26.37 3 usually ships 11-15 days
10 999-1330 Screw 4-40 x 1/2 pan head stainless steel $0.99 4 ships same day
11 999-0974 Screw 6-32 x 1 1/4 pan head phillips stainless steel $7.92 2 ships same day
12 173-1145 Insulated stand-off $22.55 1 usually ships 11-15 days
13 173-1520 Nylon standoff $7.12 4 ships same day
14 273-6622 Nylon standoff 6-32 x 1.25 $6.66 4 usually ships 1-5 days
15 173-1872 100amp relay $97.11 2 usually ships 11-15 days
16 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
17 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 1 ships same day
18 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
19 173-2014 Screw 4-40 x 1/4 $0.99 4 usually ships 1-5 days
20 273-6991 Control board panel $382.53 1 usually ships 11-15 days
21 999-0148 Washer #6 external star lock zinc plated $0.99 1 ships same day
22 999-1158 Washer #6 flat stainless steel $0.99 3 ships same day
23 189-0372 Diode assembly $148.58 2 usually ships 12-17 days
24 173-1716 Diode assembly $57.55 2 usually ships 11-15 days
