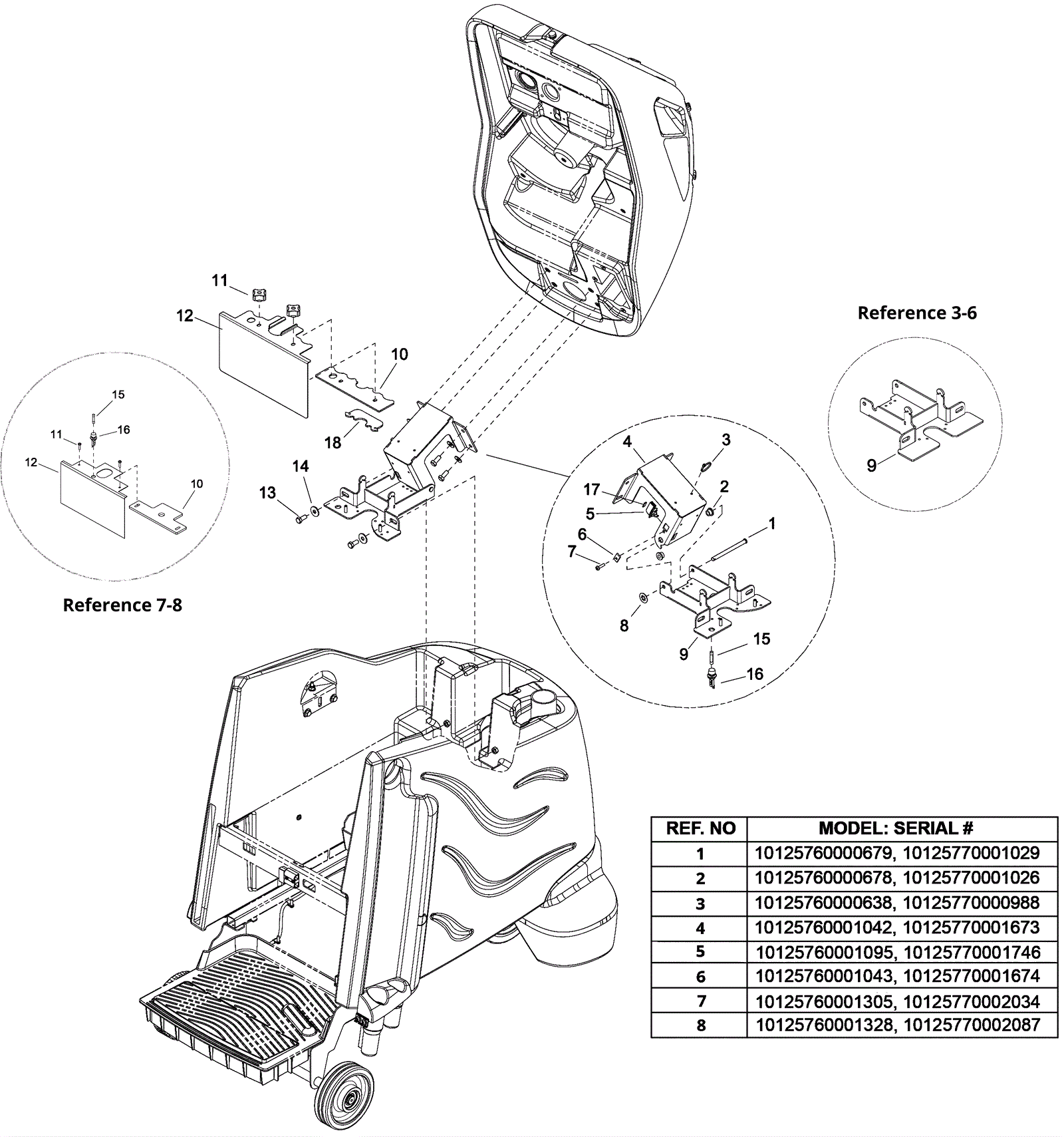

CHARIOT2 IVAC24ATV (Gray) Console Mounting Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-5955 Clevis pin (OBSOLETE) $8.09 1 usually ships 11-16 days
2 273-5628 Flanged bearing $5.89 2 ships same day
3 273-3820 11 inch cable tie $0.41 6 ships same day
4 173-5956 Upper hinge bracket $130.65 1 usually ships 11-16 days
5 273-5414 Interlock switch $20.96 1 ships same day
6 173-2576 Nut 10-24 tinnerman (OBSOLETE) $5.35 1 usually ships 11-16 days
7 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 1 ships same day
8 173-5957 Nut 5/16 push lock (OBSOLETE) $1.91 1 usually ships 11-16 days
9a 173-5958 Lower hinge bracket $113.59 1 (see reference number 3-6) usually ships 11-16 days
9b 273-9146 Lower hinge bracket $107.11 1 (see reference number 7-8) usually ships 11-16 days
10a 173-5951 Steering shaft gasket (OBSOLETE) $28.16 1 (see reference number 3-6) usually ships 11-16 days
10b 273-9147 Lower hinge gasket $7.12 1 (see reference number 7-8) usually ships 11-16 days
11b 273-9148 Carpet clamp knob (yellow) $20.83 2 (see reference number 7-8) usually ships 11-16 days
12a 273-6987 Cover plate $67.10 1 (see reference number 3-6) usually ships 1-5 days
12b 273-9149 Brake access plate $41.07 1 (see reference number 7-8) usually ships 11-16 days
13 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel $0.99 6 ships same day
14 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 ships same day
15 273-6988 3amp fuse $7.21 1 (side broom motor) usually ships 11-16 days
16 273-6884 Fuse holder $31.08 1 usually ships 11-16 days
17 273-4361 Gasket $2.76 1 usually ships 11-16 days
18 273-9150 Access panel gasket $18.48 1 (see reference number 7-8) usually ships 11-16 days
