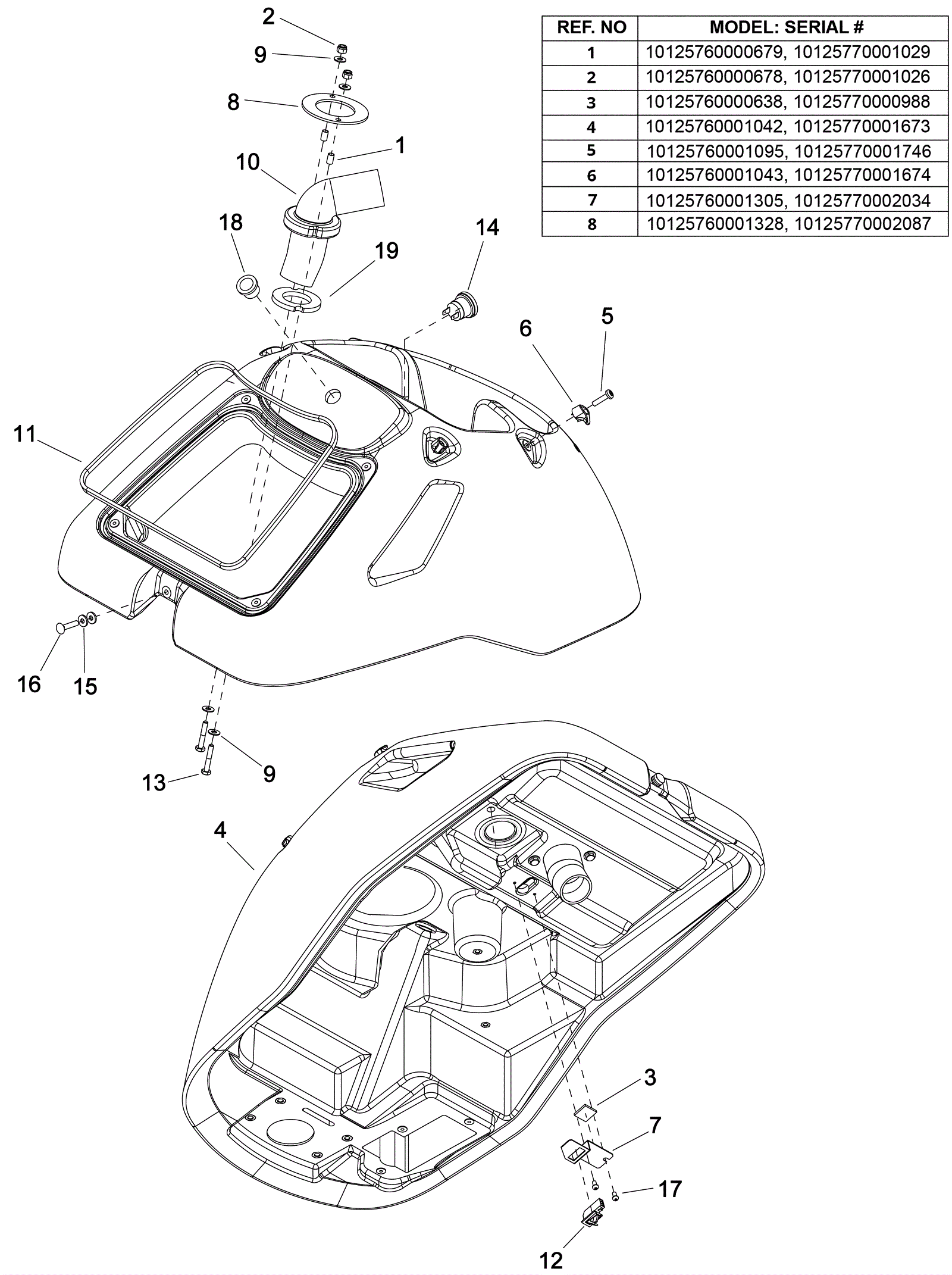

CHARIOT2 IVAC24ATV (Gray) Console Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-6981 Nylon spacer $3.96 2 usually ships 1-5 days
2 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
3 273-6982 Gasket $5.20 1 usually ships 7-19 days
4a 273-6983 Console $837.10 1 (see reference number 3 and 4) usually ships 1-5 days
4b 273-9145 Console $757.90 1 (see reference number 6) usually ships 7-19 days
5 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel $0.99 4 ships same day
6 273-5721 Strap hook $19.47 4 usually ships 7-19 days
7 273-6984 Switch bracket $35.20 1 usually ships 7-19 days
8 273-6985 Retainer plate $12.32 1 usually ships 1-5 days
9 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
10 273-6986 Vacuum bag inlet $22.99 1 usually ships 1-5 days
11 173-5968 Gasket $8.20 1 usually ships 1-5 days
12 273-5414 Interlock switch $19.58 1 ships same day
13 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel $1.28 2 ships same day
14 173-5602 Horn $147.40 1 usually ships 7-19 days
15 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
16 173-2580 Screw 1/4-20 x 1 1/4 carriage (OBSOLETE) $2.84 1 usually ships 7-19 days
17 173-3889 Screw 10 x 3/8 pan head hi/lo $1.58 2 usually ships 7-19 days
18 173-7161 Flanged bearing $15.07 1 usually ships 7-19 days
19 173-7224 Vacuum intake gasket $11.44 1 usually ships 7-19 days
