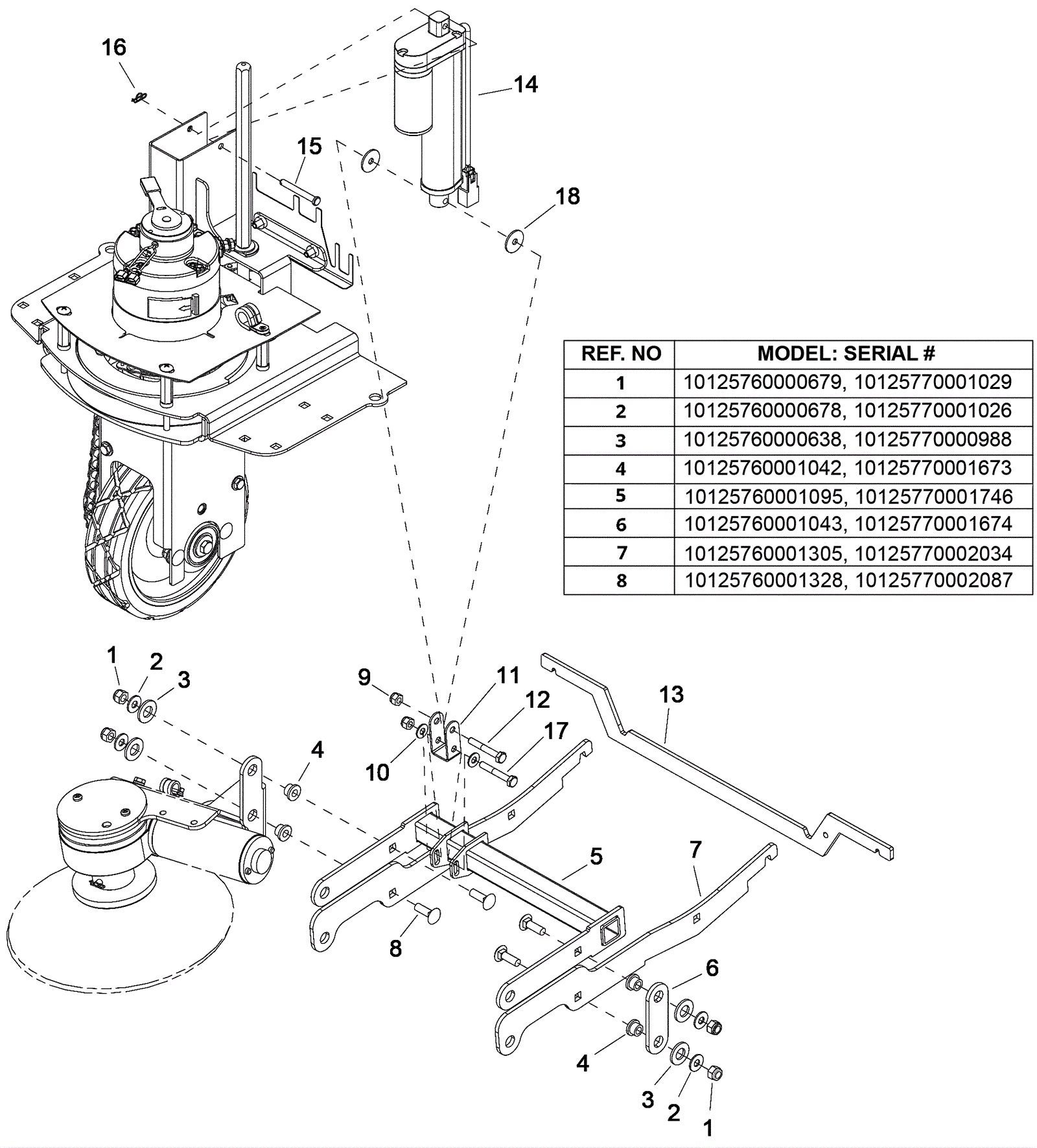

CHARIOT2 IVAC24ATV (Gray) Deck Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
2 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
3 173-2815 Washer 33/64 x 1 thrust $7.81 4 usually ships 7-19 days
4 273-5628 Flanged bearing $5.50 4 ships same day
5 273-6968 Deck lifter $297.00 1 usually ships 1-5 days
6 273-6969 Lift linkage plate $15.07 1 usually ships 1-5 days
7 273-6970 Deck lift arm $43.78 2 usually ships 1-5 days
8 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 4 ships same day
9 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
10 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
11 273-6971 Actuator link channel $35.97 1 usually ships 1-5 days
12 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 1 ships same day
13 273-6972 Spring mount bracket $44.33 1 usually ships 1-5 days
14 273-6973 36V actuator $502.80 1 usually ships 7-19 days
15 173-7261 Clevis pin $0.94 1 usually ships 7-19 days
16 173-1130 Cotter ring $2.42 1 usually ships 7-19 days
17 999-1020 Bolt 1/4-20 x 2 hex head hot dipped galvanized $2.57 1 usually ships 11-24 days
18 273-6616 Washer 1 x .264 x .07 thick black nylon $9.96 2 (see reference number 7 and 8) usually ships 7-19 days
