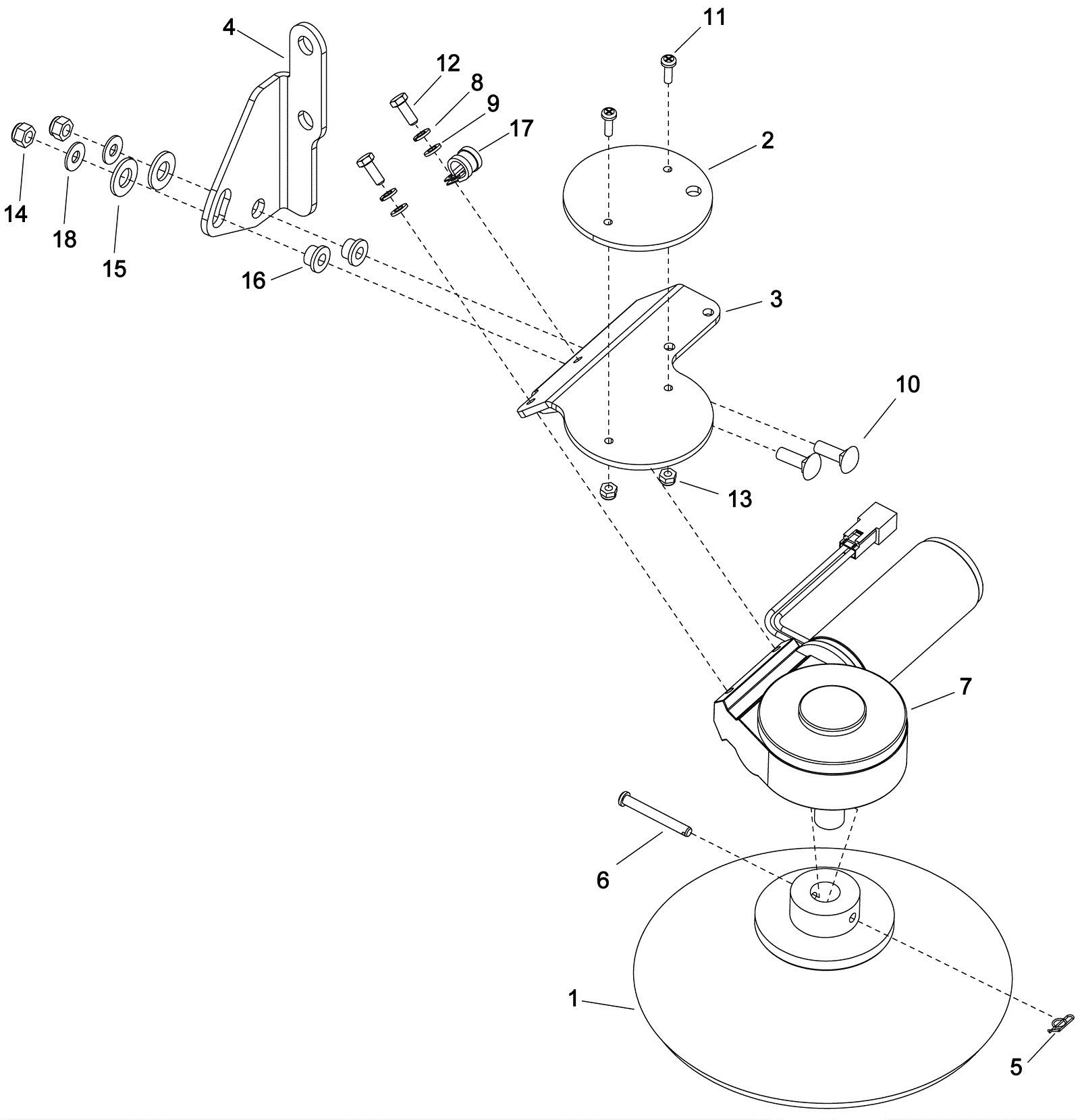

CHARIOT2 IVAC24ATV (Gray) Side Broom Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-7528 Side brush $50.73 1 ships same day
2 273-6965 Weight plate $11.77 1 usually ships 1-5 days
3 273-6966 Mounting bracket $65.45 1 usually ships 1-5 days
4 273-6967 Pivot bracket $42.35 1 usually ships 11-15 days
5 173-1130 Cotter ring $3.10 1 ships same day
6 173-7261 Clevis pin $2.20 1 usually ships 11-15 days
7 273-6206 36vdc motor $643.82 1 usually ships 11-15 days
8 999-0876 Washer M6 split lock plain finish $0.99 2 ships same day
9 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
10 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 2 ships same day
11 999-0713 Screw 10-32 x 5/8 pan head slotted stainless steel $0.99 2 ships same day
12 273-6205 Screw M6-1 x 16mm hex head cap screw $3.54 2 usually ships 1-5 days
13 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
14 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
15 173-3964 Thrust washer $6.89 2 ships same day
16 273-5628 Flanged bearing $5.89 2 usually ships 11-15 days
17 273-4014 Cable clamp 1/2 x 1/4 inch $5.53 1 usually ships 1-5 days
18 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
