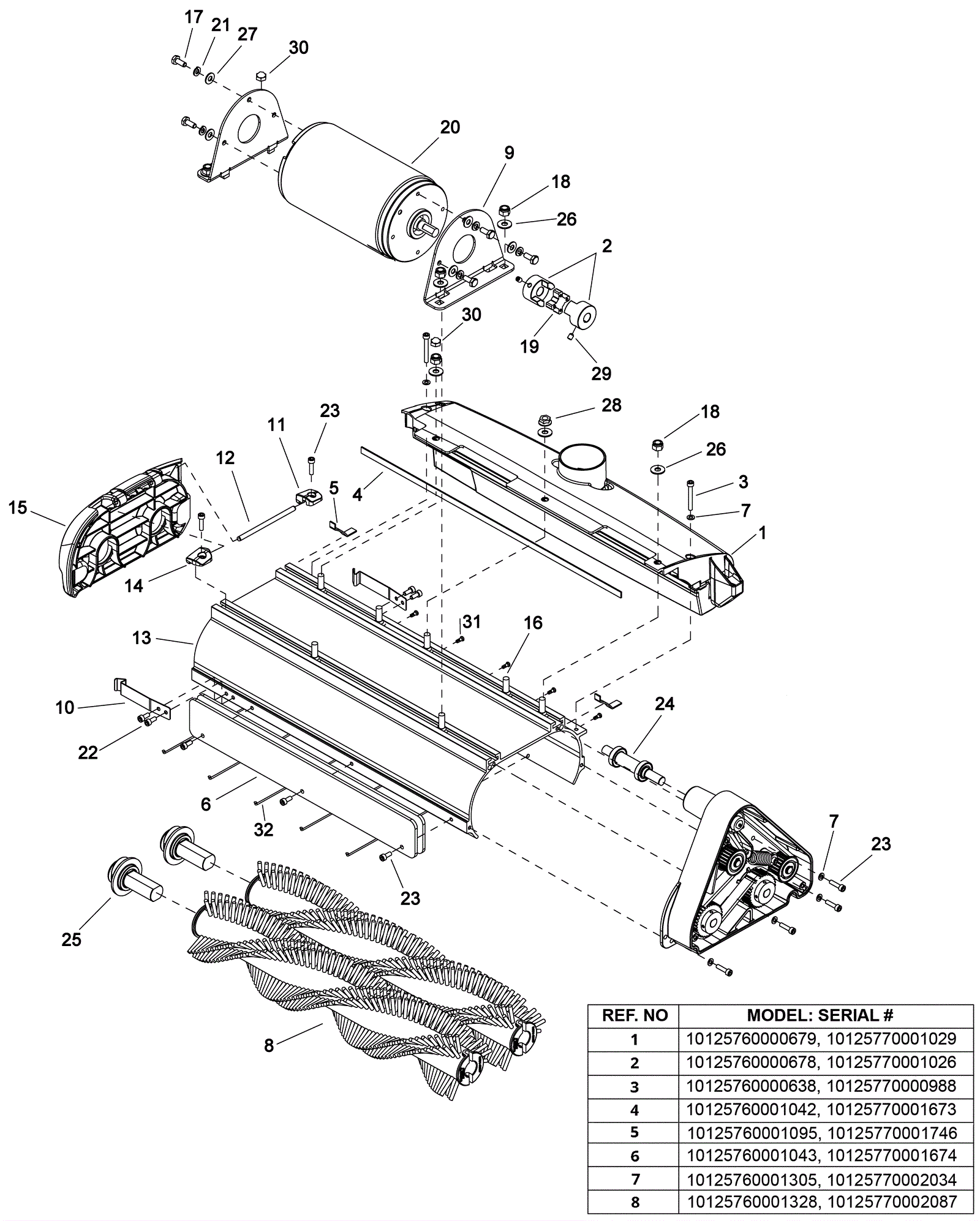

CHARIOT2 IVAC24ATV (Gray) Brush Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-6959 Debris tray $374.00 1 usually ships 11-15 days
2 273-2050 2 jaw coupler $9.01 2 (includes 29) usually ships 11-15 days
3 999-1677 Screw M5-.8 x 40mm socket head stainless steel $1.32 2 ships same day
4 273-0601 Gasket $3.89 1 usually ships 11-15 days
5 273-6546 Gasket $1.69 2 usually ships 11-15 days
6 273-6961 Counterbalance plate $45.32 2 usually ships 1-5 days
7 999-9100 Washer M5 flat stainless steel $5.83 6 ships same day
8a 273-6742 Cylindrical brush $157.72 2 usually ships 11-15 days
8b 273-6962 Scrubbing brush hard floor - CYLINDRICAL $123.59 2 usually ships 11-15 days
8c 273-6963 Scrubbing brush soft floor - CYLINDRICAL $97.69 2 usually ships 11-15 days
9 273-6548 Motor mounting bracket $38.06 2 usually ships 11-15 days
10 273-6549 Spring clip $46.02 2 ships same day
11 273-6550 Rear hinge cap $15.30 1 usually ships 11-15 days
12 273-6551 Dowel pin $27.54 1 ships same day
13 273-6964 Brush housing $508.46 1 usually ships 11-15 days
14 273-6553 Front hinge cap $16.13 1 usually ships 11-15 days
15 273-6554 Brush release door $44.37 1 ships same day
16 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 7 ships same day
17 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 6 ships same day
18 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 6 ships same day
19 273-5611 Spider coupler $104.75 1 usually ships 11-15 days
20a 173-1743 Brush motor $1,146.40 1 usually ships 11-15 days
20b 173-1576 Carbon brush (pkg of 4) $83.57 1 ships same day
21 999-0632 Washer 1/4 split lock stainless steel $0.99 6 ships same day
22 273-5734 Screw M5-.8 x 12mm socket head cap stainless steel $4.38 4 (qty 8 for Ref. No. 6) ships same day
23 273-5592 Screw M5-.8 x 20mm socket head cap stainless steel $5.43 5 (qty 4 for Ref. No. 6) ships same day
24 273-5588 Drive shaft assembly $143.59 1 usually ships 11-15 days
25 273-5587 Brush end cap shaft assembly $80.63 2 ships same day
26 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 7 ships same day
27 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 ships same day
28 173-2465 Nut 5/16 external snap (OBSOLETE) $0.99 1 usually ships 11-15 days
29 999-1413 Screw M6-1 x 8mm socket cup point set $0.99 2 ships same day
30 999-1458 Nut 5/16-18 acorn nickel plated $0.99 2 ships same day
31 273-6558 Guard nipple (OBSOLETE) $0.83 5 usually ships 11-15 days
32 273-6559 Guard rod (OBSOLETE) $4.18 5 usually ships 11-15 days
