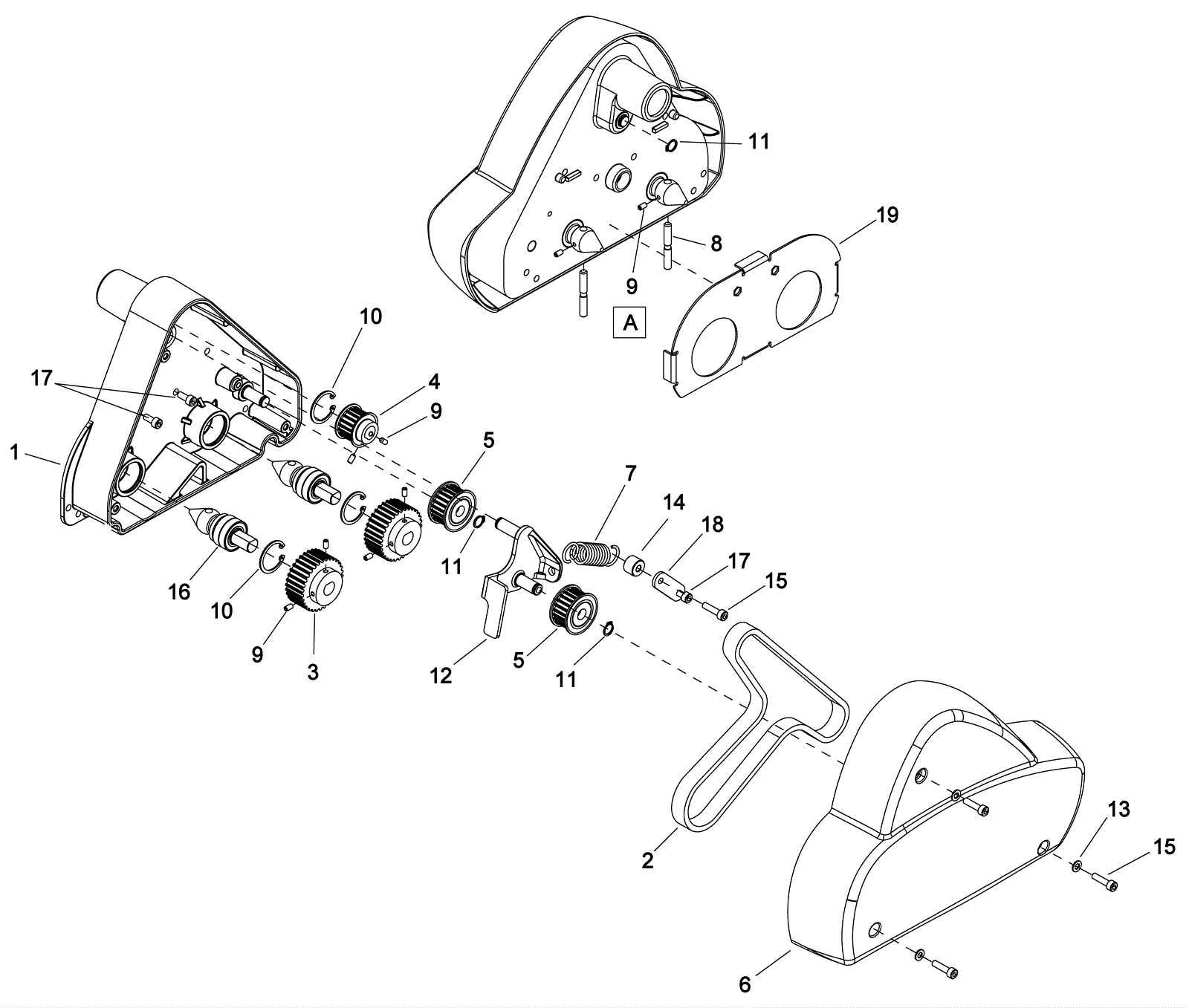

CHARIOT2 IVAC24ATV (Gray) Brush Deck Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-6537 Brush drive housing assembly $168.31 1 usually ships 11-15 days
2 173-7519 Belt $201.27 1 usually ships 11-15 days
3 273-6538 32 toothed pulley $103.58 2 usually ships 11-15 days
4 273-6539 18 toothed pulley $77.68 1 usually ships 11-15 days
5 273-6540 22 toothed pulley assembly $155.36 2 usually ships 11-15 days
6 273-6541 Drive housing cover $52.73 1 usually ships 11-15 days
7 273-5590 Tensioner spring $14.00 1 usually ships 11-15 days
8 273-5586 Brush drive shaft $9.19 2 usually ships 11-15 days
9 273-5518 Screw M4-.7 x 8mm set cup point $1.84 8 usually ships 11-15 days
10 173-4181 Snap ring $8.59 3 usually ships 11-15 days
11 173-8999 External snap ring $1.41 3 usually ships 11-15 days
12 273-5593 Tensioner arm bracket $47.31 1 usually ships 11-15 days
13 999-9100 Washer M5 flat stainless steel $5.83 3 ships same day
14 273-6543 Spacer (OBSOLETE) $20.35 1 usually ships 11-15 days
15 273-5592 Screw M5-.8 x 20mm socket head cap stainless steel $5.43 5 ships same day
16 273-5599 Brush drive shaft assembly $215.39 2 ships same day
17 273-5734 Screw M5-.8 x 12mm socket head cap stainless steel $4.38 3 ships same day
18 273-6542 Support plate $14.25 1 usually ships 11-15 days
19 273-6544 Brush guide plate $83.57 1 ships same day
