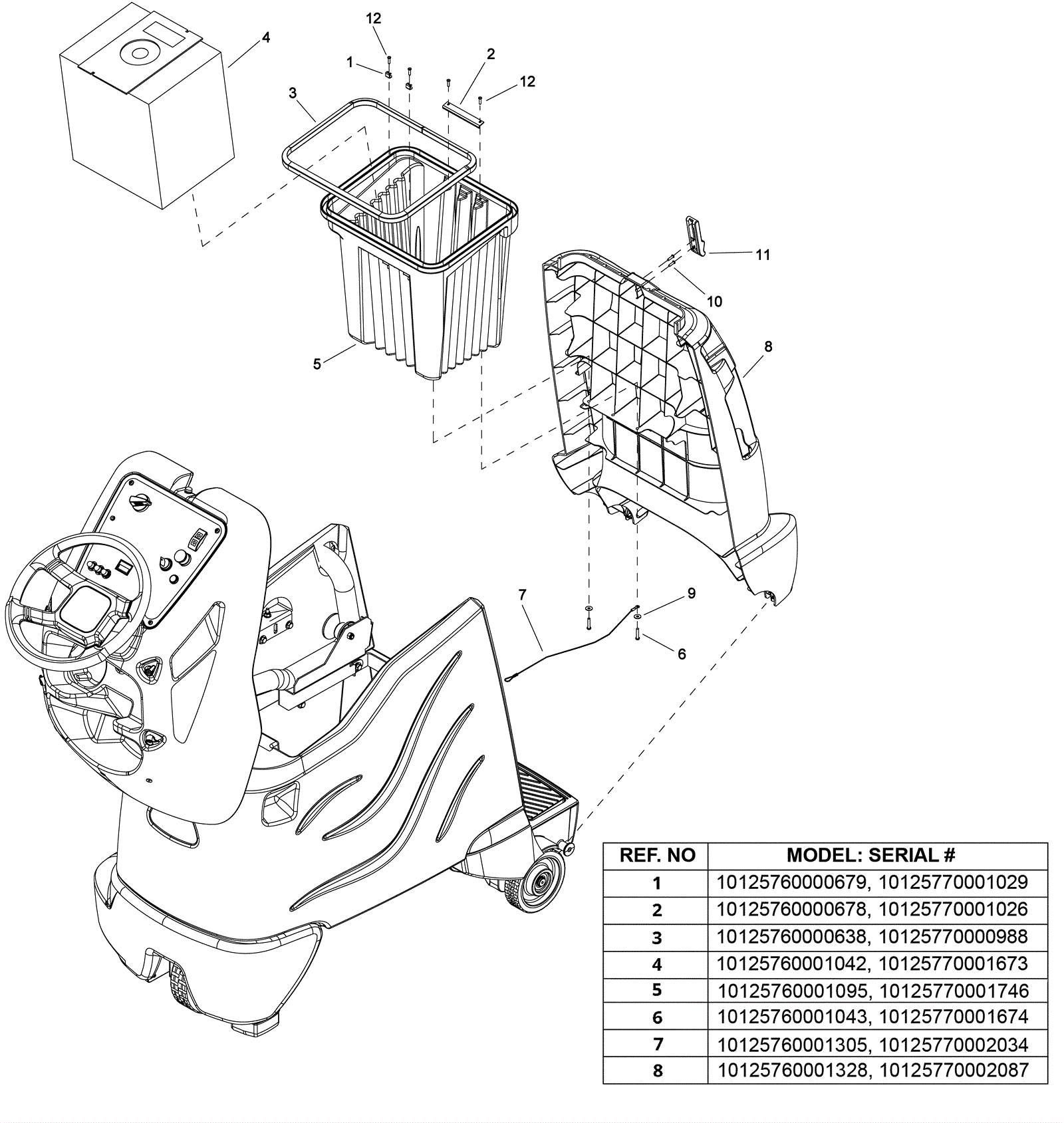

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
273-6953
|
Lower bag bracket |
$25.08
|
2 |
|
usually ships 7-19 days |
2 |
273-6954
|
Upper bag bracket |
$16.39
|
1 |
|
usually ships 7-19 days |
3 |
273-6955
|
Gasket |
$30.36
|
1 |
|
ships same day |
4a |
173-7513
|
Vacuum bag (pkg of 10) |
$128.70
|
1 |
(OEM) |
ships same day |
4b |
991-9143
|
Vacuum bag (pkg of 10) |
$22.27
|
1 |
(NON-OEM) |
ships same day |
5a |
273-6956
|
Bag housing |
$148.50
|
1 |
(see reference number 3 and 4) |
usually ships 7-19 days |
5b |
273-9143
|
Vac bag housing (black) |
$260.70
|
1 |
(see reference number 6) |
usually ships 7-19 days |
6 |
273-5415
|
Screw KA50 x 25mm stainless steel |
$4.84
|
2 |
|
ships same day |
7 |
173-7222
|
15 inch lanyard with loop and eye |
$33.66
|
1 |
|
ships same day |
8a |
273-6957
|
Back panel |
$251.94
|
1 |
(see reference number 3 and 4) |
usually ships 7-19 days |
8b |
273-9144
|
Back panel (black) |
$266.20
|
1 |
(see reference number 6) |
usually ships 7-19 days |
9 |
273-5591
|
Washer M5 flat stainless steel |
$1.82
|
2 |
|
usually ships 7-19 days |
10 |
173-7229
|
Screw KA40 x 16 oval head |
$3.94
|
2 |
|
usually ships 7-19 days |
11 |
173-8288
|
Latch |
$36.85
|
1 |
|
ships same day |
12 |
273-6619
|
Screw 6-19 x .5 pan head phillips zinc plated |
$0.99
|
4 |
|
usually ships 7-19 days |
